Sunmax RT-50D - Assembly Details; Lifting Assembly; Squeegee Assembly and Replacement

.

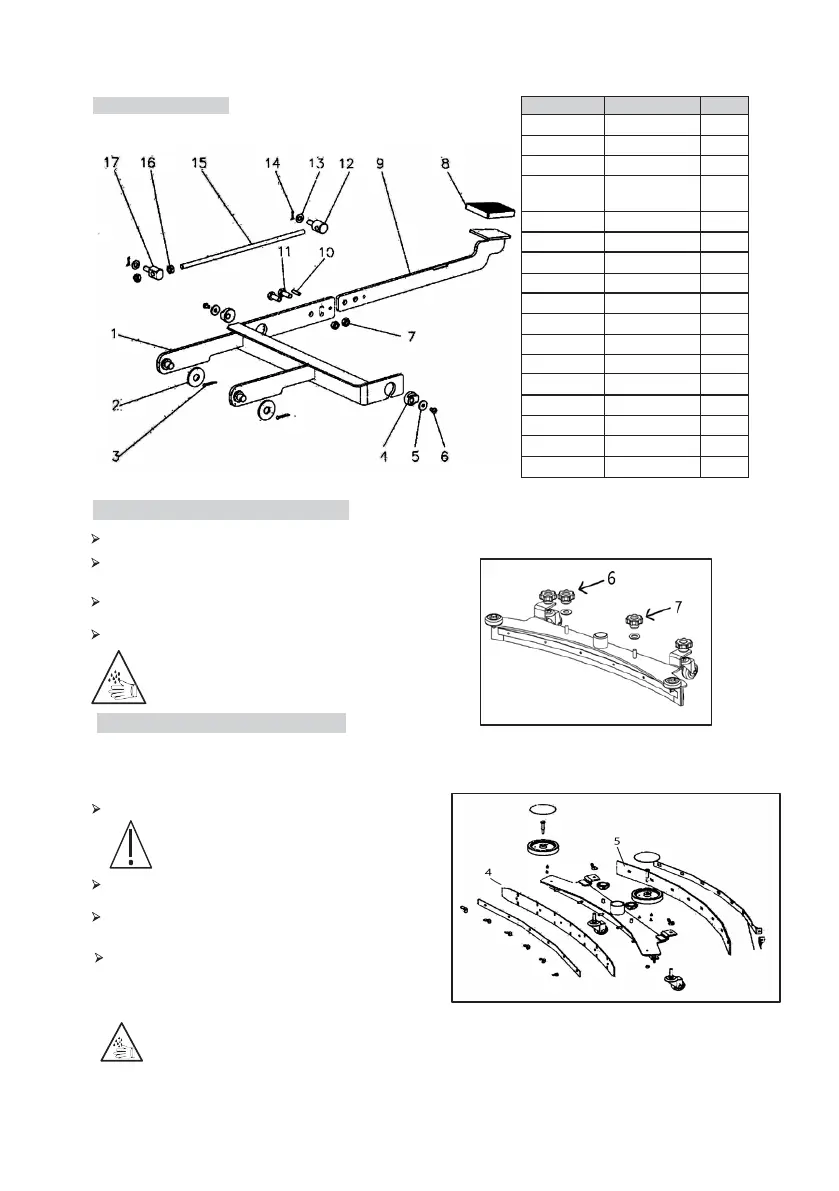

Lifting assembly
No. Description QTY
1
Lifting bar
1
2
Gasket
2
3
Pin
2
4
Eccentric
sleeve
2
5
Gasket
2
6
Screw
2
7
Nut
2
8
Panel cap
1
9
Panel
1
10
Spring pin
1
11
Bolt
2
12
Pin shaft
1
13
Gasket
1
14
Split pin
1
15
Bar
1
16
Nut
2
17
Pin shaft
1
Squeegee assembly
Check whether the main switch is at “O” position.
Warning: during maintenance, please power off the
machine, and remove the key.
Select the butterfly nut in the horizontal position.
Remove the rubber fastener nuts (6, 7).
Remove rubber (4), and replace it.
Warning: pl
ease wear gloves to avoid
direct contact with dangerous liquid.
Replace squeegee rubber strip
If the rear wheel of squeegee is worn, and cannot dry the floor, one of the four edges of the rubber is broken,
please replace. In such case, please remove and replace the squeegee in the following steps:
Loosen nut (6), disconnect squeegee.
Warning: during maintenance, please
power off the machine, and remove the key.
Select the butterfly nut in the horizontal position
Remove rubber (5), and replace it.
Adjust squeegee height according to the rubber
(please refer to “Adjust Squeegee Supporting Part Height”)
Warning: please wear gloves to avoid direct contact with dangerous liquid.
