Sunny SF-E3912 - Swing Bar and Pedal Assembly

7
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

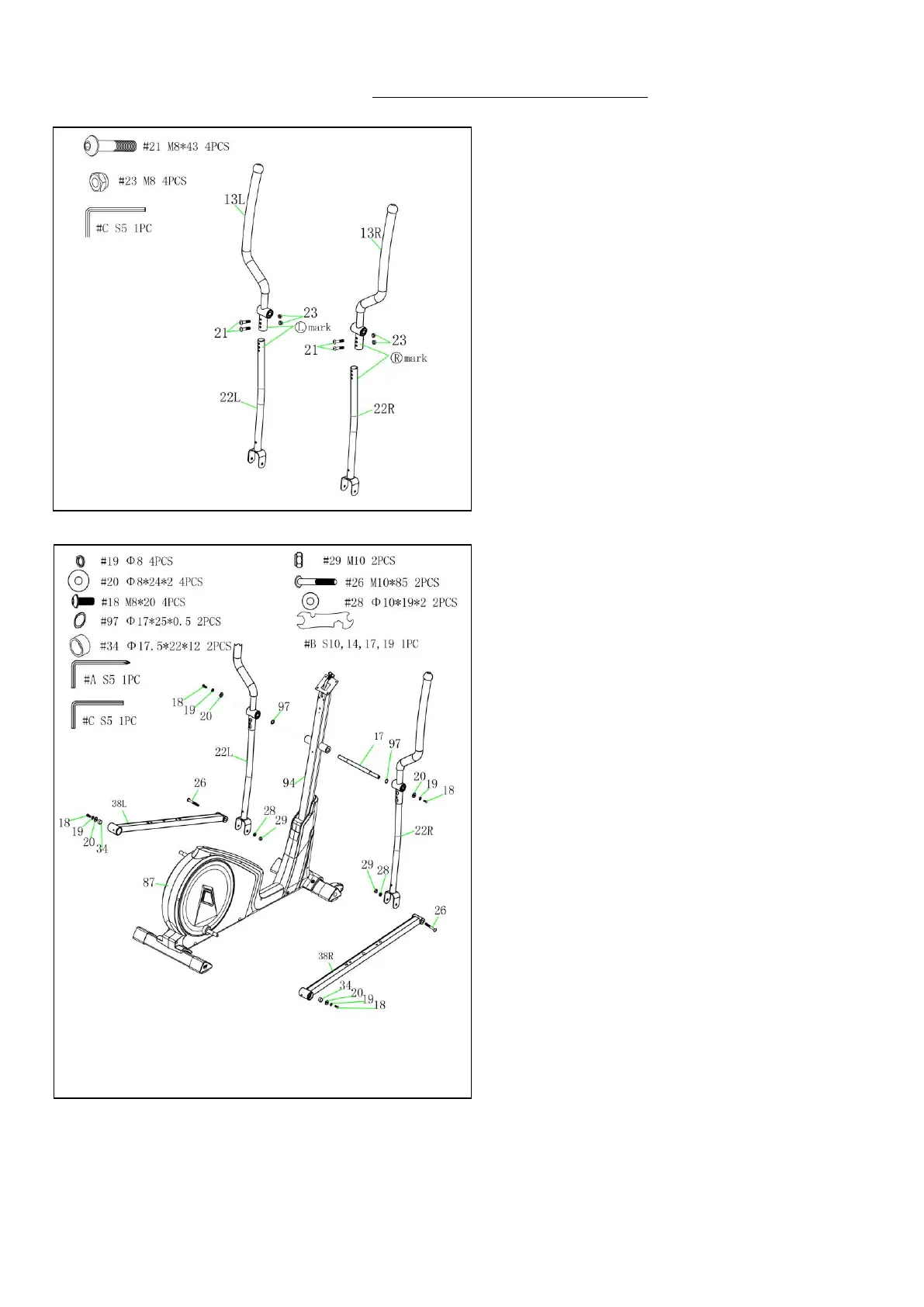

STEP 3:
Attach the Left Upper Swing Bars (No. 13L)
to Left Lower Swing Bars (No. 22L) with 2
Bolts (No. 21) and 2 Nylon Nuts (No. 23).
Tighten and secure with Allen Wrench (No.
C).
Note: The L/R mark on Left & Right Upper
Swing Bars (No. 13L & No. 13R) and Left &
Right Lower Swing Bars (No. 22L & No.
22R) should always be assembled to the front
direction.
Please repeat this assembly step to the Right
side.
STEP 4:
Remove 2 Wave Washers (No. 97), 2
Washers (No. 20), 2 Spring Washers (No.
19), and 2 Bolts (No. 18) from the Axis (No.
17).
Attach the Left & Right Lower Swing Bars
(No. 22L & No. 22R) and the Axis (No. 17) to
the Handlebar Post (No. 94) with 2 Wave
Washers (No. 97), 2 Washers (No. 20), 2
Spring Washers (No. 19), and 2 Bolts (No.
18) that were removed. Tighten and secure
with Allen Wrench (No. A & No. C).
Attach the Left & Right Lower Swing Bars
(No. 22L & No. 22R) to the Left & Right
Pedal Support Bars (No. 38L & No. 38R)
with 2 Nylon Nuts (No. 29), 2 Washers (No.
28), and 2 Bolts (No. 26). Tighten and secure
with Allen Wrench (No. A) and Spanner (No.
B).
Note: For the Left & Right Pedal Support
Bars (No. 38L & No. 38R), the side with more
holes needs to face up to attach Left & Right
Lower Swing Bars (No. 22L & No. 22R).
Attach the Left & Right Pedal Support Bars
(No. 38L & No. 38R) to the Main Frame (No.
87) with 2 Washers (No. 20), 2 Spring
Washers (No. 19), 2 Bolts (No. 18), and 2
Tubes (No. 34). Tighten and secure with
Allen Wrench (No. C).
