Sunny SF-E3912 - Final Components Installation

8
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-
907-8669).

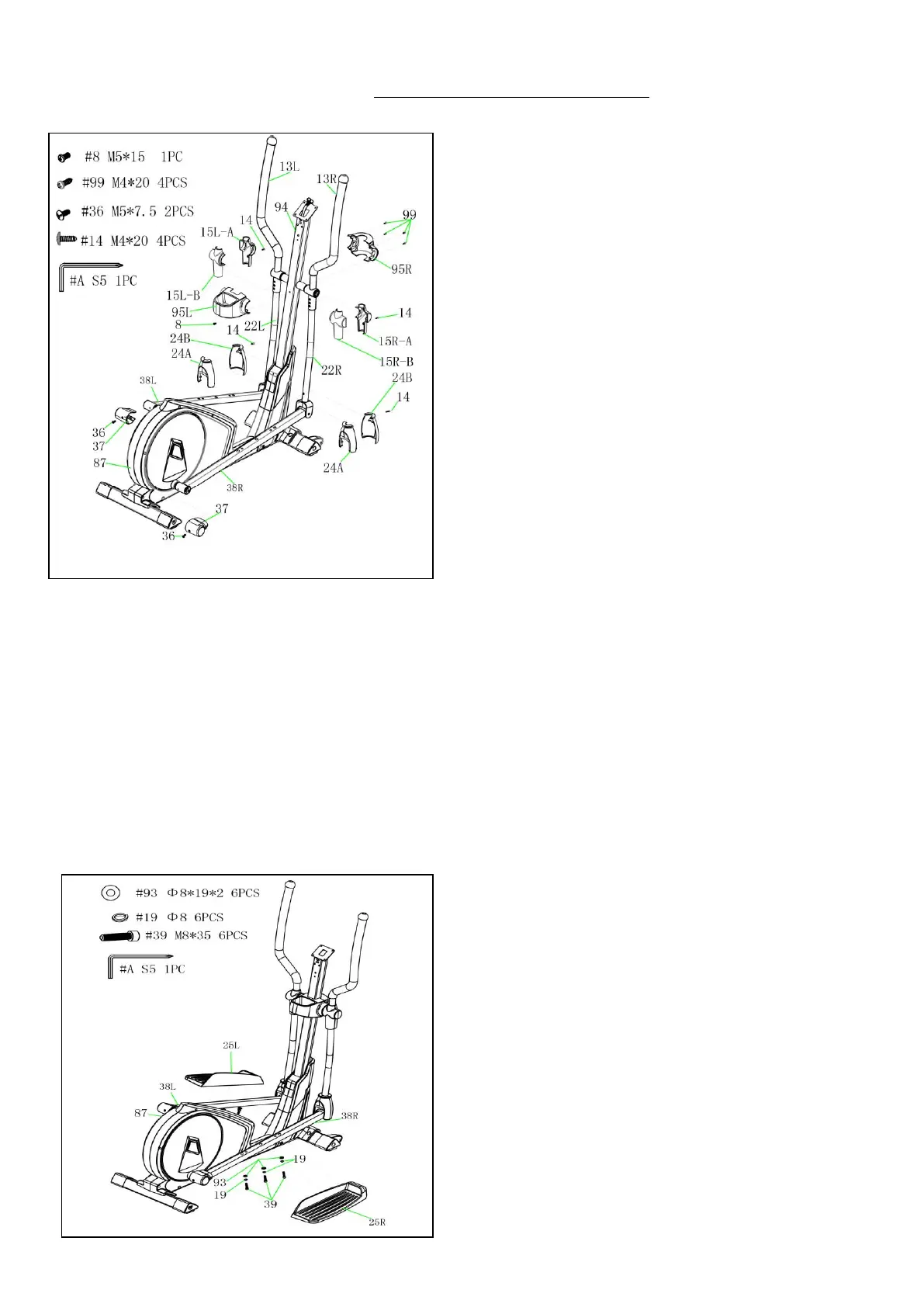

STEP 5:
Remove 2 Screws (No. 36) from the Left & Right
Pedal Support Bars (No. 38L & No. 38R).
Attach the M Plastic Cover (No. 37) to the Left &
Right Pedal Support Bars (No. 38L & No. 38R)
with 2 Screws (No. 36) that were removed. Tighten
and secure with Allen Wrench (No. A).
Remove 2 Screws (No. 14) from the Lower Swing
Plastic Covers (No. 24A & No. 24B).
Attach the Lower Swing Plastic Covers (No. 24A
& No. 24B) to the Left & Right Lower Swing Bars
(No. 22L & No. 22R) with 2 Screws (No. 14) that
were removed. Tighten and secure with Allen
Wrench (No. A).
Remove 2 Screws (No. 14) from the Left & Right
Upper Central Shaft Plastic Covers (No. 15L-A/B
& No. 15R-A/B).
Attach the Left & Right Upper Central Shaft
Plastic Covers (No.15L-A/B & No. 15R-A/B) to the
Left & Right Upper Swing Bars (No. 13L & No.
13R) with 2 Screws (No. 14) that were removed.
Tighten and secure with Allen Wrench (No. A).
Remove 4 Self-tapping Screws (No. 99) from the
Left & Right Axis Plastic Covers (No. 95L & No.
95R). Remove 1 Screw (No. 8) from the Handlebar
Post (No. 94).
Attach the Left & Right Axis Plastic Covers (No.
95L & No. 95R) to the Handlebar Post (No. 94) by
using 4 Self-tapping Screws (No. 99) and 1 Screw
(No. 8) that were removed. Tighten and secure with
Allen Wrench (No. A).
STEP 6:
Attach the Right Pedal (No. 25R) to Right Pedal
Support Bar (No. 38R) using 3 Washers (No.
93), 3 Spring Washers (No. 19), and 3 Screws
(No. 39). Tighten and secure with Allen Wrench
(No. A).
Please repeat this assembly step to the Left side.
