SUNON UP 1 - Assembly: Leg to Foot Connection; Attaching Legs to Base Feet

A
M6x14
(x4)
5
5
Page 9 of 23
A
A
A
A
1
1
2
4
R
L

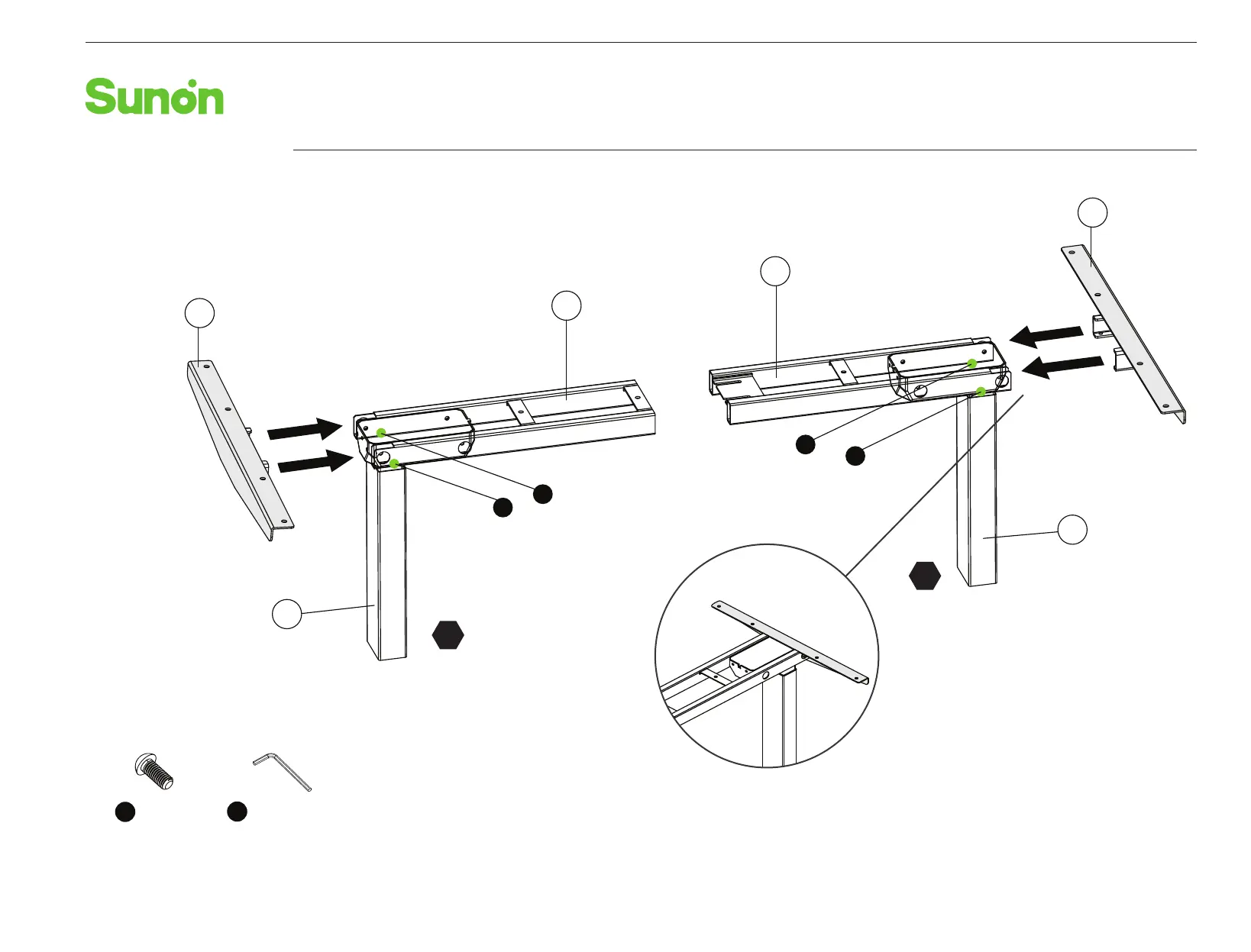

1. Align the mounting bars on the Side Brackets with the mounting holes on the Assembly Frames, then
install the Side Brackets on the Assembly Frames. The screw holes on the Side Brackets should align
with the screw holes on the Assembly Frames.
2. Fasten the 4 M6x14 hex screws with M4 Allen Wrench.
H
M4 Allen
Wrench
(x1)
