SUNON UP 1 - Assembly: Coiled Tube; Attaching Cable Management Tube

C
ST5x20
(Optional)
(x4)
B
B
B
M6x10
(x4)
Page 16 of 23
1
1

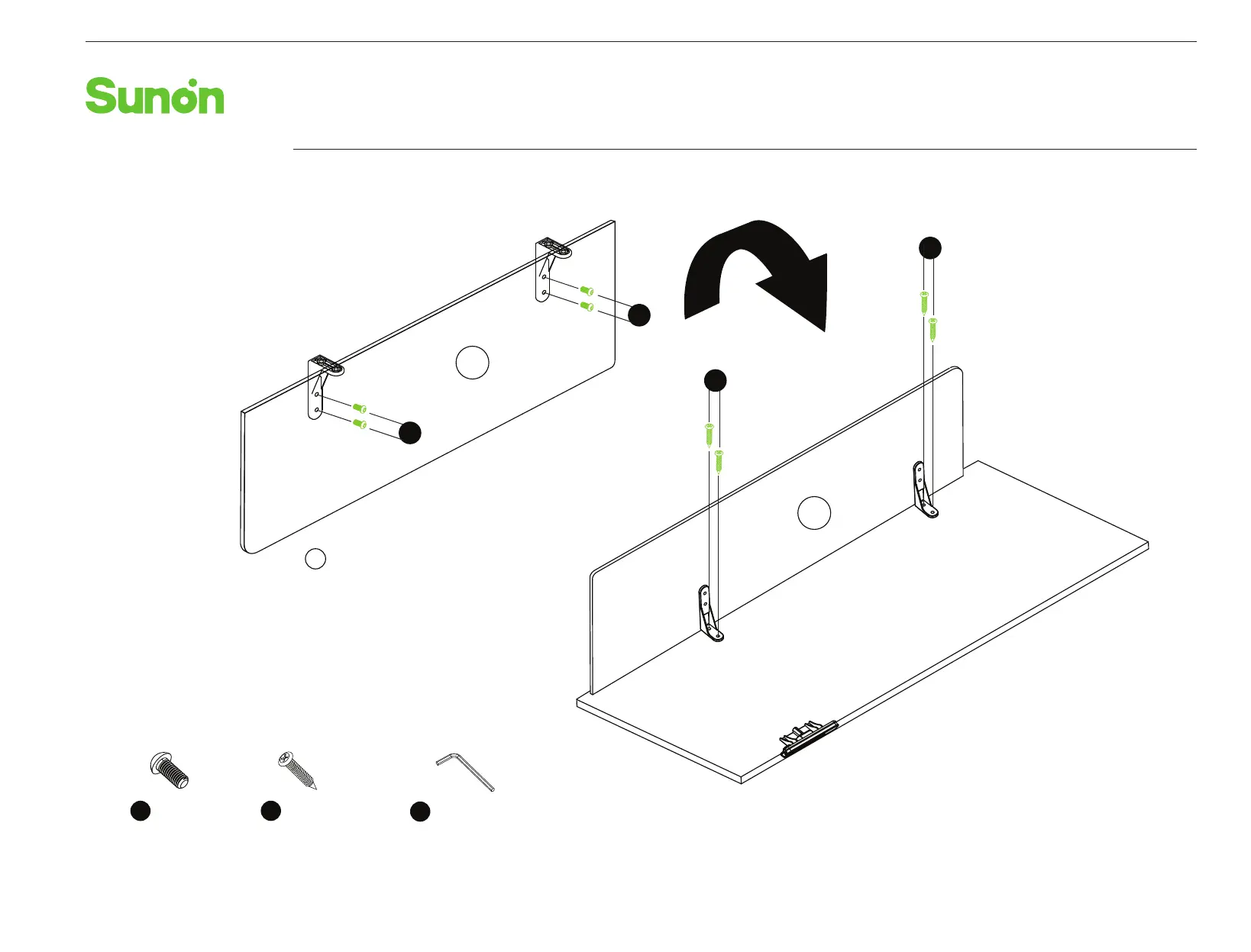

1. Install the screen clamps on the Modesty Panel and make sure the screw holes are properly aligned,
then fasten the clamps with 4 M6x10 hex screws.
2. Install the Modesty Panel to the Desktop Panel by the clamps. Make sure the screw holes are properly
aligned, then fasten the clamps with 4 ST5x20 self-tapping screws.
C
C
1 Modesty Panel
(Optional)
(x1)
H
M4 Allen
Wrench
(x1)
