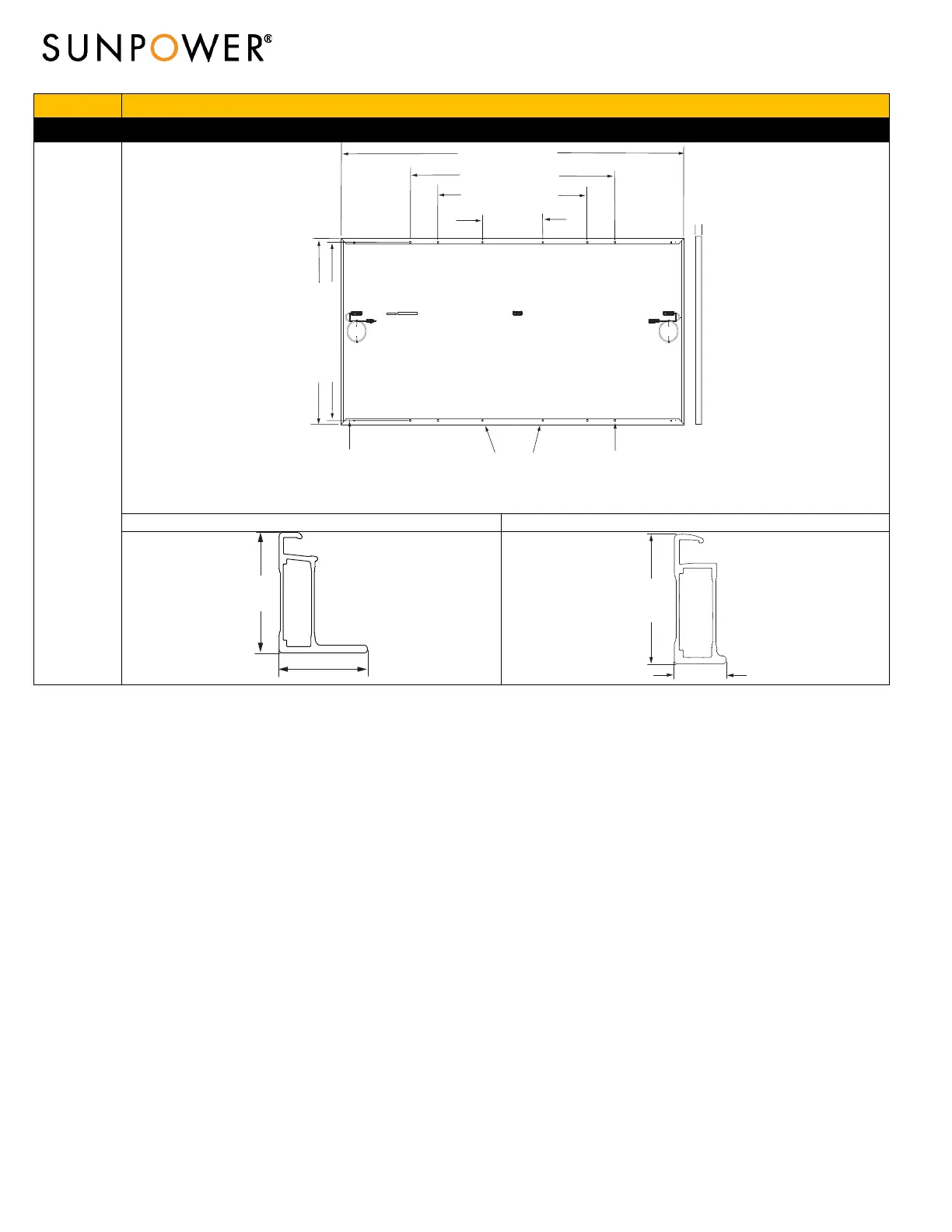

Platform
Modulemountingandgroundholedetail
FORGEN4.3MODULES(P5UPP)
Commercial
Modules
1092 mm [42.99in]
1043 mm [41.06in]
400 mm
[15.75in]
1100 mm [43.31in]
1400 mm[55.12in]
2384 mm [93.86in]
4X Ø4.2mm [0.17in]
Ground Holes
8X 14mm [0.55in] (L)
x 9mm [0.35in] (W)
R4.5mm [0.18in]
SLOTS
4X 10mm [0.39in] (L)
x 7mm [0.27in] (W)
R3.5mm [0.14in]
Mounting Holes
35 mm [1.38in]

SIDEFRAMEPROFILE ENDFRAMEPROFILE
35mm
35 mm

35 mm
16 mm

*See Product Rating Label for Maximum System Voltage.
