SunPower SPR-E Series User Manual

SUNPOWER CORPORATION
Safety and Installation Instructions - Document 001-15497 Rev U
©September 2020 SunPower Corporation. All rights reserved. Specifications included in this manual are subject to change without notice.

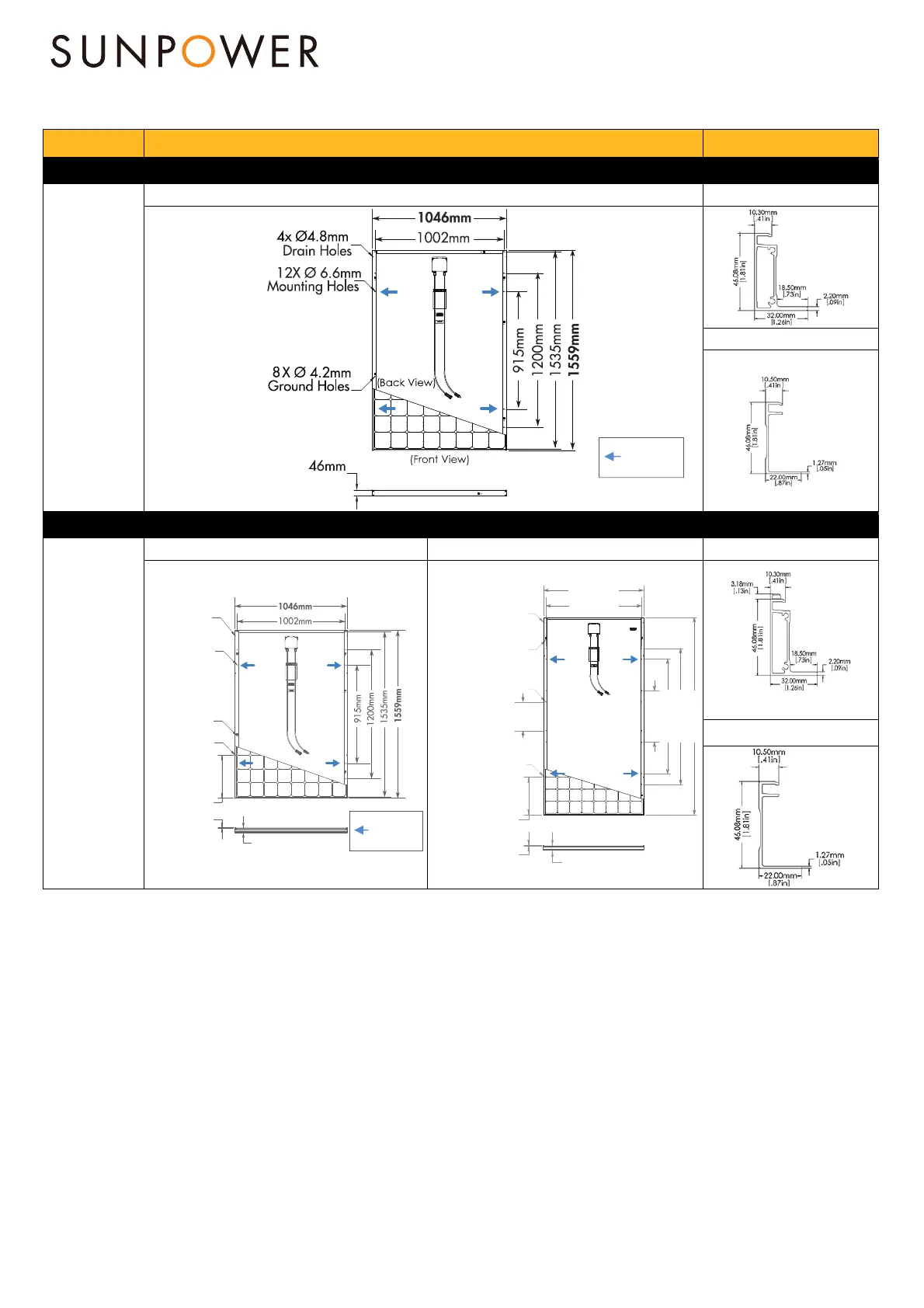

Table 2: Module Frame Details
Platform Module mounting and ground hole detail Frame Profile
RESIDENTIAL G3 FRAME ONLY
Residential
Modules
96 CELL MODULE FRAME DETAIL SIDE FRAME PROFILE
END FRAME PROFILE
FOR COMMERCIAL (SILVER FRAME) MODULES ONLY, INCLUDES STACKING PINS
Commercial
Modules
96 CELL COMMERCIAL MODULE 128 CELL COMMERCIAL MODULE SIDE FRAME PROFILE
With Stacking Pins
END FRAME PROFILE
4X Ø 4.8 mm
Drain Holes
12X Ø 6.6 mm
Mounting Holes
6X Ø 4.2 mm
Ground Holes
4X Ø 6.10 mm
Stackings Pins
3.2 mm
398 mm
46 mm
(Back View)
(Front View)
Stacking Pins
4X Ø6.10 mm
300 mm
20X Ø6.8 mm
Mounting Holes
4X Ø4.2 mm
Ground Holes
4X Ø4.8 mm
Drain Holes
398 mm
3,2 mm
46 mm
(Front View)
(Back View)
1046 mm
1002 mm
2067 mm
1200 mm 1423 mm
539 mm
Method 1:
Frame Hole
Locations
Method 1:
Frame Hole
Locations

SunPower SPR-E Series Specifications

General

Brand	SunPower
Model	SPR-E Series
Category	Solar panel
Language	English
