SunPower SPR-P19-395-COM-MLSD User Manual

SUNPOWER CORPORATION
Safety and Installation Instructions - Document 001-14158 Rev AG
© 2020 SunPower Corporation. All rights reserved. Specifications included in this manual are subject to change without notice. Page | 9
Platform

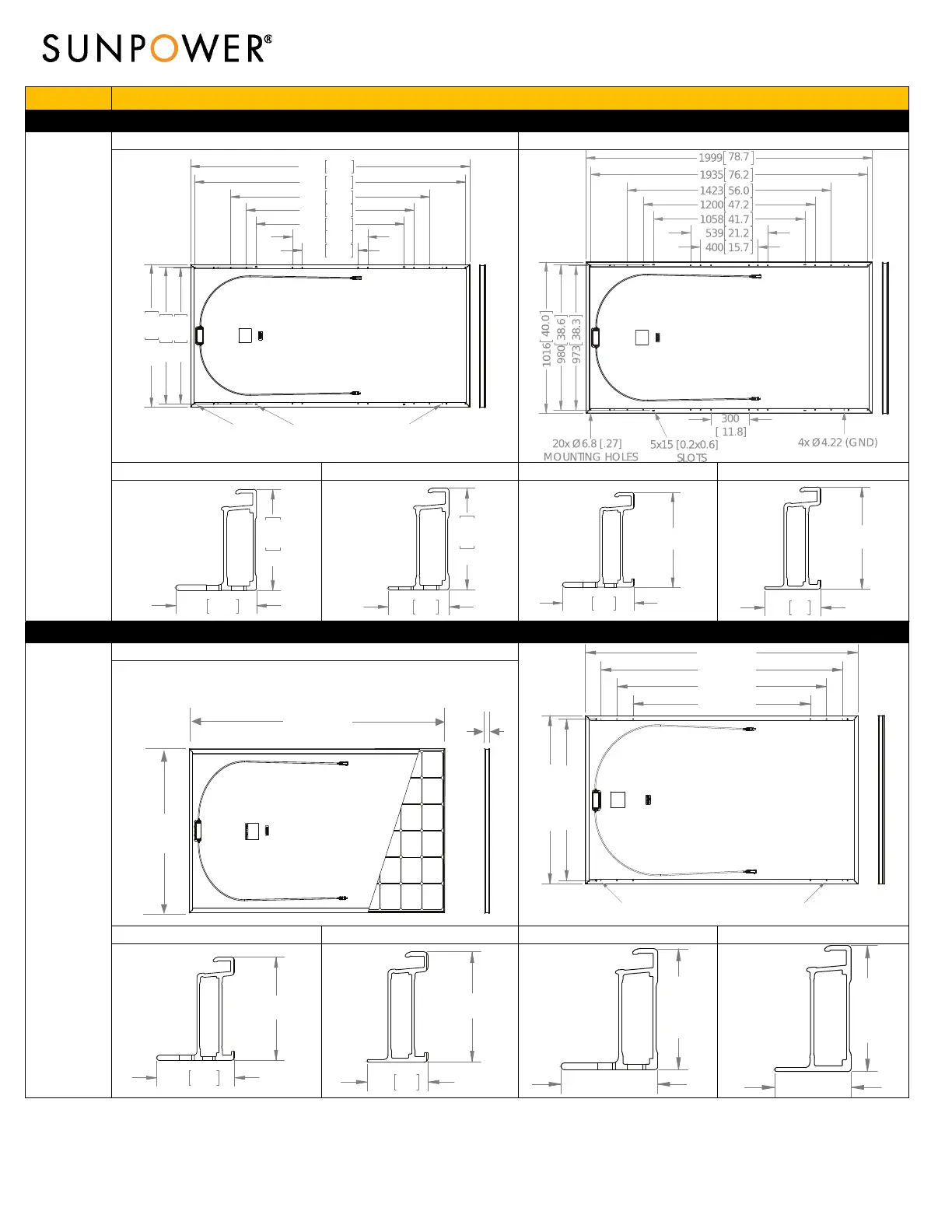

Module mounting and ground hole detail
FOR A-SERIES MODULES
Commercial
Modules
Gen 4.2 FRAME MODULE (72-CELL) Gen 5.1 FRAME MODULE (72-CELL)
1935 76.2
1423 56.0
1200 47.2
539 21.2
400 15.7
973 38.3 980 38.6
1058 41.7
1999
78.7
1016
40.0
20x Ø6.8 [.27]
MOUNTING HOLES
4x Ø4.22 (GND)
5x15 [0.2x0.6]
SLOTS
SIDE FRAME PROFILE END FRAME PROFILE SIDE FRAME PROFILE END FRAME PROFILE
40 1.57
32 1.26
40 1.57
24 .94
30 1.2
40 [1.57]
22 .9
40 [1.57]
FOR A-SERIES MODULES GEN 4.2 MODULES (104 cell)
Residential
and
Commercial
Modules
Gen 5.2 FRAME MODULE (66-CELL)
4x Ø 4.2 mm
Ground Holes
8x Ø 6.8 mm
Mounting Holes
1690 mm
1500 mm
1300 mm
1100 mm
1046 mm
1002 mm
[40 mm]
1.57 in
[1835 mm]
72.2 in
[1016 mm]
40.0 in
SIDE FRAME PROFILE END FRAME PROFILE SIDE FRAME PROFILE END FRAME PROFILE
32 1.26
40 [1.57]
24 .94
40 [1.57]
32 mm
40 mm
24 mm
40 mm
*See Product Rating Label for Maximum System Voltage.
