SUNPRO Retractable Awning - Page 10

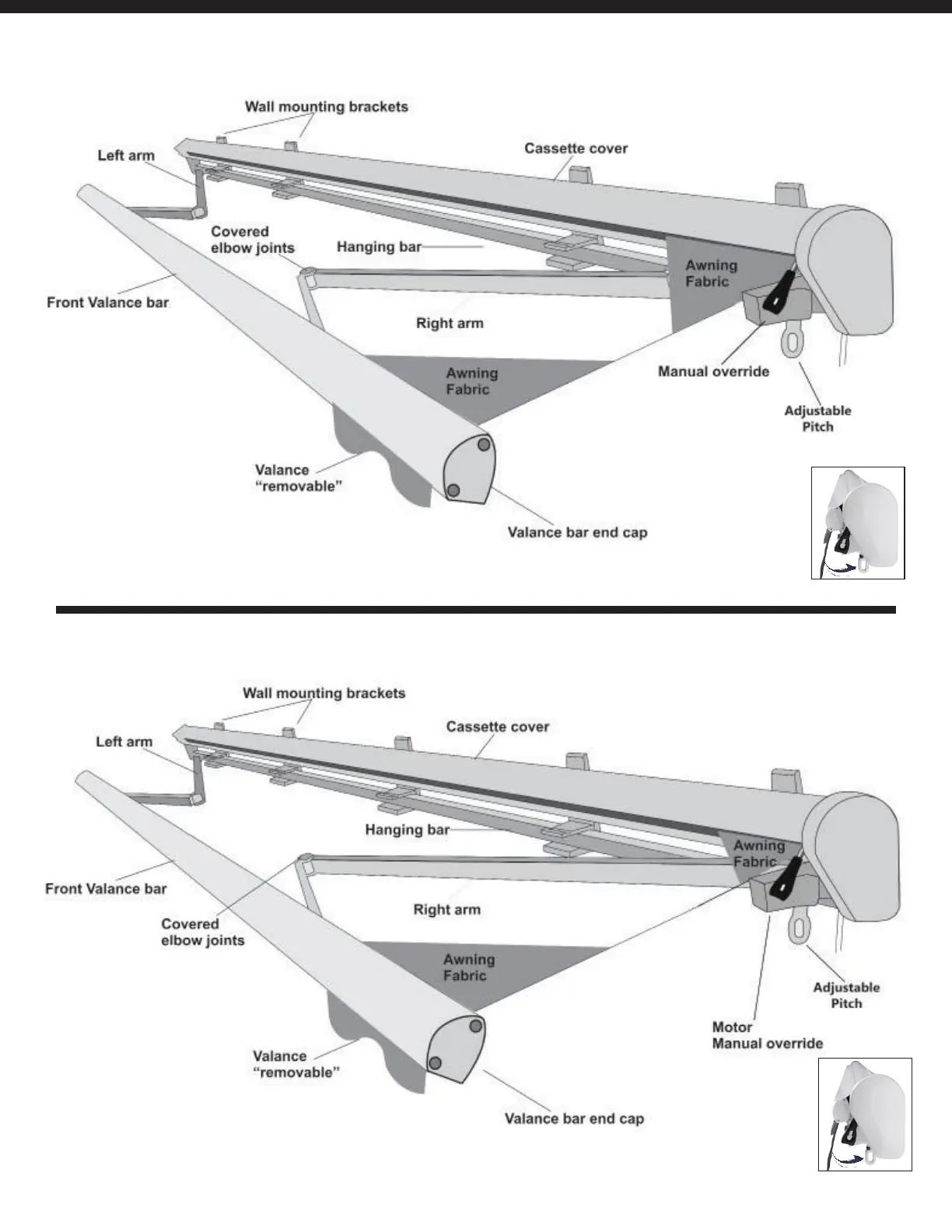

Bracket Locations for 16’ Awning
10
Bracket Locations for 20’ Awning
(A)
(B)
(D)
(E)
(A)
(B)
(C)
(D)
(E)
Image of shoulder gear with EZ-
Adjustable Pitch.
Do not adjust more than 20 degrees
up or down. Never adjust with
awning out more than 4 feet
Image of shoulder gear with EZ-
Adjustable Pitch.
Do not adjust more than 20 degrees
up or down. Never adjust with
awning out more than 4 feet
