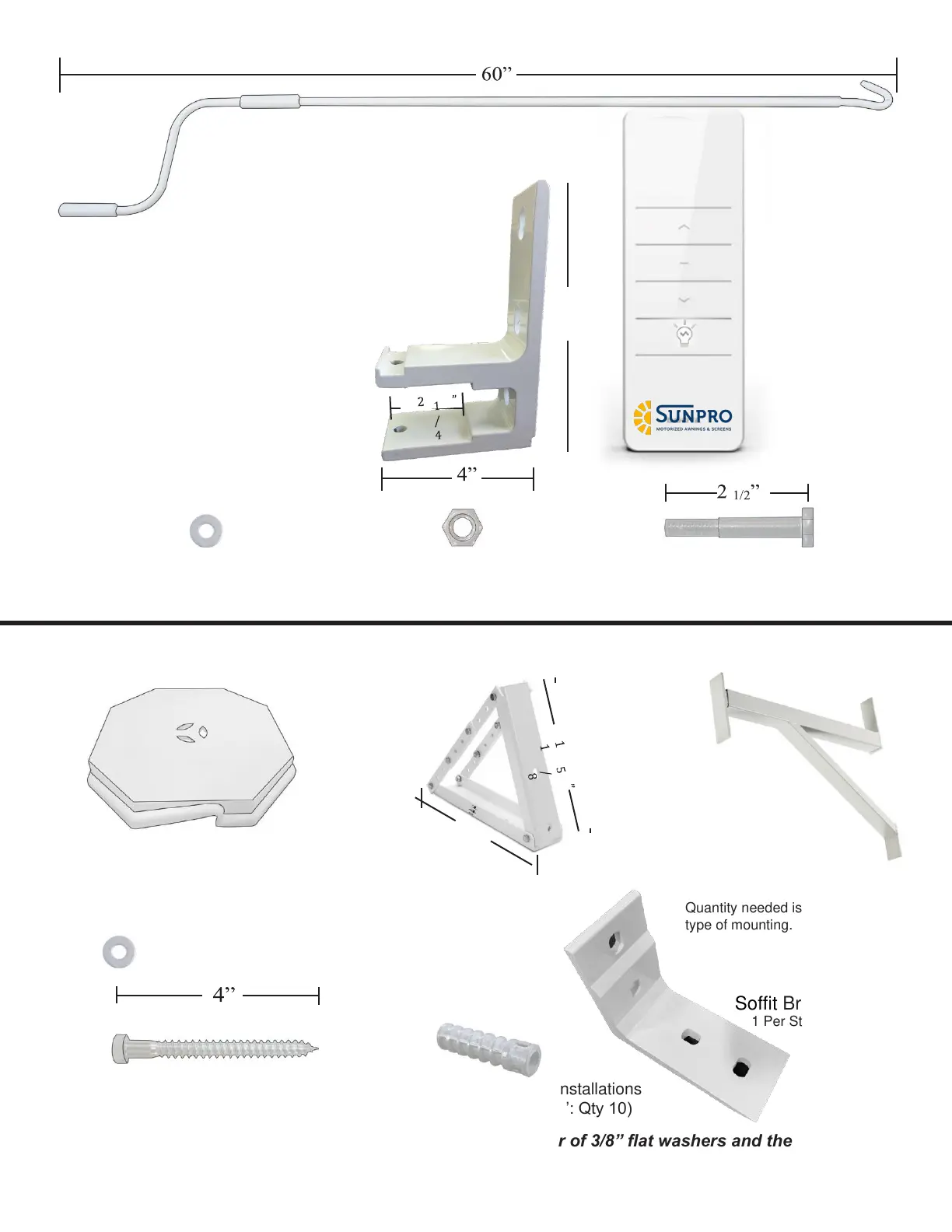

SUNPRO Retractable Awning - Installation Parts Overview; Standard Included Parts; Optional Parts

5
Manual Crank Wand
Wall Brackets
12' = Qty 3
16' = Qty 4
20' = Qty 5
In
Out
3/8"x 4" Lag Screw
(12’: Qty 6) (16’: Qty 8) (20’: Qty 10)
Standard Wall
Bracket
Remote Holder
with Hardware
Remote
3/8" Flat Washer
(12’: Qty 6) (16’: Qty 8) (20’: Qty 10)
Soffit Bracket
1 Per Standard
Bracket
STANDARD INSTALLATION PARTS INCLUDED
5/16" Flat Washer
5/16" Retaining Nut
5/16" x 2 1/2" Retaining Hex Bolt
(12’: Qty 3) (16’: Qty 4) (20’: Qty 5)
OPTIONAL INSTALLATION PARTS
Siding Plate Bracket
Color match your siding
Roof Bracket
10” = Qty 2
12’ = Qty 3
16’ = Qty 4
20’ = Qty 5
Bay Bracket
(3 sizes)
12”-17”
17”-23”
23”-29”
Quantity needed is based on
type of mounting.
5/8” Lead Anchor for Brick installations
(12’: Qty 6) (16’: Qty 8) (20’: Qty 10)
Note: Roof mount awnings will have twice the number of 3/8” flat washers and the same
number of 2 inch through bolts with matching nuts as lag screws supplied
6”
Out Button
Stop Button
In Button
Light Button
