4 SOLAR WATER PUMPING SYSTEM

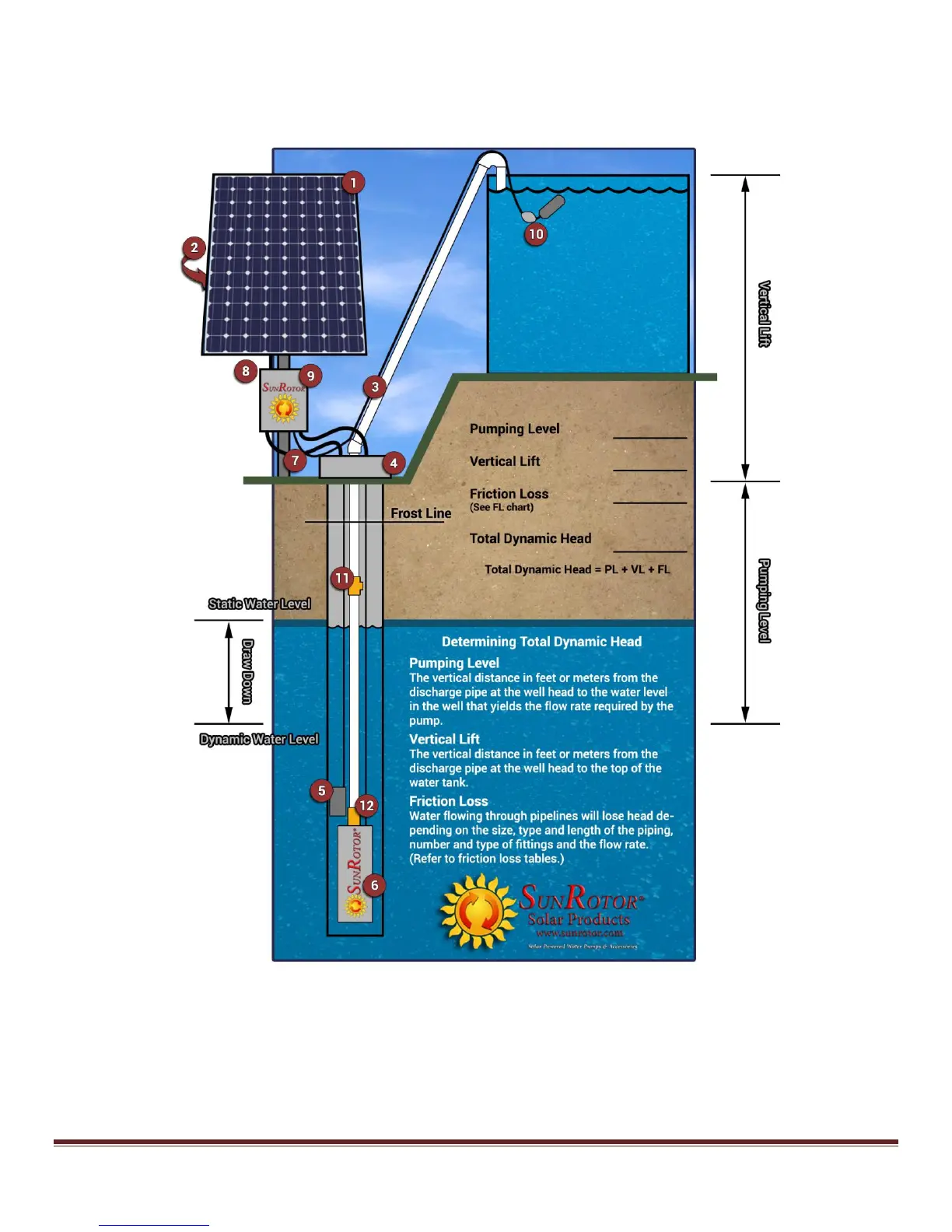

FIGURE 4-1 SOLAR PUMP DIAGRAM
1. PV Panel Array
2. Solar Module Mounting Rack
3. Water Pipe
4. Well Seal Assembly
5. Low Water Sensor
6. Submersible Pump
7. Conduit and Wiring from Controller to Well Seal
8. Wiring Harness from Controller to Solar Modules
9. DC Input Controller
10. Tank Full Tethered Float Switch with Weight
11. Anti-freeze Bleeder Valve
12. Check Valve
