TEST METHOD:
THANK YOU FOR PURCHASING OUR PRODUCTS.
PRECAUTIONS BEFORE INSTALLATION
Take the machine to the car's battery for test machine.
Combine the red and yellow wires of the standard power
cord of the machine together and connect it to the positive
pole of the battery. The black wire of the power cord is
connected to the negative pole of the battery. Wait 10
seconds, press each button of the machine to see if the
machine can be turned on normally. If it can be turned on, it
means that the machine is no problem. You can install it. If
the test machine cannot be turned on normally, please
confirm whether it is strictly in accordance with The steps of
our test machine method to operate. If the problem is still
not resolved, please contact our staff in time, thank you for
your cooperation.
Thank you very much for purchasing and using our
products. When you receive the product, please do not take
it directly to the car for installation, because the product may
affect the product after a long journey, please try the
machine first And then install.
After you receive the product, please read the installation
instructions in order to better use the product and avoid
damage caused by wrong operation, thank you!

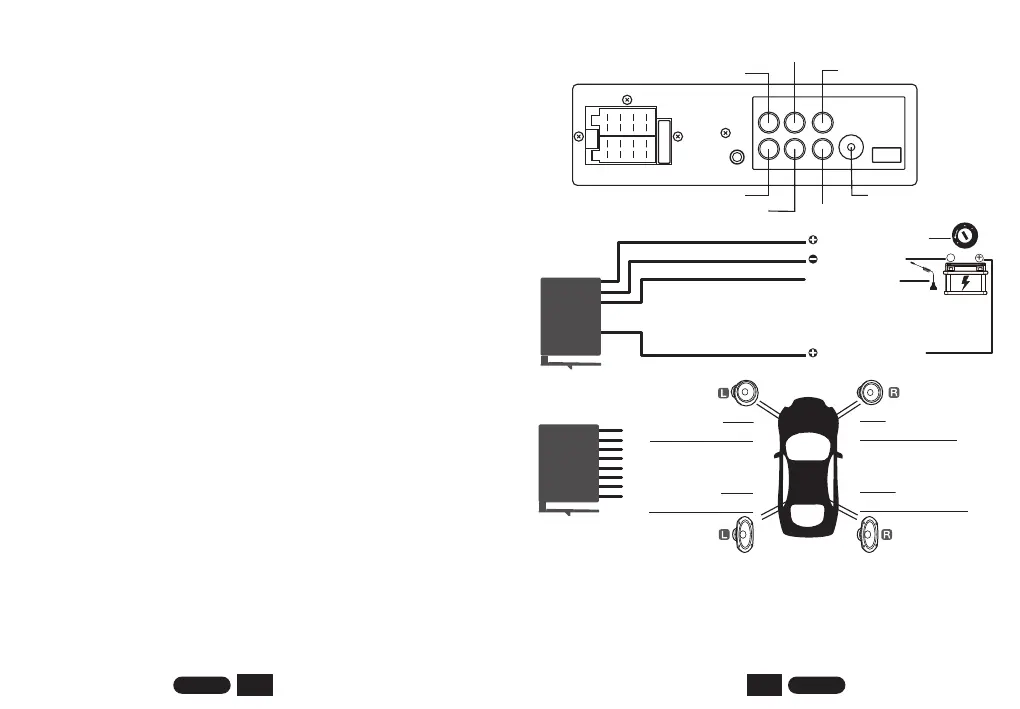

PRODUCT WIRING INSTRUCTIONS
Red
Black
Blue
Yellow
Ignition Switch +12V
Ground wire B-
Radio Antenna
B
Power Supply +12V
+
-
ACC
GND
ANT
BATTERY
* 8 speaker cables, each cable can not be grounded, can not be shared, can not
touch the line, otherwise there will be no sound output, output sound distortion,
machine fever and so on.
* The yellow line B+ keeps the power on and the machine has a memory function.
* When the yellow line B+ and the red line ACC have a 12V positive power at the
same time, the unit can be turned on normally.
ENGLISH ENGLISH
1
2
SUB1
SUB2
FL-OUT
FR-OUT
RL-OUT
RR-OUT
ANT
MIC IN
A
B
Subwoofer output-1
Subwoofer output-2
Front right audio output
Rear right audio output
Radio antenna
Rear left audio output
Front left audio output
Green
Green/black striped
White
White/black striped
Gray
Gray/black striped
Purple
Purple/black striped
Front speaker
Front speaker
Rear speaker
Rear speaker
A
To Next Page
