9
Caution
▶Do not plug in only before oil supply is finished.
If the operator mistakenly steps on the pedal with the plug in, the machine will start
automatically and can cause severe injuries.
▶When handling lubricants, wear protective glasses or gloves to avoid contact with your eyes or
skin. Inflammation may be caused otherwise. Never drink lubricants since they can cause
vomiting or diarrhea. Keep out of the reach of children.
▶Operate the machine only after adding oil when the machine is being used for the first time or
has been left unused for a long time.

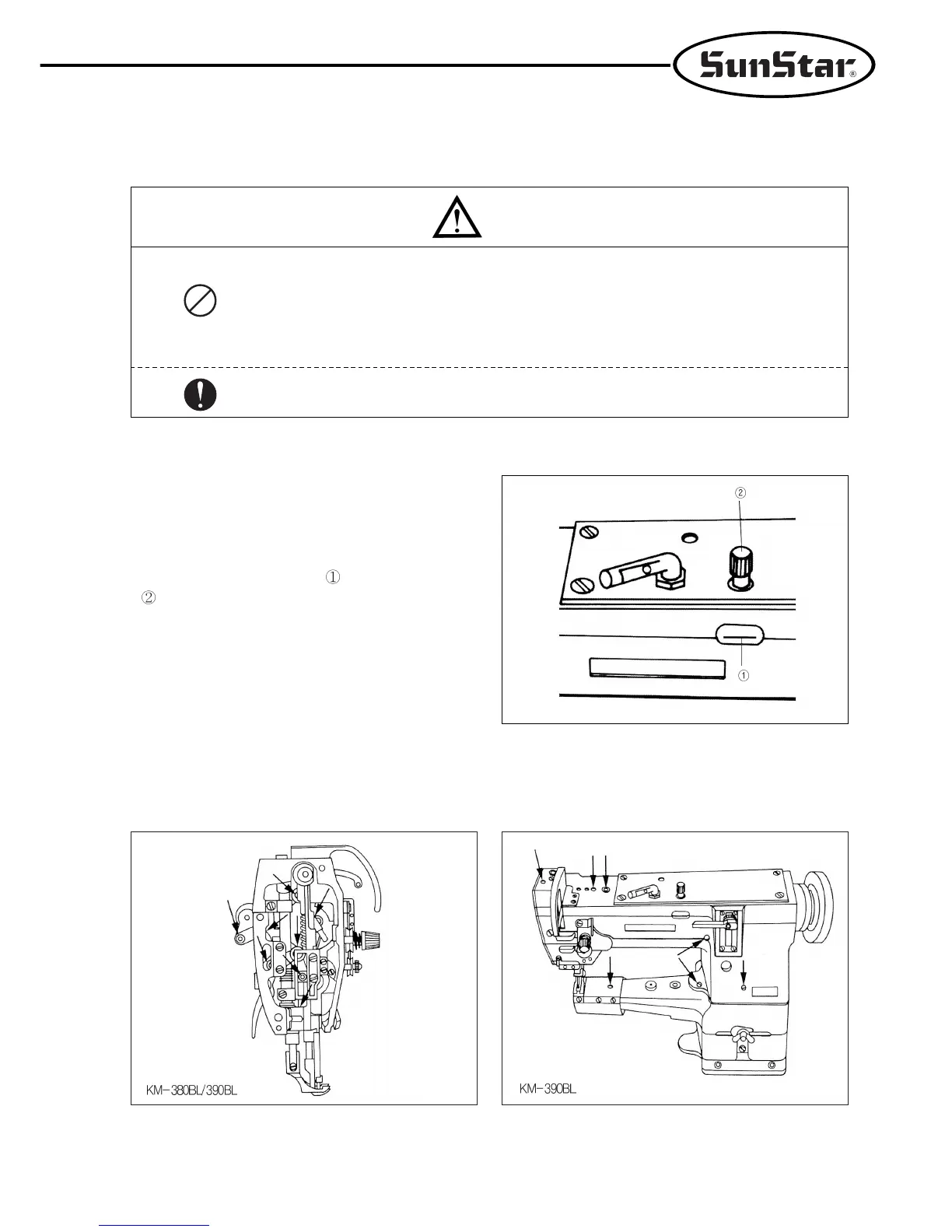

[Figure 1]
1) Confirming oil supply
A. Confirming oil tank
KM-380BL/390BL
In case of oil tank installed in the upper part of arm, supply
oil to the level of the marked line
after opening the cover
. (Refer to Figure 1)
2) Lubricating each friction part
Be sure to supply oil into the oil holes marked red (arrow marks) and the oil holes in the friction parts before operating the machine.
[Figure 2]
[Figure 3]
