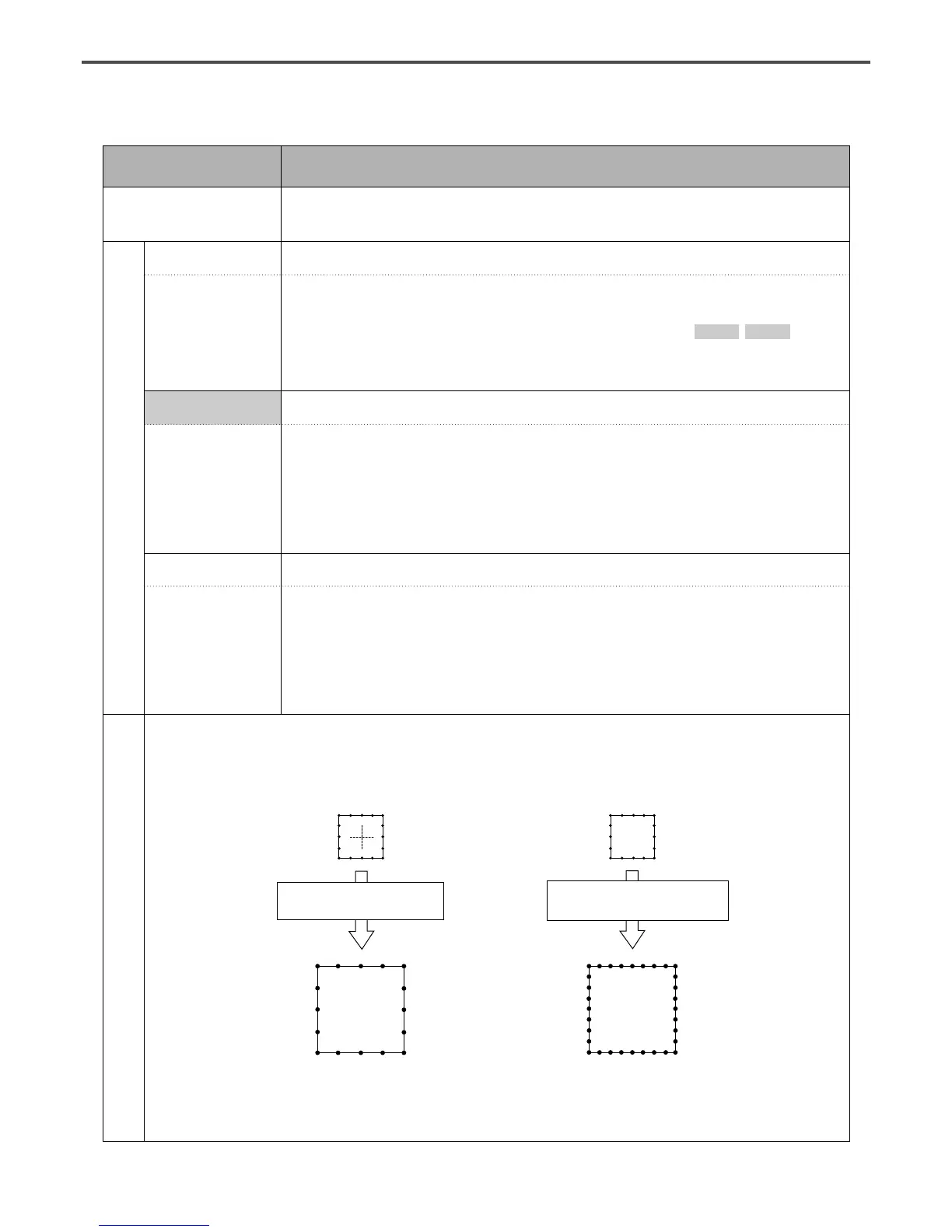

Function No. : 063 Function Name : Setting the magnifying/demagnifying mode
It is to select and set the magnifying/demagnifying mode.
The Magnifying/demagnifying function is not used.
[Contents] The machine uses the pattern data in the programmed size.
As the magnifying/demagnifying function is not selected, the X scale , Y scale
keys are not operated. Adjust the
"
XS
"
and
"
YS
"
indicated on the screen to 100%
063. Scale Mode
1) DISABLE
Setting
Value
It is to set the magnifying/demagnifying mode using the stitch length.
(Factory installed condition)
[Contents] While the number of stitches are the same, the length of the stitches along
the X and Y axis are adjusted according to the magnifying/demagnifying rate.
Set the rate within the feed plate transfer limit.
2) STITCH_LEN
It is to set the magnifying/demagnifying mode using the number of stitches.
[Contents] While the length of stitches are the same, the number of stitches are adjusted
along the X and Y axis. Set the rate within the feed plate transfer limit.
3) STITCH_NUM
It is not applied
(It is going to apply
later)
Magnifying/demagnifying
according to stitch length
Magnifying/demagnifying
according to number of stitches
