58

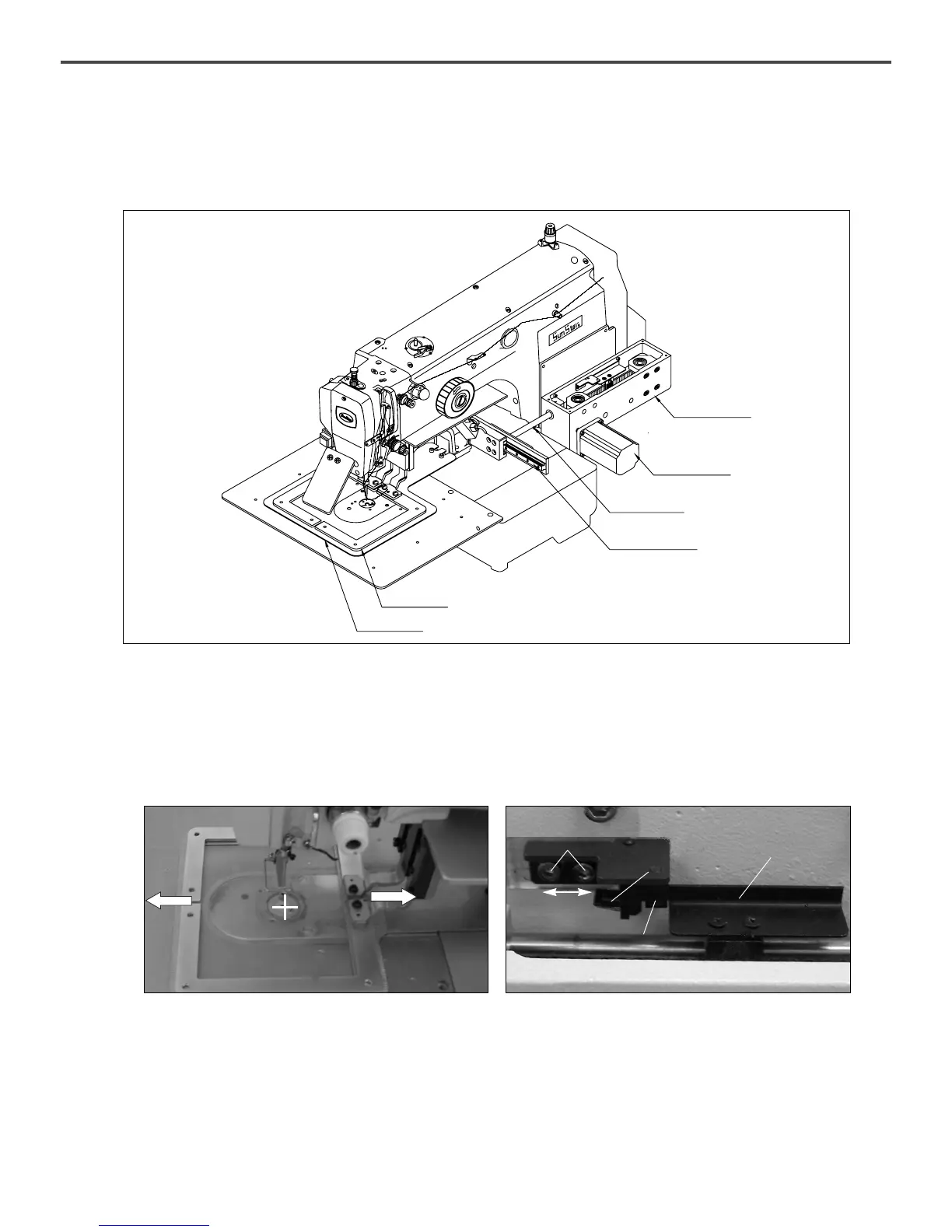

A. Machine Composition
[ Fig. 86 ]
8) Setting and Adjustment of SPS/B(A)-1310
Y-motor Base
Y-drive Motor
Y-feed Shaft
Y-feed LM Guide
Upper Feed Plate
Lower Feed Plate
B. The Y-shaft Original Point Setting
ⓐ Disassemble the Y-motor base cover.
ⓑ Move the upper feed plate to be located at the center in the direction of the Y-shaft.
ⓒ Loosen the screw as in the figure. Adjust the Y-sensor bracket to locate the Y-sensor plate at the center of the
Y-sensor. Adjust the screw with the L-wrench.
[ Fig. 87 ] [ Fig. 88 ]
Screw
Sensor Bracket
Sensor
Sensor Plate
To Next Page
