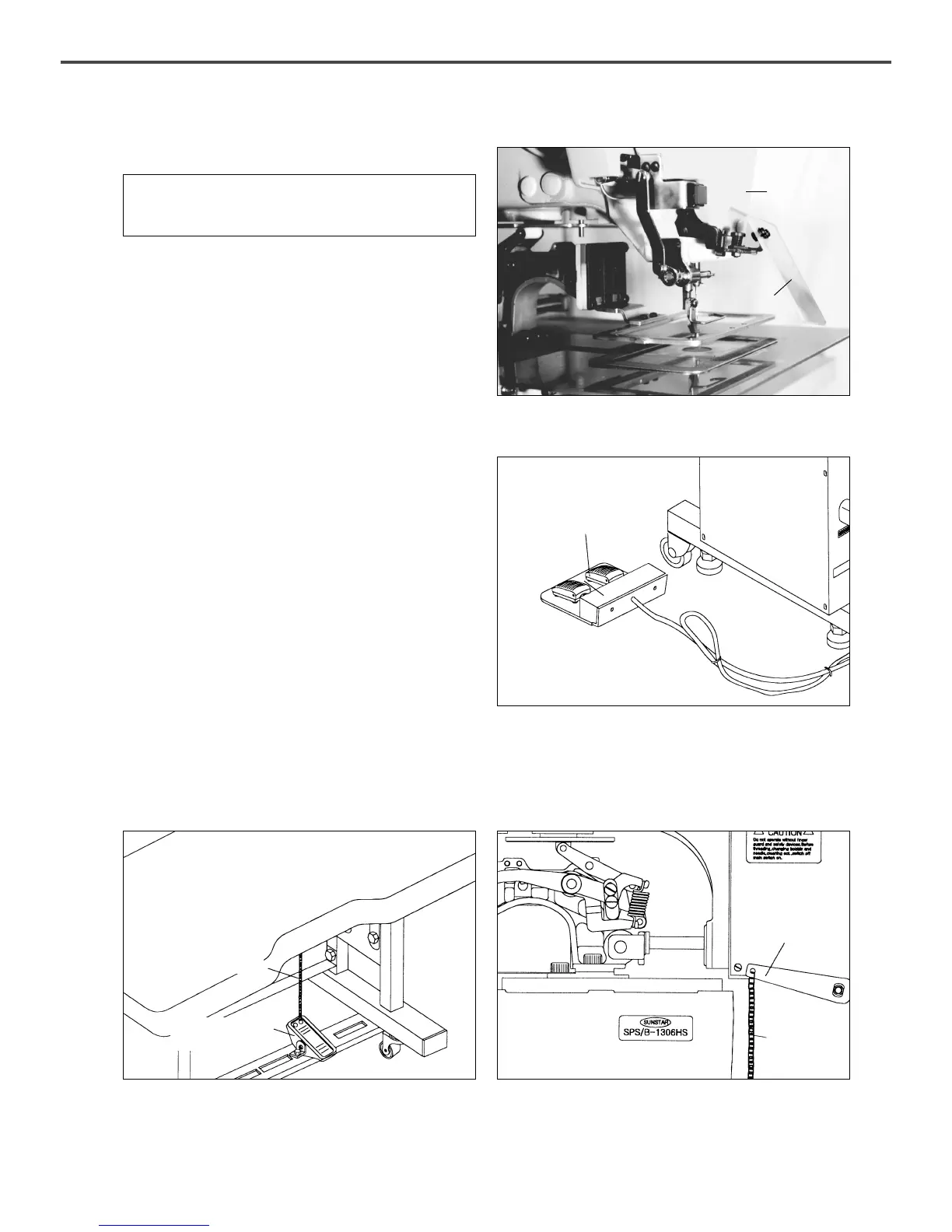

B. Install the safety plate on the side of the face plate.
[ Caution ]
For safety, have the plate on during operation.
C. Connect a plug of pedal switch with control box.
[ Fig. 14 ]
Safety Plate
Ass’y
Face Plate
[ Fig. 15 ]
Pedal Switch
D. Connect the chain between the manually operated pedal and the manual lowering lever.
If the distance between a manual pedal and linking chain is not fitted, unfasten the bolts and nuts of manual pedal
and adjust the manual pedal for proper distance.
[ Fig. 16 ]
Manually
operated Pedal
Linking Chain
Manual
Lowering Lever
Linking
Chain
