[ Fig. 12 ]

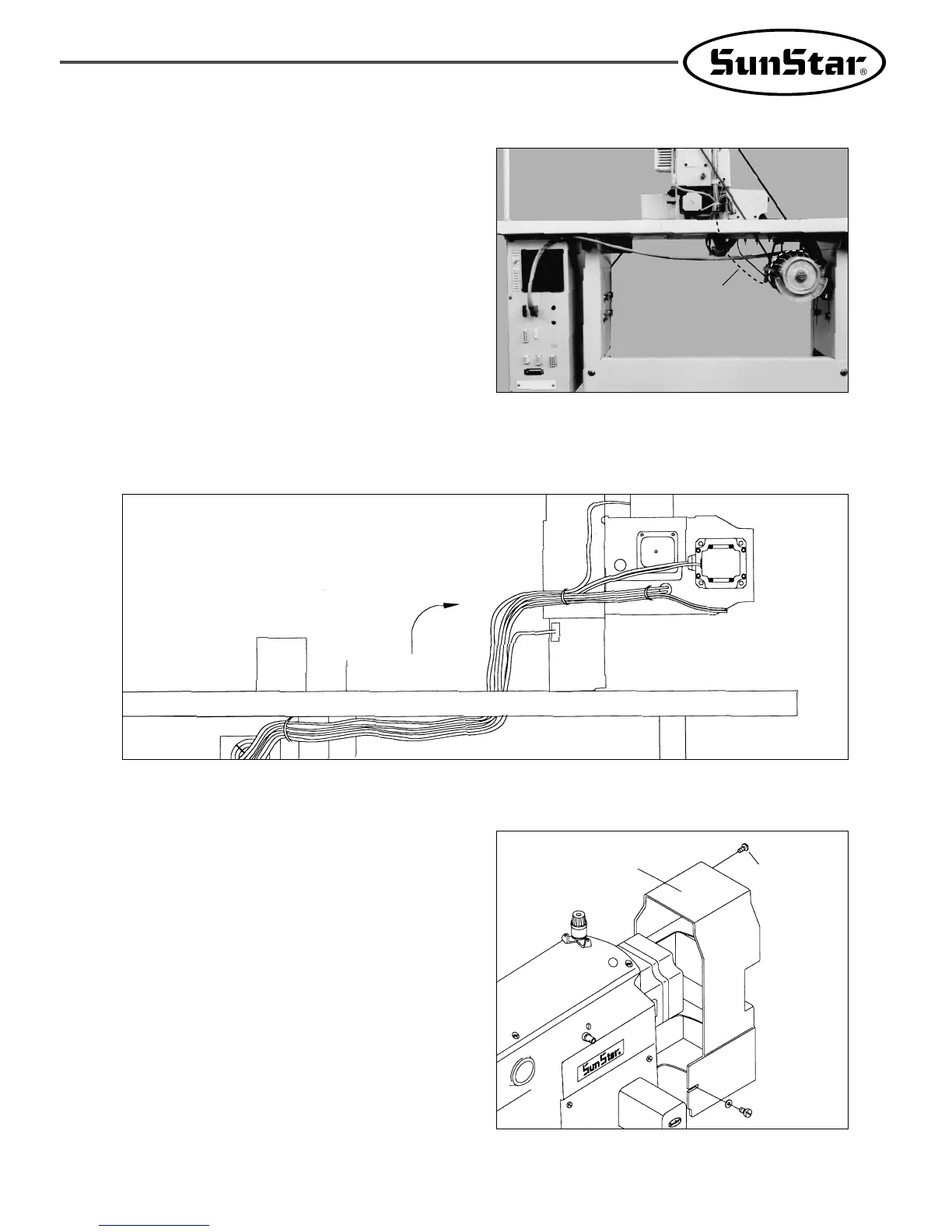

K. After the cable connections between the machine and the control box is finished, fix the cable wiring under the
table as shown in the picture.
(Adjust the length of the wire considering the situation of standing the machine.)
[ Fig. 13 ]
Table
Motor Cover
Fixing Screw
Fixing Screw
4) The Assembly of Peripheral Parts
A. Use the fixing screws to install the motor cover onto
the back of the machine.
(In case of A series, use the fixing screws to install
the belt cover onto the back of the machine.)
[ Fig. 11 ]
J. Be sure to connect the earthing conductor(green)
between the sewing machine and the motor. And
also, connect the earthing conduct or between the
control box and the motor.(A Series)
Conductor
To Next Page
