Select 207 XLS User / Installation Instructions Page 7 of 8
5.If the unit is fitted to a metal surface, IT IS
ESSENTIAL that the metal be earthed. Do not use
a surface mounting box.
6.Ensure the mains supply is switched off, then
make wiring connections. No EARTH connection
is required, but ensure continuity of EARTH
throughout the system.
7.After wiring, plug unit into wall plate and tighten
the securing screws. Switch on at mains.
8.Setting timing and programme as detailed in
user guide.
9.NEVER fit or remove the unit to a LIVE
wall-plate.
Configuration Display
2 On/Off 2PU
pumped
3 On/Off 3PU
pumped
2 On/Off 2GA
gravity
3 On/Off 3GA
gravity
Mon to Sun indicators
7 Day Mon to Sun successively on
5/2 Day Mon to Fri on alternating with
Sat Sun on
24 Hour Mon to Sun on all together
SUNVIC CONTROLS Ltd.
Units 1 & 2, Block 1,
251 Low Waters Raod
Cadzow Industrial Estate
Hamilton Tel: 01698 812944
ML3 7QU Fax: 01698 813637
Tech Helpline 01698 810945
Tech Help. Fax 01698 307437
WWW.sunvic.co.uk
In the interests of continuous product
improvement, Sunvic Controls reserve the right to
alter designs, specifications and materials, without
prior notice, and cannot accept liability for error.
Installation leaflet LE/497/0001 ISSUE 01 Jan 2007
This product complies with the essential requirements of
the following EC Directives:
Electro-magnetic compatibility directive
EMC 89/336/EEC (as amended by 91/263/EEC
And 92/31/EEC
Low Voltage directive
LVD 73/23/EEC;93/68/EEC

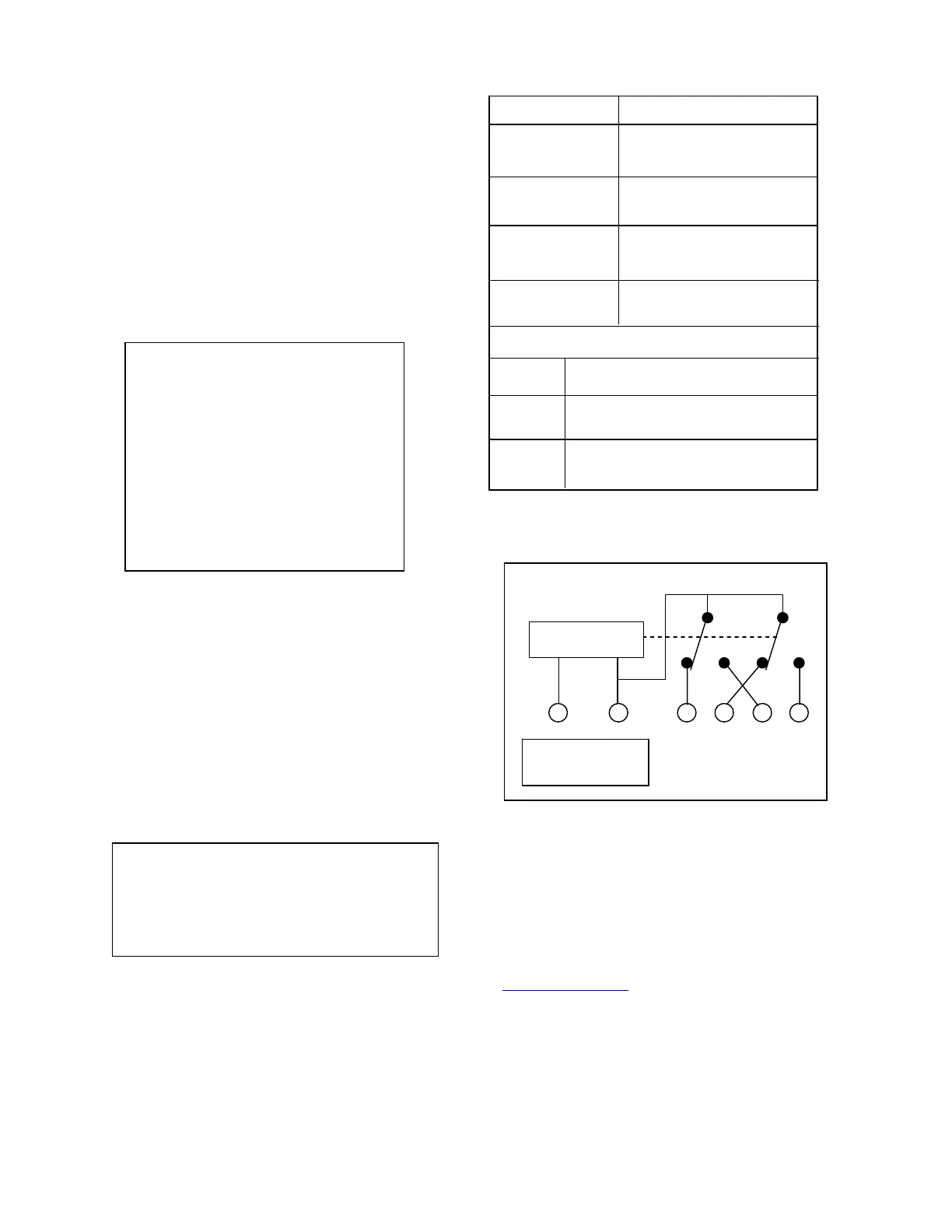

N L 1 2 3 4
HW CH HW CH
OFF OFF ON ON
Electronics
Mains Fused
6Amps
Programmer internal wiring diagram
Factory set programme
Mon to Fri Sat/Sun
1
st
on 06:00 07:00
1
st
off 08:30 09:00
2
nd
on 12:00 12:00
2
nd
off 12:00 12:00
3
rd
on 16:30 16:30
3
rd
off 22:30 23:00
If unit is installed as a 24 hour programmer, the
built in programme will be the same for each day.
(The weekdays programme)
