3

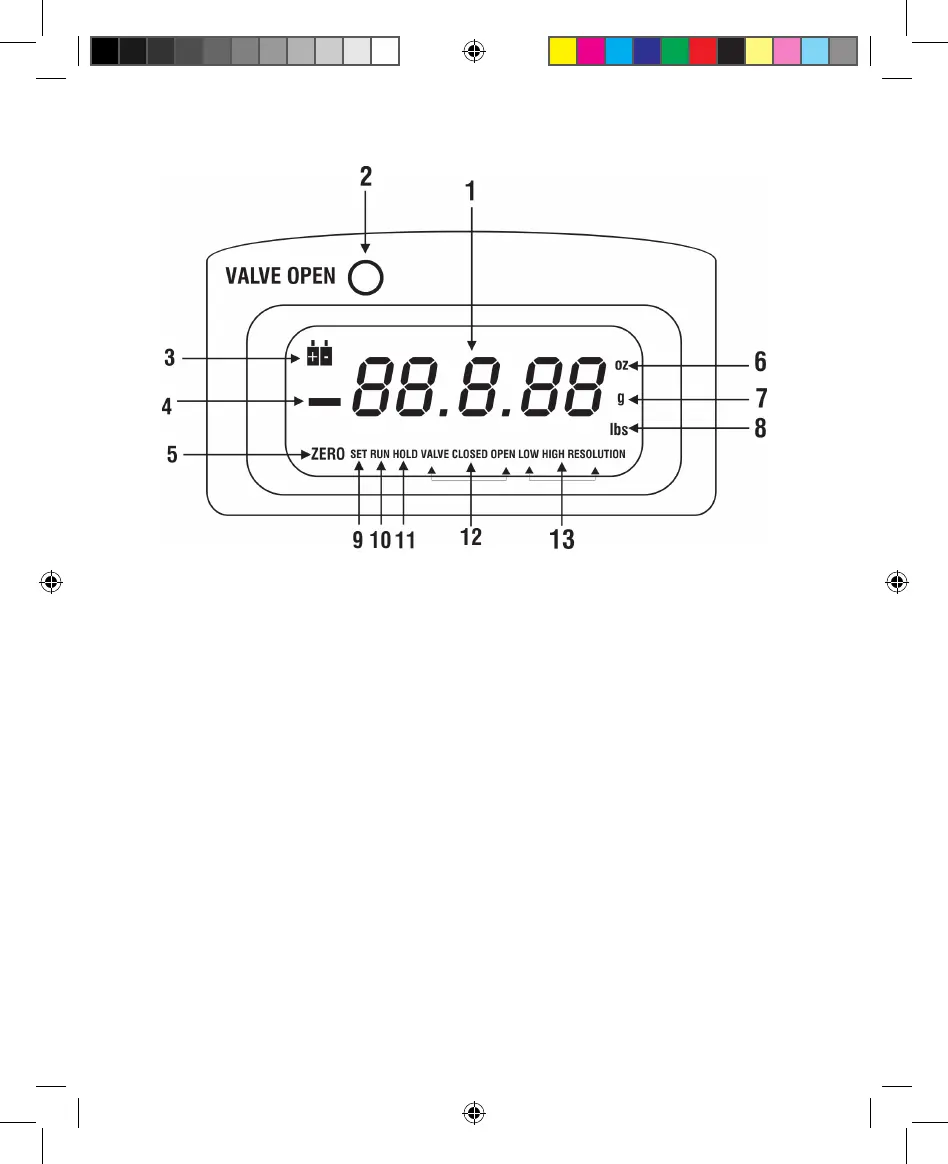

LCD Display
Item Function
1 Main Numeric Display
2 Valve Indicator Light (ON / OFF)
3 Battery Level Indicator
4 “Floating” Negative Indicator
(Indicates weight removed from platform)
5 Display “TARE / ZERO”
6 Indicate Units For oz
7 Indicate units For kg and g
Item Function
8 Indicate Units For lbs
9 Programmable Weight Set
10 Run Mode Indicator
11 Hold Mode Indicator
12 Valve Open / Close
13 Set Resolution 2G (high) / 5G (low)
PCS220 Manual.indd 5 10/27/2011 10:08:10 AM
