Super Handy GUO092 - Assemble Swivel Wheel; Assemble Rear Wheel; Assemble Hitch Ball Adjusting Lever; Assemble Handle Bar Kit

4
6. Assemble handle bar kit
a. Insert the wire of handle bar assembly
through the square hole at the front end
of the bracket and thread it through the
round hole between the bracket and the
battery case (Step 1);
b. Align the handle bar assembly with the
hole position of the bracket, and insert
M10x55 bolt (Step 2); Tighten M10 bolt
(Step 3);
c. Lock it with M10x16 bolt. (Reminder:
Auxiliary round holes are set on both
sides of the bracket to facilitate the
observation and crossing of the wires.
The wire can be gently hook or pull)
5. Assemble hitch ball adjusting lever
Adjust the hitch ball position (forward,
backward, upward and downward)
according to the usage scenario, align with
the notch selection hole and insert the bolt
(Step 1); Lock the B-pin (Step 2).

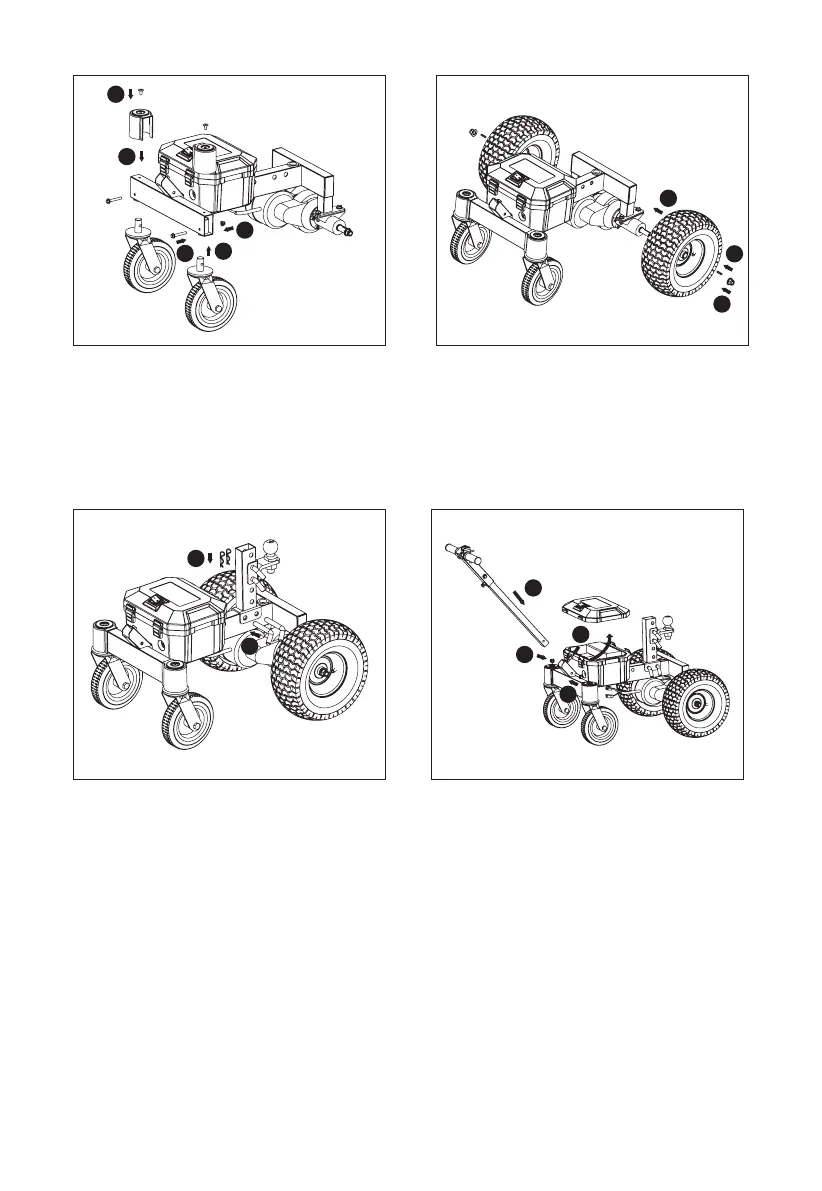

3. Assemble swivel wheel
Align the Swivel wheel fixing shaft with the
hole under the bracket (Step 1); Insert
M8x55 bolt (Step 2); Tighten M8 nut (Step
3); Put on plastic decorative cover (Step 4)
and fix it with M8x16 bolt (Step 5).
4. Assemble rear wheel
First, remove the plastic sheath on the rear
axle transmission shaft, and remove the flat
key for later use. Put the inflation port of the
rear wheel on the rear axle shaft (Step 1);
Align the keyway hole, knock in the flat key
(Step 2); Tighten the M14x1.5 nut (Step 3).
5
4
1
3
2
Figure 3
Figure 4
1
2
3
Figure 5
1
2
4
3
2
1
Figure 6
Wire
