Super Handy LCE12 - In-feed bin installation (see Figure 3); Fixed the discharge chute (see Figure 4)

6

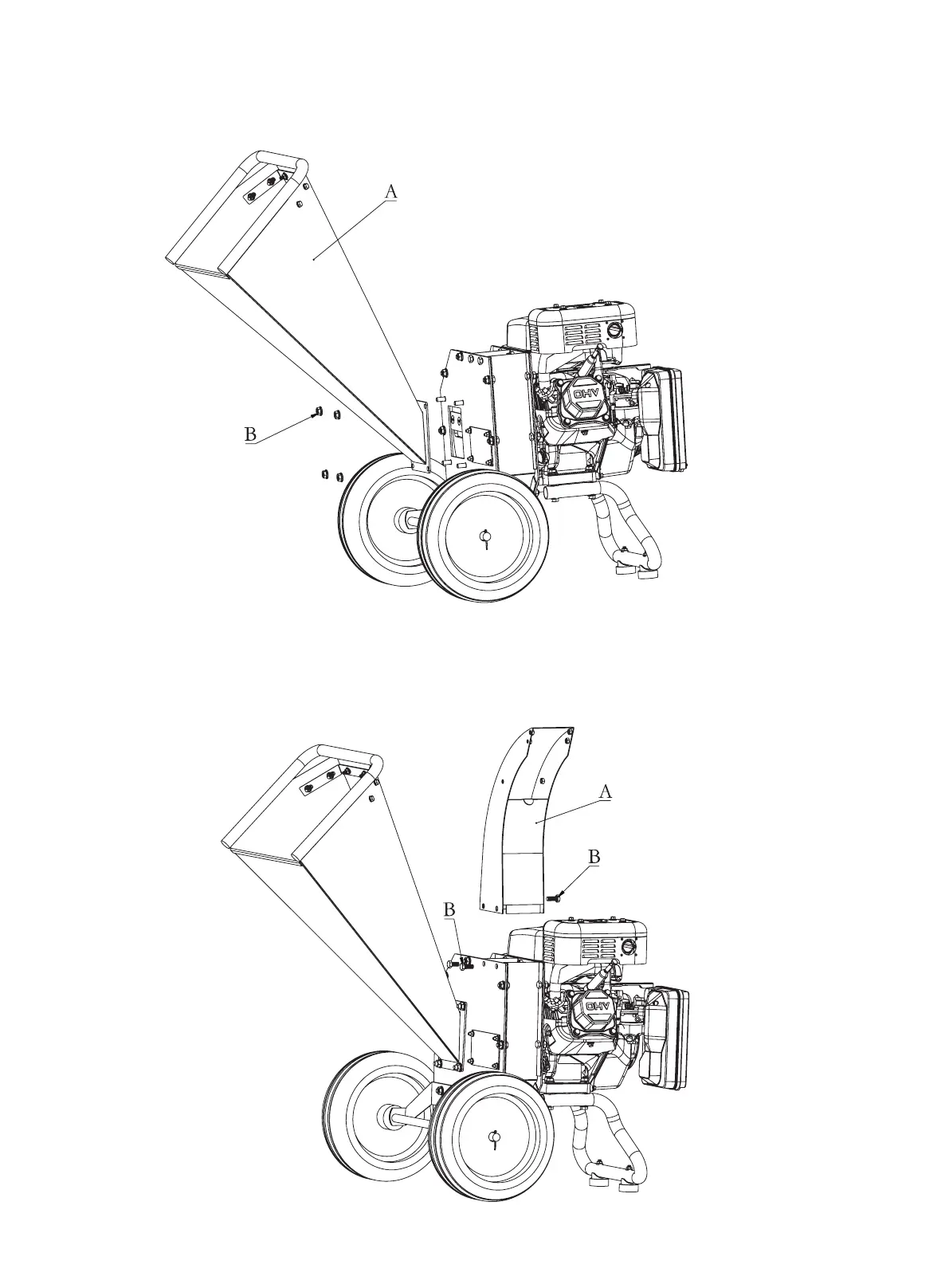

In-feed bin installation (see Figure 3)
1. Place the Infeed bin (A) on four M8 bolts;
2. Fix the bolt with four M8 flange nuts (B).
Fixed the discharge chute (see Figure 4)
1. Place the discharge chute (A) on the housing and align the fixed hole.
Fix the discharge chute with three M8*16 bolts (B) on the housing. (see Figure 4)
2. Place the discharge chute (A) on the housing and align the fixed hole.
Figure 3
Figure 4
