ASSEMBLY

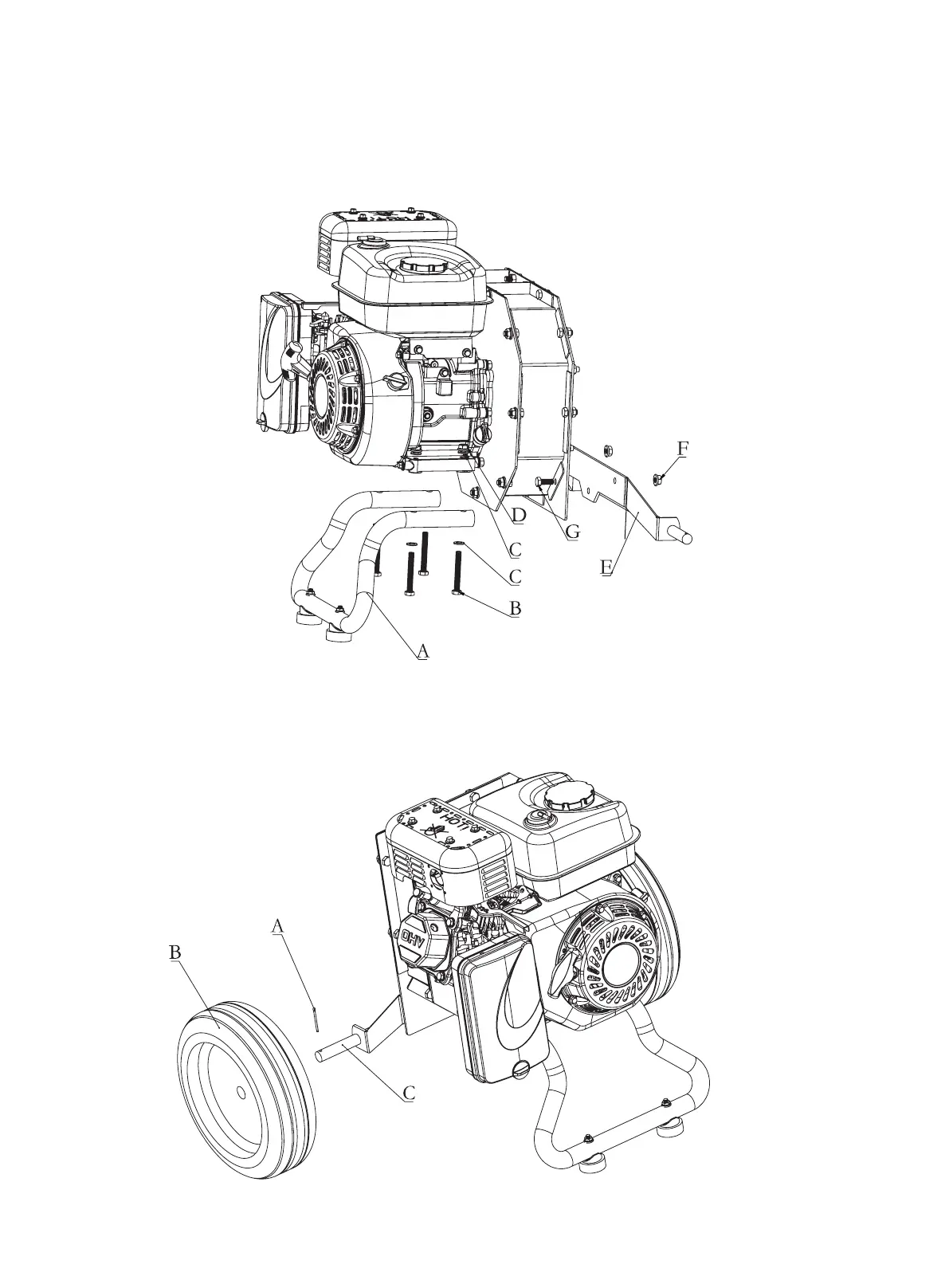

Install Stand (See Figure 1)
1. Position the stand (A) underneath the engine base
2. Using the four M8x60 bolts (B) and four nuts (D) with 8 flat washer（C）to tight the stand with the engine base
plate.
3. Fix the wheel bracket (E) on the housing with three M8x20 bolts (G) and three M8 nuts.(F)
Install the Wheels (See Figure 2)
1. Put the wheel (B)onto the axle(C), Make sure the wheel disc flat side face to machine.
2. Insert the cotter pin (A) into the hole to secure the wheel on the axle.
Figure 1
Figure 2
