LT2-F Assembly Manual
SuperDroid Robots, Inc Contact
224 Technology Park Lane (919) 557-9162
Fuquay Varina, NC 27526 SDR@SDRobots.com
www.SuperDroidRobots.com
Revised: June 19, 2018 Page 11 of 25

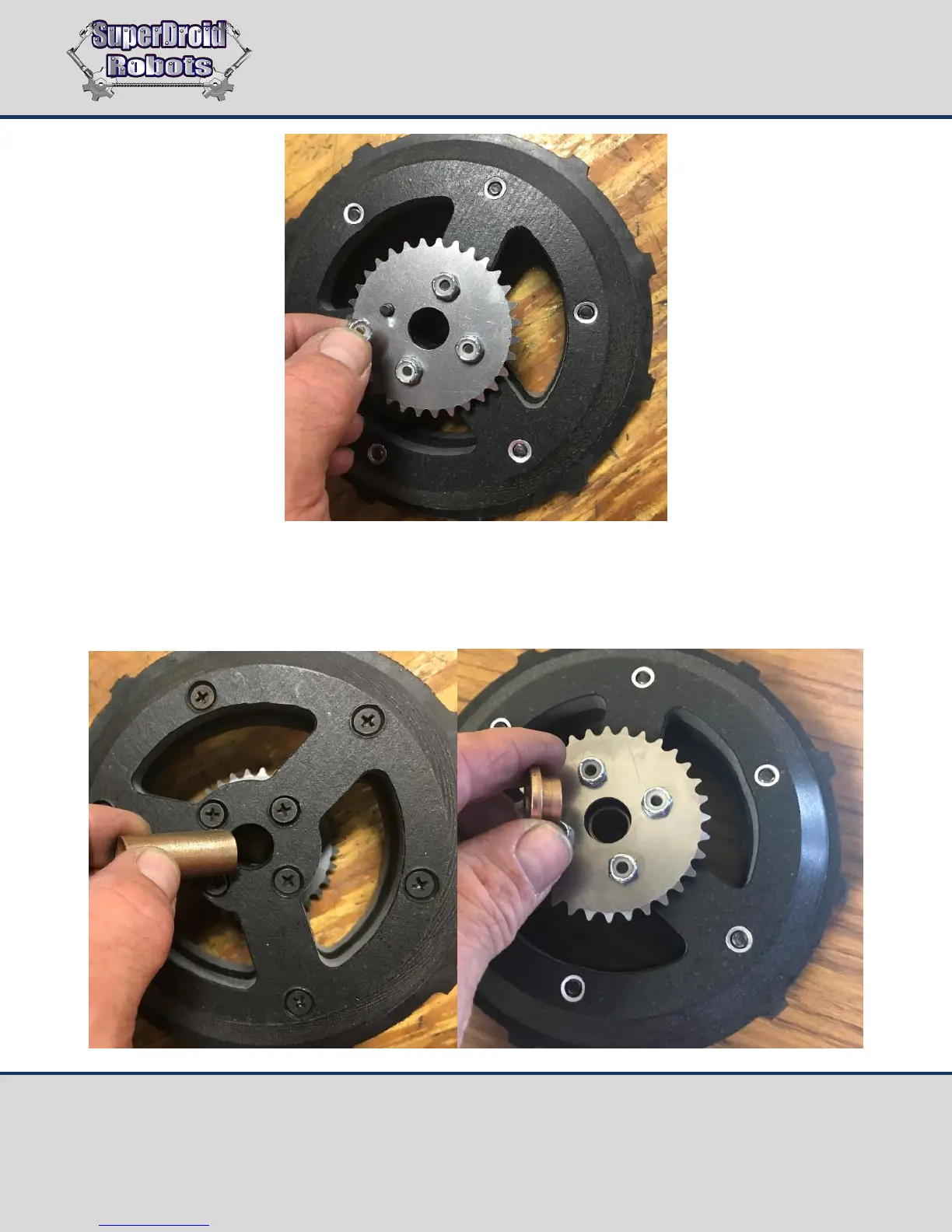

Put the sprocket on top of the flange nuts and then bolt the sprocket down using the #10 locknuts.
Press in the sleeve bearing, then turn the wheel over and press in the flanged sleeve bearing on the
opposite side of the wheel.
