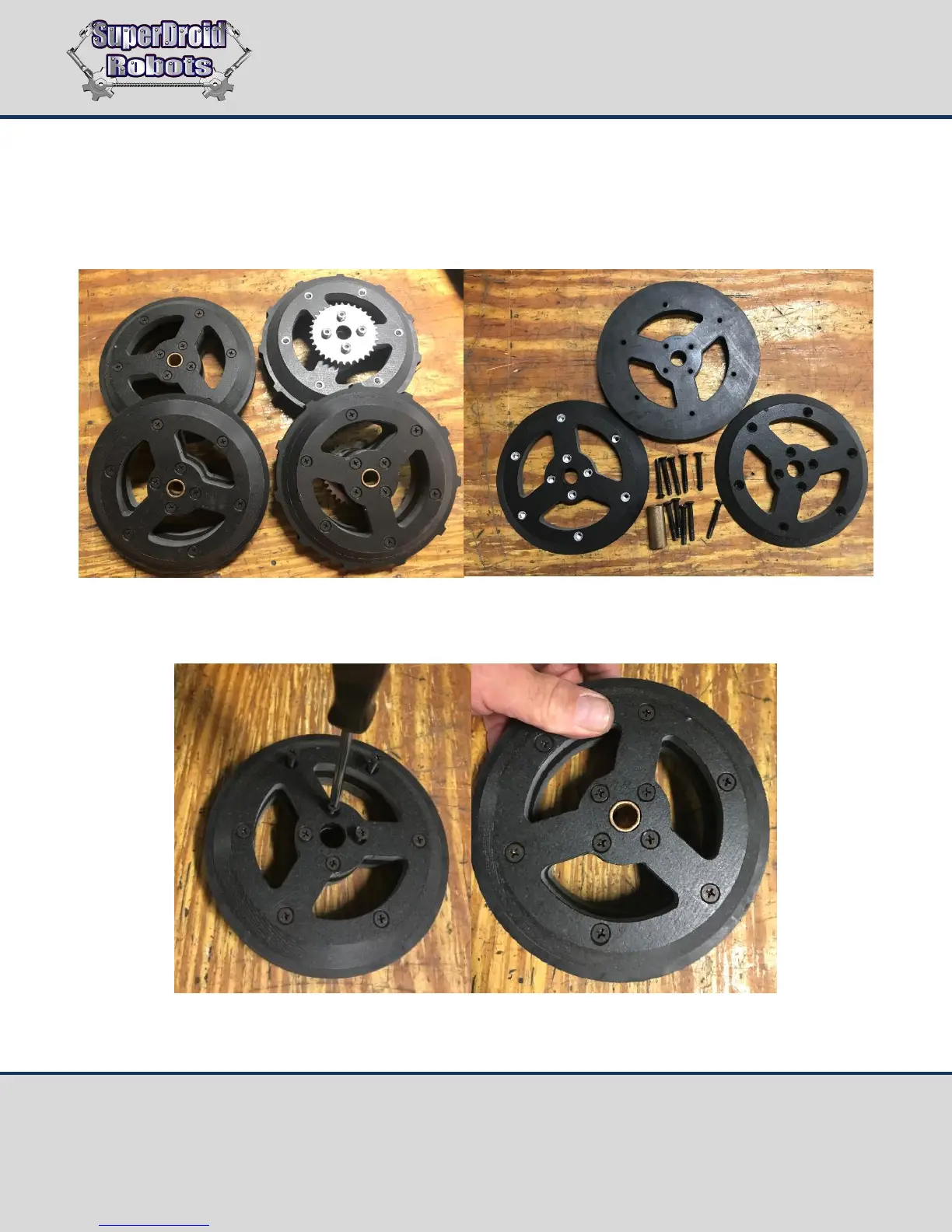

Wheel Assembly
Assemble the wheels. You will have two drive wheels with the sprockets mounted, and two idler
wheels with no outside teeth or sprocket.
Idler wheel assembly. Sandwich the rubber between the two plastic sides. Bolt them together and then
press in the center sleeve bearing.
Assemble the drive wheels. These use the sprockets and the rubber with the teeth formed into them.
Final assembled wheel is on the left.
