LT2-F Assembly Manual
SuperDroid Robots, Inc Contact
224 Technology Park Lane (919) 557-9162
Fuquay Varina, NC 27526 SDR@SDRobots.com
www.SuperDroidRobots.com
Revised: June 19, 2018 Page 9 of 25

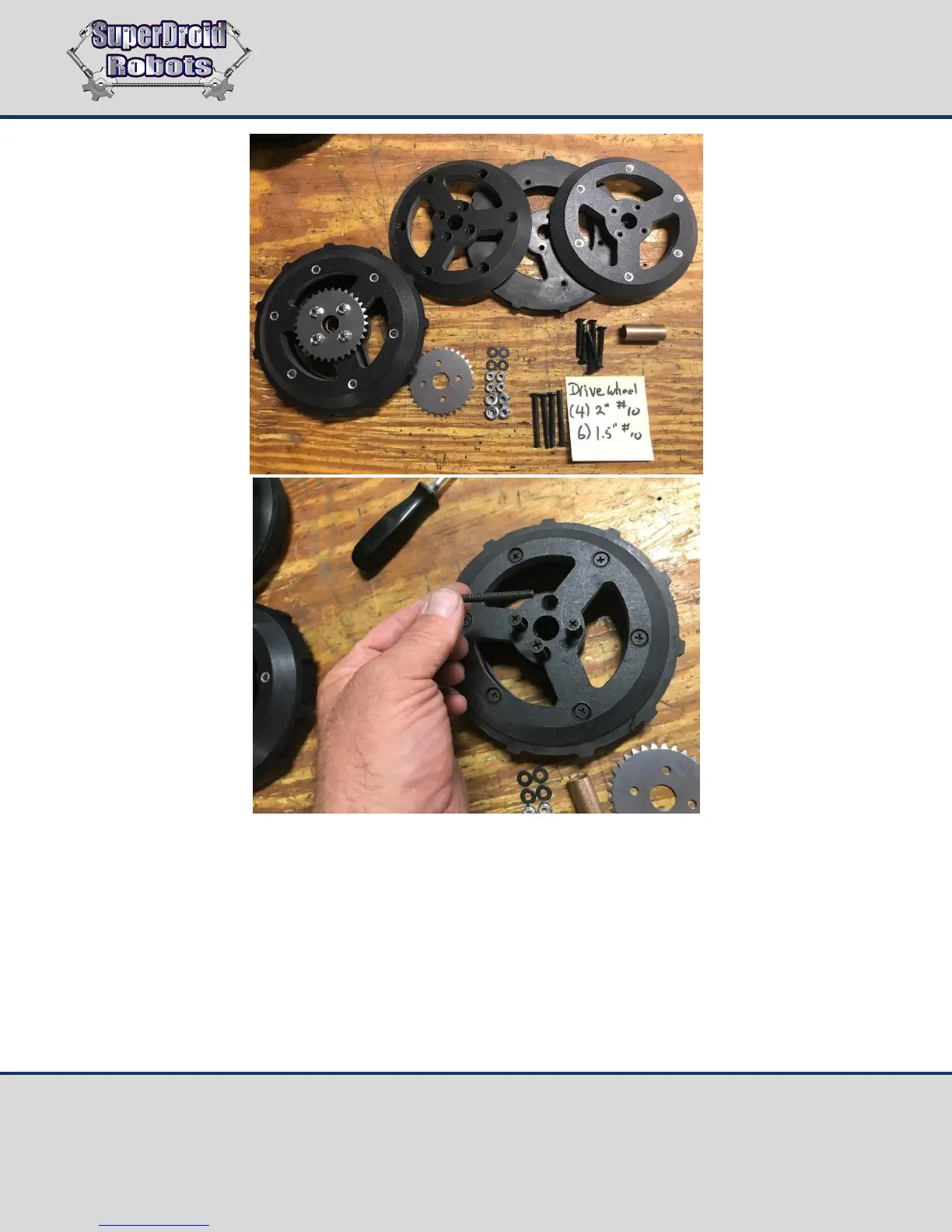

Assemble the wheel using the 2” hardware in the center 4 bolt holes. These go through the wheel and
are used to bolt the sprocket on the opposite side of the wheel.
