LT2-F Assembly Manual
SuperDroid Robots, Inc Contact
224 Technology Park Lane (919) 557-9162
Fuquay Varina, NC 27526 SDR@SDRobots.com
www.SuperDroidRobots.com
Revised: June 19, 2018 Page 14 of 25
Flipper Assembly

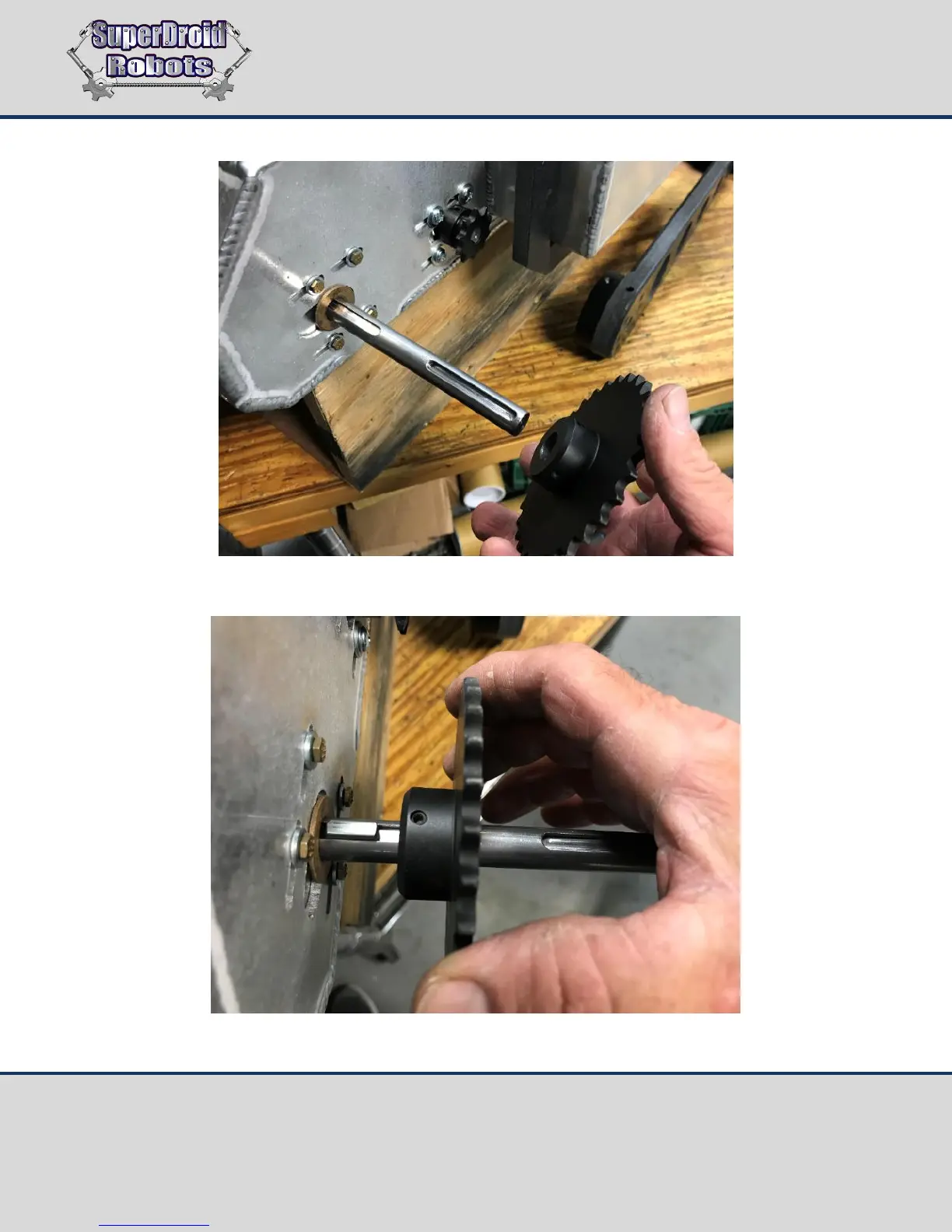

Slide the thin bronze washer on the back axle.
The put the key in the slot on the shaft. This may require some light filing to ease assembly.
