LT2-F Assembly Manual
SuperDroid Robots, Inc Contact
224 Technology Park Lane (919) 557-9162
Fuquay Varina, NC 27526 SDR@SDRobots.com
www.SuperDroidRobots.com
Revised: June 19, 2018 Page 15 of 25

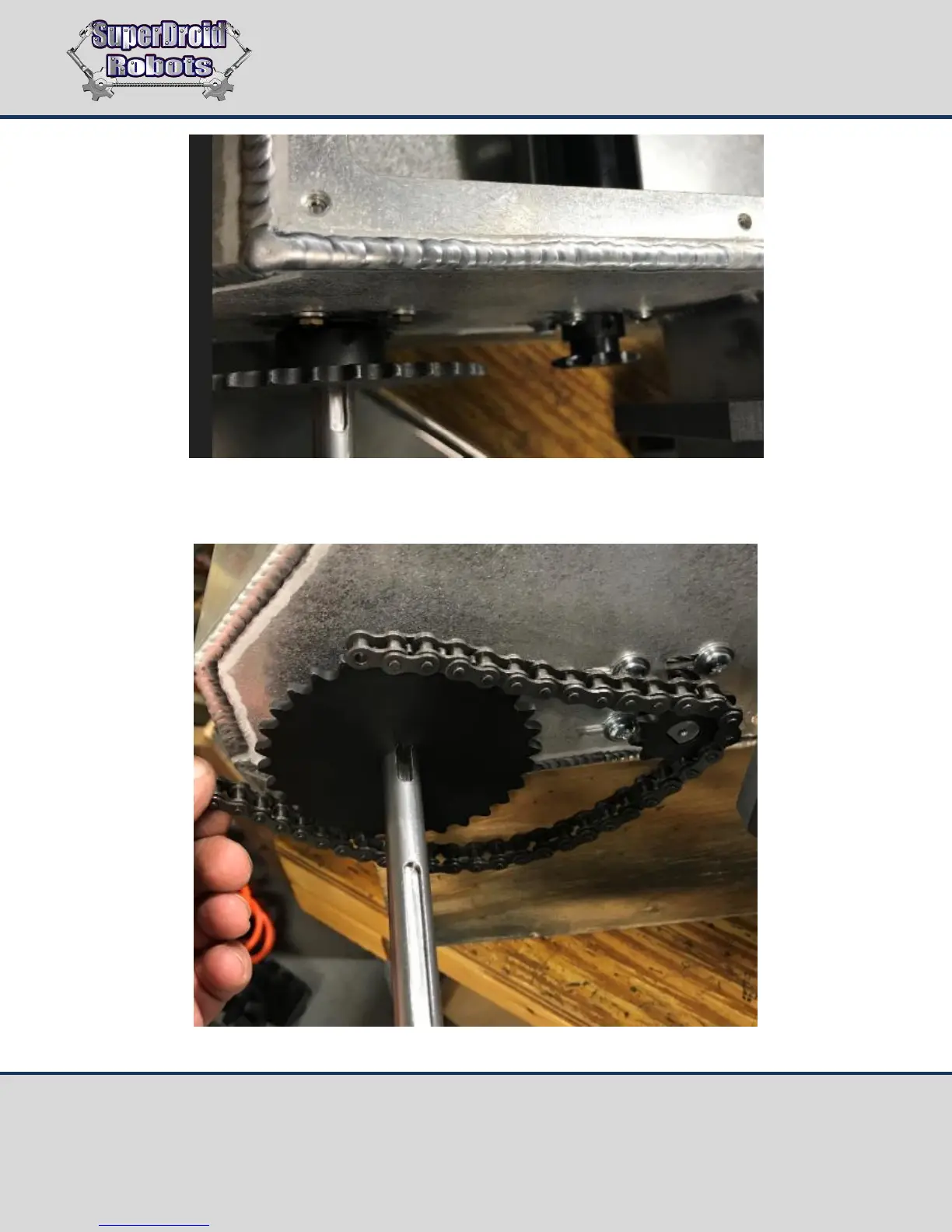

Line the flipper arm sprocket up with the motor sprocket. Now is when you should also measure from
then end of the shaft to the robot chassis. Adjust the shaft to get each end equal distances on each side.
