LT2-F Assembly Manual
SuperDroid Robots, Inc Contact
224 Technology Park Lane (919) 557-9162
Fuquay Varina, NC 27526 SDR@SDRobots.com
www.SuperDroidRobots.com
Revised: June 19, 2018 Page 13 of 25

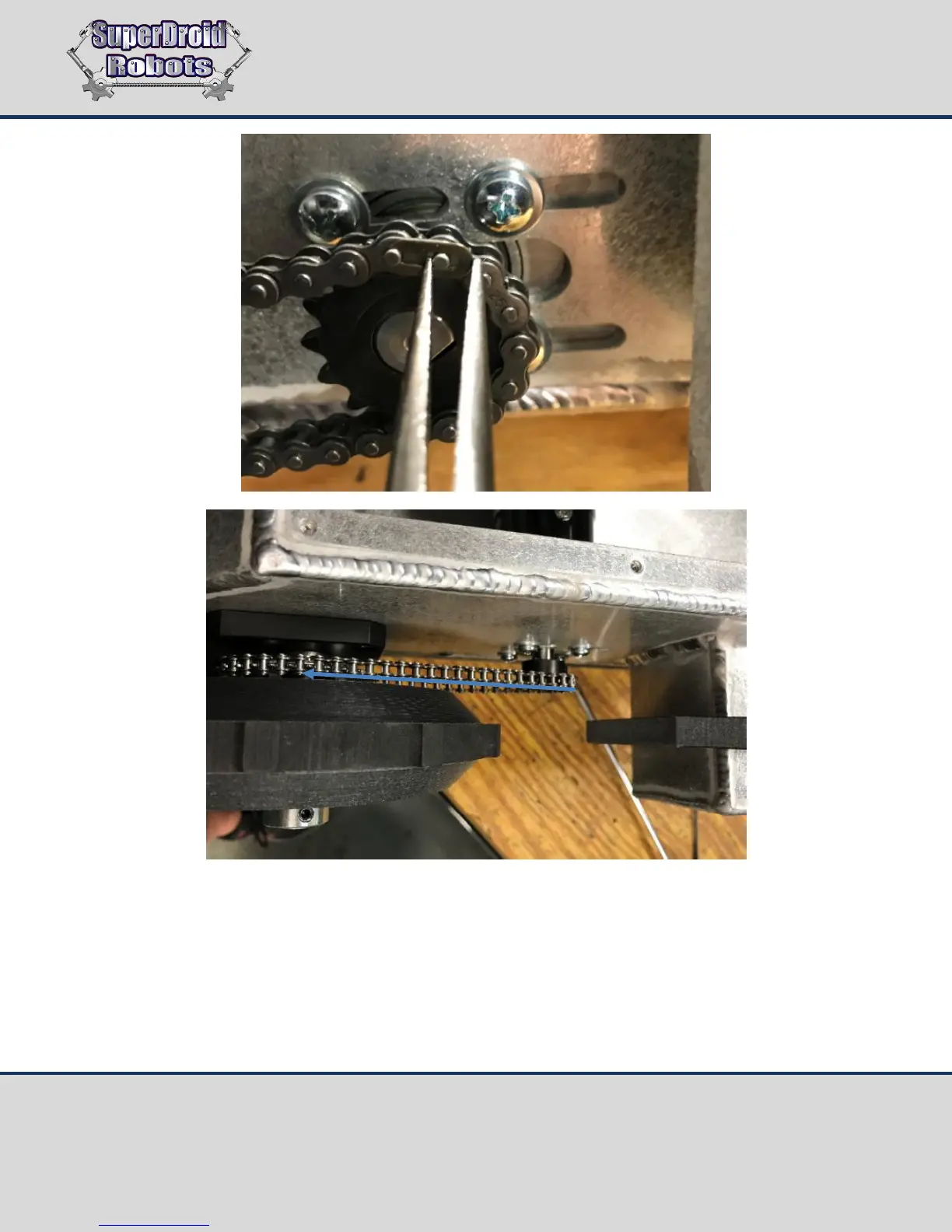

It is very important for everything to be aligned properly. The motor sprocket can be moved in or out to
get the chain aligned. The wheel and tread guide should also be aligned.
Repeat the previous steps for both sides of the robot.
