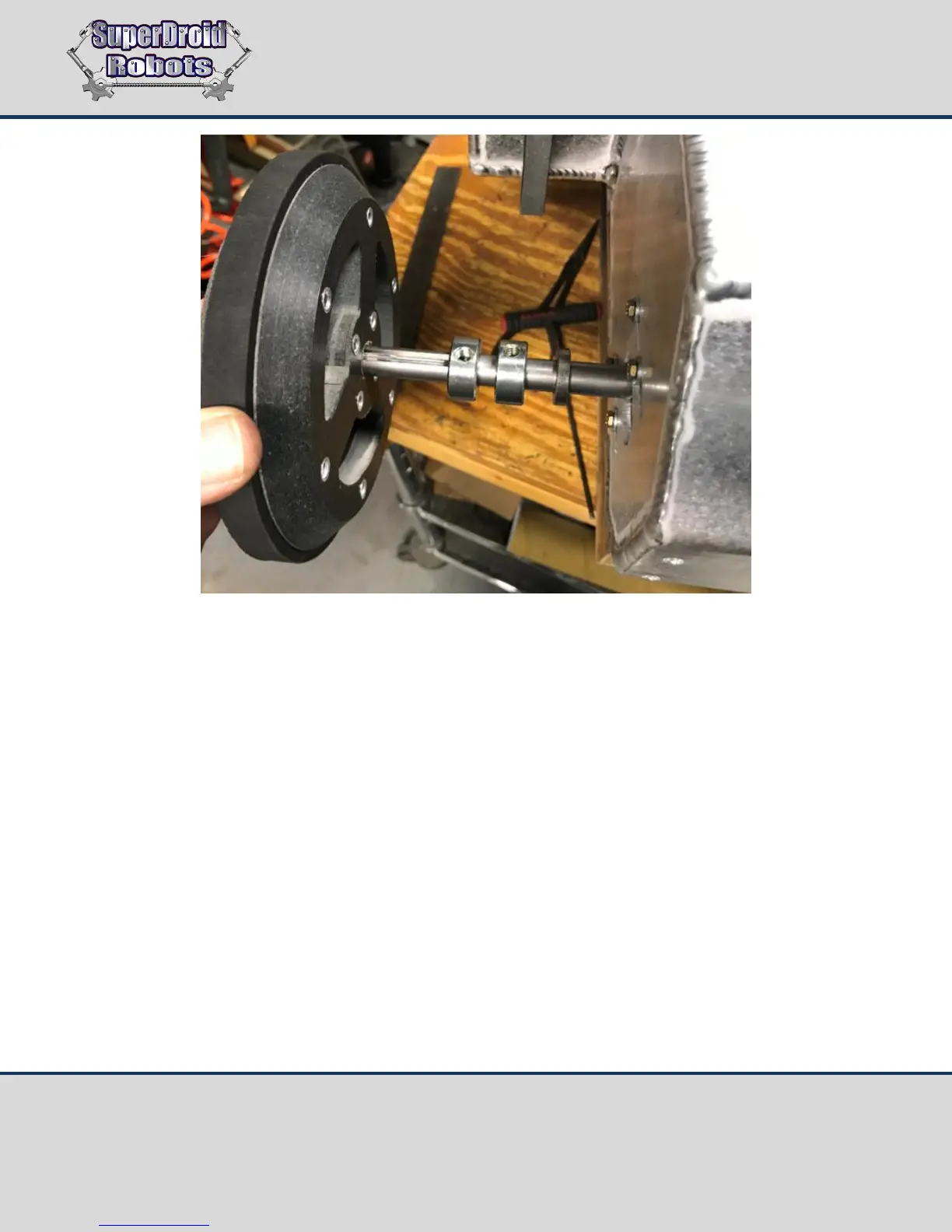

Slide the remaining wheel on the shaft, then another lock collar. Install the remaining key and then
flipper arm onto the shaft. Once everything is in place, you may want to adjust the shaft from side to
side to make spacing equal, then tighten down all the setscrews on the shaft, including the lock collars
on the inside of the robot chassis.
