PRODUCT SPECIFICATIONS
X
Outside Air
Kit Location
(Optional)
Glass Door
(Optional)
Alternate Gas
Supply Inlet
7" (178 mm)
7"
(178 mm)
7" (178 mm)
1-1/2" (38 mm)
13-1/2" (343 mm)
A
E
F
R
P
Q
S
I
J
L
N
O
W
V
M
K
T
G
H
D
C
B
Stand Off
Collar
For Use With
6"Ø Type B-1
Vent Pipe Only
DIMENSIONS
HEARTH AREA

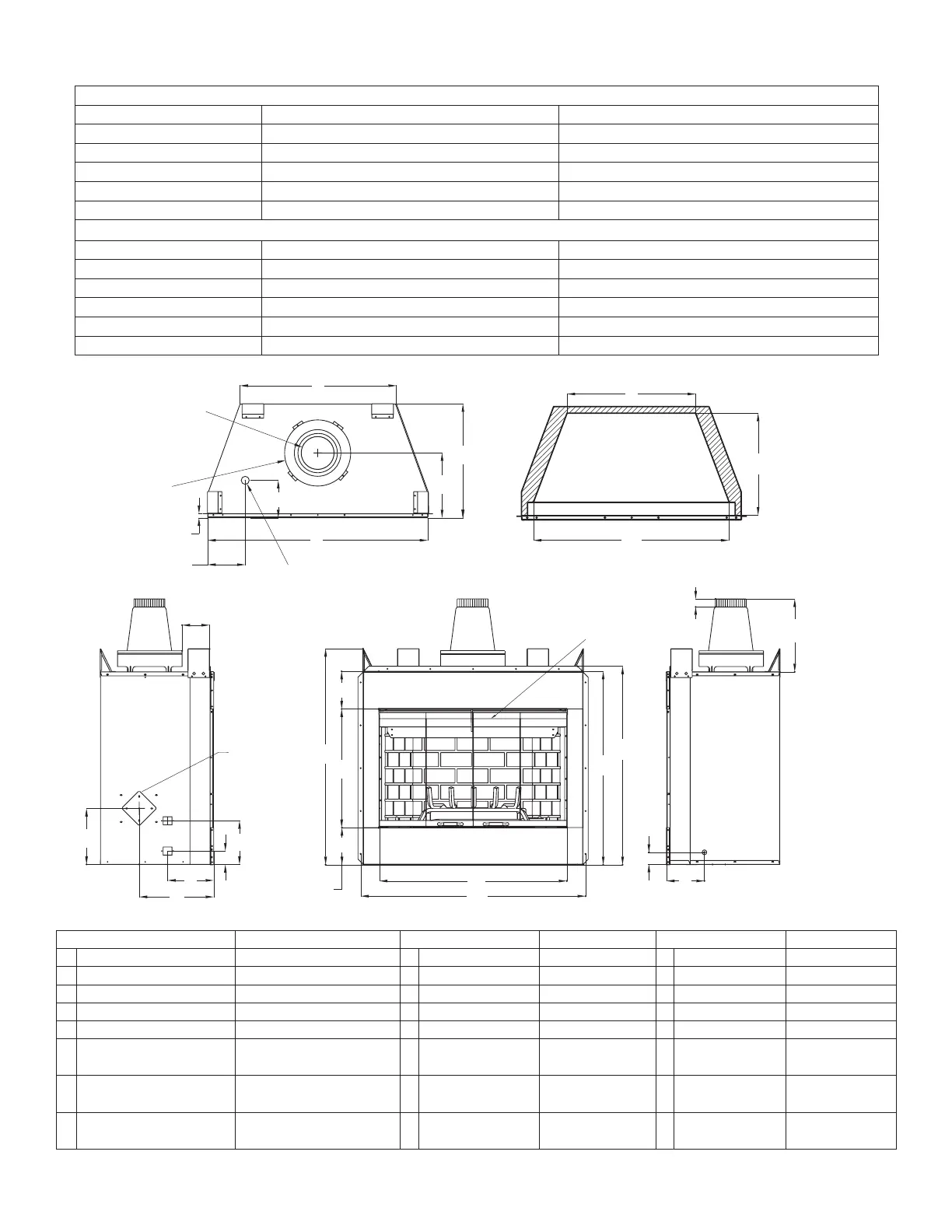

Figure 2 - Appliance Dimensions
Model 36 Model 42 Model 36 Model 42 Model 36 Model 42
A 29" (737 mm) 36" (915 mm) I 40
1
/
4
" (1023 mm) 44
1
/
4
" (1124 mm) Q 13
7
/
8
" (353 mm) 14" (356 mm)
B 5/8" (16 mm) 5/8" (16 mm) J 21" (534 mm) 24" (610 mm) R 10
1
/
2
" (267 mm) 12
1
/
2
" (318 mm)
C 41" (1042 mm) 48" (1220 mm) K 8" (204 mm) 9" (229 mm) S 2
1
/
2
" (64 mm) 2
1
/
2
" (64 mm)
D 12" (305 mm) 14" (356 mm) L 34
3
/
4
" (883 mm) 42" (1067 mm) T 8
1
/
8
" (207 mm) 8
1
/
8
" (207 mm)
E 21
1
/
4
" (540 mm) 23" (585 mm) M 42" (1067 mm) 49" (1245 mm) U 11" (280 mm) 12
3
/
4
" (324 mm)
F 22
1
/
4
" (566 mm)
24" (610 mm) w/o Brick
29
1
/
4
" (743mm)
31" (788 mm) w/o Brick
N 36" (915 mm) 40" (1016 mm) V 7" (178 mm) 7" (178 mm)
G 32
5
/
8
" (829 mm)
34" ( 864 mm) w/o Brick
39
1
/
2
" (1004 mm)
41
1
/
4
" (1048 mm) w/o Brick
O 37" (940 mm) 41" (1042 mm) W 2
1
/
4
" (58 mm) 2
1
/
4
" (58 mm)
H 15
3
/
4
" (400 mm)
16
3
/
4
" (426 mm) w/o Brick
17
3
/
4
" (451 mm)
18
3
/
4
" (477 mm) w/o Brick
P 8
5
/
8
" (220 mm) 10
1
/
2
" (267 mm) X 5" (127 mm) 4
1
/
2
" (115 mm)
GAS RATING - NATURAL
BRT4336TMN-B, BRT4536TMN-B BRT4342TMN-B, BRT4542TMN-B
Max. Input Rating: 40,000 Btu/Hr 45,000 Btu/Hr
Manifold Pressure: 3.5" WC (.87 kPa) 3.5" WC (.87 kPa)
Minimum Supply Pressure: 4.5" WC (1.12 kPa) 4.5" WC (1.12 kPa)
Maximum Supply Pressure: 10.5" WC (2.62 kPa) 10.5" WC (2.62 kPa)
Orifice Size: # 31 # 29
GAS RATING - PROPANE/LP
BRT4336TMP-B, BRT4536TMP-B BRT4342TMP-B, BRT4542TMP-B
Max. Input Rating: 40,000 Btu/Hr 45,000 Btu/Hr
Manifold Pressure: 10" WC (2.50 kPa) 10" WC (2.50 kPa)
Minimum Supply Pressure: 11" WC (2.74 kPa) 11" WC (2.74 kPa)
Maximum Supply Pressure: 13" WC (3.23 kPa) 13" WC (3.23 kPa)
Orifice Size: # 52 # 50
To Next Page
