Superior SSBV-3530CNE - Log Placement Instructions

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
9

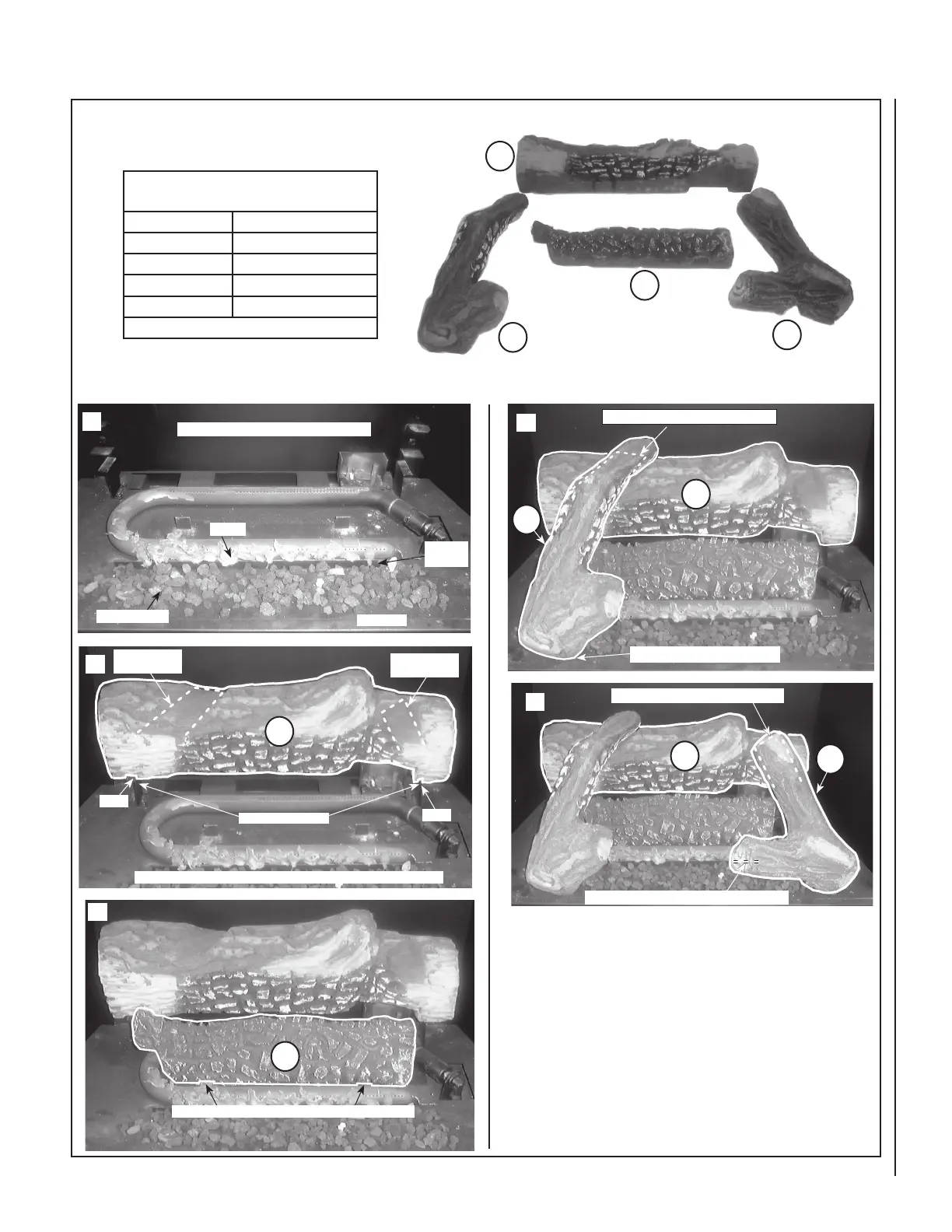

Figure 13
MODEL SSBV-3530
Log Placement Instructions
LOG SET
Catalog Number H3367
* Item Description
A Log, Rear
B Log, Top Left
C Log, Center
D Log, Top Right
* Item "letters" above correspond to photos
B
C
D
A
Install the Embers, Volcanic Stone and Logs in the order
shown here (1 through 6) and per the instructions on Page 8.
A
Notch
Notch
2
C
3
Notches on bottom of log (C) fits over 2 locating brackets
Top fork on log (B) fits into notch on log (A)
B
A
4
D
A
5
Top fork on log (D) fits into notch on log (A)
Place Embers & Volcanic Stone as Shown
1
Volcanic Stone
Embers
Locating Brackets
Notch for top
right log (D)
Notch for top
left log (B)
The 2 notches on the bottom of log (A) rest on the locating brackets
Sub-Floor
Sub-Floor
Flange
Bottom Fork of log (D) rests on Sub-Floor Flange
Bottom of log (B) rests on Sub-Floor
