Superior VRT2036B - Page 16

www.SuperiorFireplaces.US.com
126715-01A16
INSTALLATION
Continued
OPTIONAL OUTSIDE AIR KIT
(MODEL AK4/AK4F)
Installation of outside air kit should be per-
formed during rough framing of replace due
to the nature of it's location. Outside combus-
tion air is accessed through a vented crawl
space (AK4F) or through a sidewall (AK4).
See Figure 17.
CAUTION: Combustion air
inlet ducts shall not terminate
in attic space.

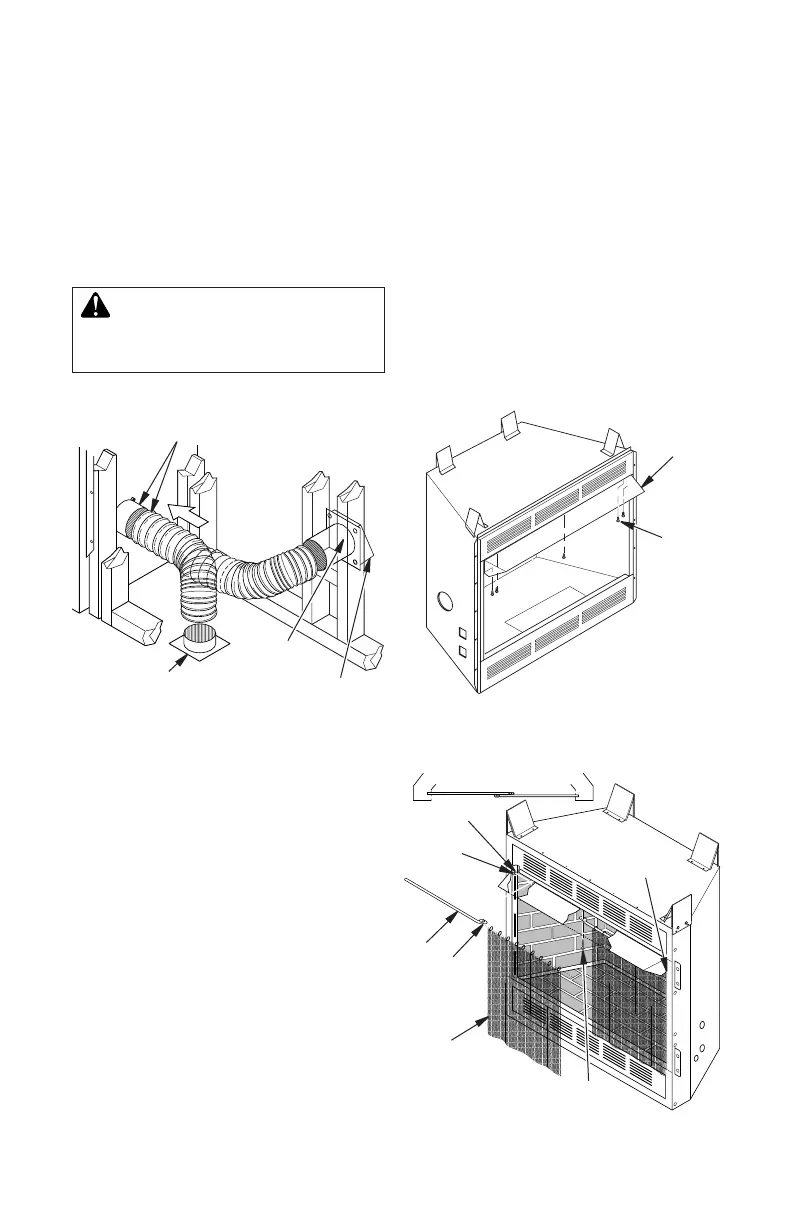

Figure 17 - Outside Air Kit
Secure to Collars with Metal Tape, Screws
or Straps (Min. of 1/4" x 20" in size)
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required for
Wall Installation
Air Inlet
Eyebrow
Vented Crawl Space
(Check Local Codes
Before Installing in a
Vented Crawl Space)
Screws
Hood
INSTALLING FIREPLACE HOOD
AND SCREEN
1. Attach hood to rebox using screws pro-
vided (see Figure 18).
2. Insert each rod through all rings located
at top of screen.
3. Insert rst rod into rear hole in left side
of rebox. Fasten rod to rear hole near
center of rebox using #10 x 3/8" Phillips
screw provided (see Figure 19).
4. Insert other rod into front hole on right
side of rebox and fasten using remaining
Phillips screw.
Figure 18 - Screw and Hood Placement
(Model May Vary From Illustration)
Figure 19 - Installing Fireplace Screen
(Model May Vary From Illustration)
Screw
Rear Hole
Top View of Rod Layout
Rod
Front
Hole
Ring
Screen
Identication
Label Location
