LOCATING FIREBOX
PLANNING
Plan where you will install the rebox. This will
save time and money later when you install
the rebox. Before installation, consider the
following:
1. Where the rebox will be located. Allow for
wall and ceiling clearances (see Installa-
tion Clearances, page 9).
PRODUCT SPECIFICATIONS

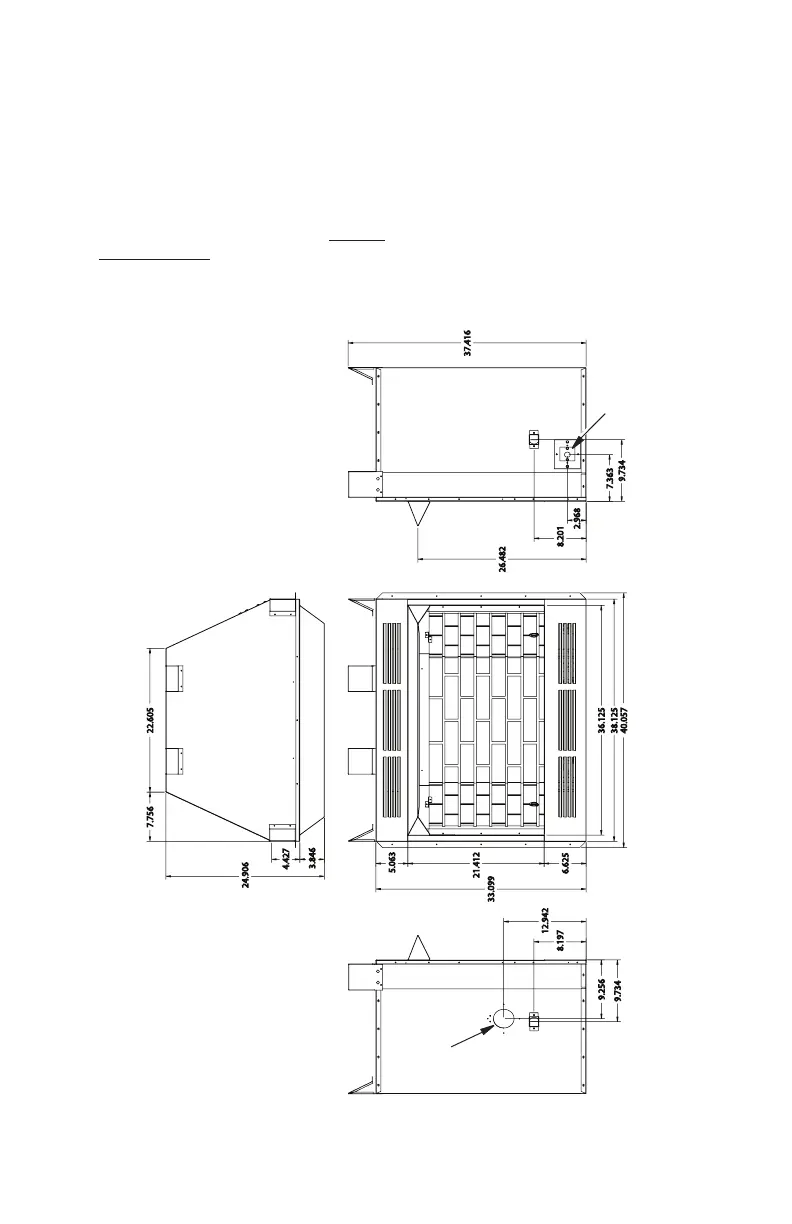

Figure 1 - Firebox Dimensions 36'' Models
Right Side View Right Side View
Firebox Top View
Front View
Outside Air
Kit Location
(Optional)
2. Everything needed to complete installation.
3. These models CANNOT be installed in a
bedroom unless the maximum Btu rating
of the installed vent-free log set is less
than 10,000 Btu/hr.
4. Proper air for combustion and ventilation
(page 6).
36" MODELS
Electrical
Outlet
To Next Page
