SuperLightingLED K-1000C - Conventional IC Lamp Wiring; DAT;CLK;GND Wiring

Version V1.3

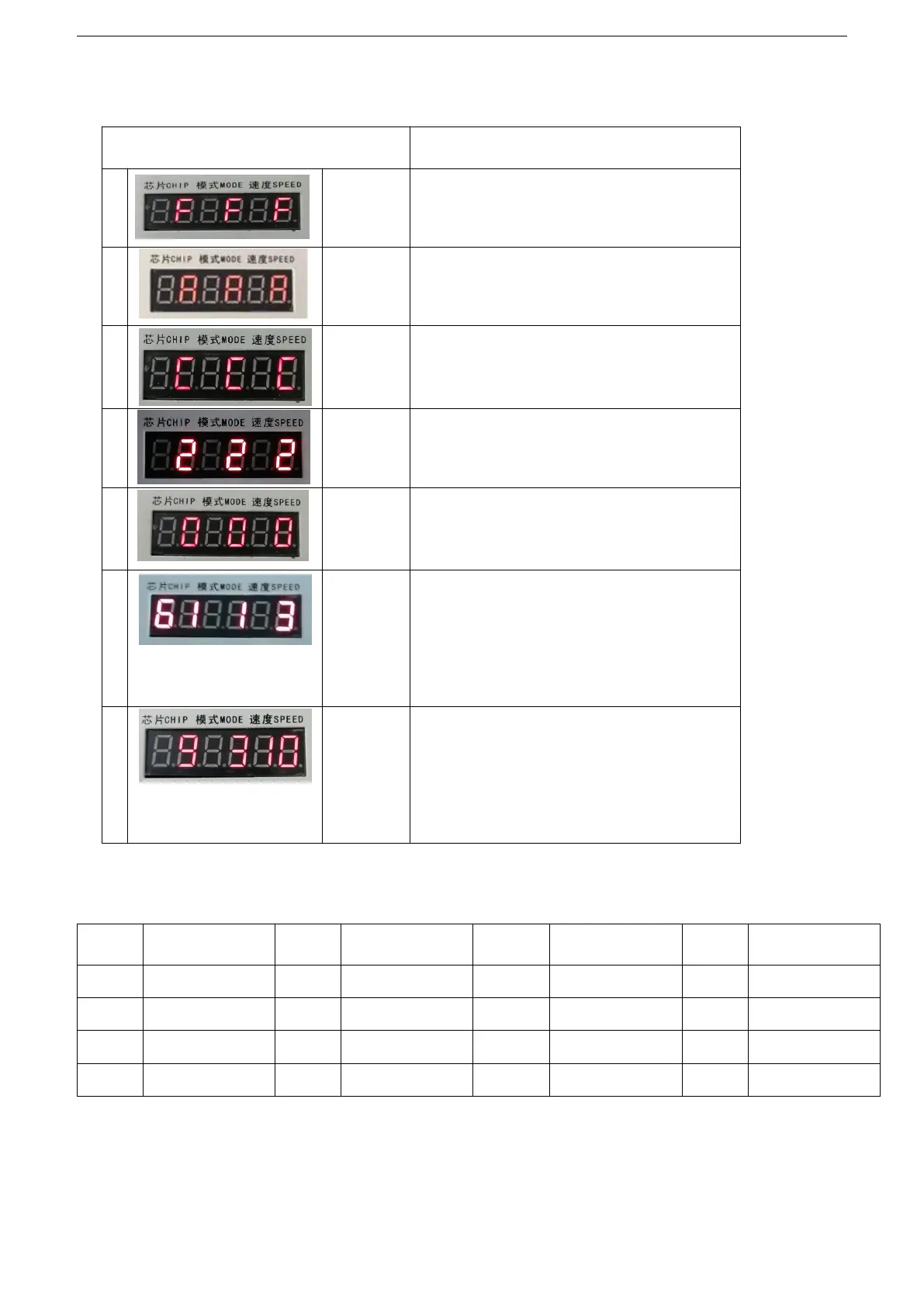

3. Display vocabulary (six digit screen)
Display
Definition
1
F_F_F
Card reading error
2
A_A_A
DMX512 write address
3
C_C_C
Effect loop playback
4
2_2_2
Cascaded control
5
0_0_0
Enter DMX lamp address test / parameter
write
6
Write code interface Chip display: DMX512IC
code 61-80
Mode display: No definition Speed bit: Number
of channels 0-99
7
Play interface Chip display: onboard IC code
0-23
Mode display: Program serial number Speed:
1-16 level
4. Speed grade corresponding to frame rate:
Speed
Frame/second
Speed
Frame/second
Speed
Frame/second
Speed
Frame/second
1
4 Frame
5
8 Frame
9
14 Frame
13
23 Frame
2
5 Frame
6
9 Frame
10
16 Frame
14
25 Frame
3
6 Frame
7
10 Frame
11
18 Frame
15
27 Frame
4
7 Frame
8
12 Frame
12
20 Frame
16
30 Frame
五、Conventional IC lamp wiring DAT/CLK/GND
