The Superlux E205U is a high-quality USB condenser microphone designed for digital recording. It features an advanced A/D and USB interface, enabling instant digital recording without the need for external digital interfaces or software drivers. The microphone is compatible with Mac, Windows, and most Digital Audio Workstation (DAW) software programs, including GarageBand.

Function Description:

The E205U provides premium quality audio recording with ease and mobility. It includes a headphone output and volume control for real-time monitoring. The USB Power Indicator lights up when the USB connection is established and the microphone is receiving power. The Headphone Volume Control is a pop-out level control that adjusts the overall volume of the headphone output. The Headphone Output Jack is a 1/8-inch (3.5mm) stereo jack for connecting headphones or studio monitors. The USB connector is a USB B-type, allowing connection to a laptop with a USB A-type jack.

Important Technical Specifications:

Type: Back Electret Condenser
Polar Pattern: Supercardioid
Frequency Response: 30-18,000 Hz
Sensitivity (at 1k Hz Open Circuit Voltage): -38 dBV/Pa (12.6 mV)
Max. SPL: >135 dB SPL
Power Requirements: USB 5V, 30 mA
Resolution: Up to 16 bit/48 kHz sampling rate
Finish: Champagne silver
Connectors: USB B-TYPE, 1/8" (3.5mm) phone connector
Dimensions: Ø54 x 150 mm (Ø2.13" x 5.9")
Net Weight: 422 g (14.9 oz)

System Requirements:

USB: USB 1.1 or 2.0, powered
RAM: 64MB RAM (minimum)
Operating System:
- Microsoft Windows 7
- Microsoft Windows 10
- Microsoft Windows 2000 Professional Edition
- Microsoft Windows XP Home / Professional Edition (service pack 1.0 or later, or use the USB audio driver update from Microsoft)
- Microsoft Windows Vista™ Business Edition
- Apple Computer Mac OS X 10.0 or later Edition
- Apple Computer Mac OS X 10.1 or later Edition

Usage Features:

Smooth, flat frequency response: Ensures accurate audio capture.
Plug and play: No drivers required for immediate recording.
USB powered: Eliminates the need for an external power supply.
Headphone output and volume control: Allows for direct monitoring of audio.
Pivoting stand mount: Provides flexibility in positioning the microphone.
9.8 ft. (3-meter) USB cable: Offers ample length for various setups.
Versatile installation: Can be placed on a table using an optional table stand (HM6) or mounted on a microphone stand.
Quick Start Guide: Provides clear instructions for setting up and recording, including:
- Positioning the microphone with the grille net side towards the sound source and the Superlux logo/LED indicator facing the sound source.
- Connecting the USB cable to the microphone and a powered USB port on the computer.
- Setting up a mono record track in the DAW.
- Adjusting the microphone's input level in Windows Sound playback or Mac OS System Preferences.
- Adjusting the headphone output volume for comfortable listening.

Furnished Accessories:

YA2 threaded adapter
HM85 pivoting stand mount
Pouch
3-meter cable (USB A-type connector for laptop; for other connector types like C-type, an adapter is needed)
DS01 Table stand

Maintenance Features:

Troubleshooting Guide: Addresses common issues:
- No sound in headphones: Check headphone volume control and microphone gain at the computer control panel.
- Microphone sound too weak or distorted:
  - Windows: In Audio tab, click Volume under Record and turn up Microphone Gain Control.
  - Mac: From System Preferences, choose Sound, select Input tab and turn up Input gain.
- Headphones not loud enough:
  - Windows: In Audio tab, click Volume under Sound playback and turn up Volume Control.

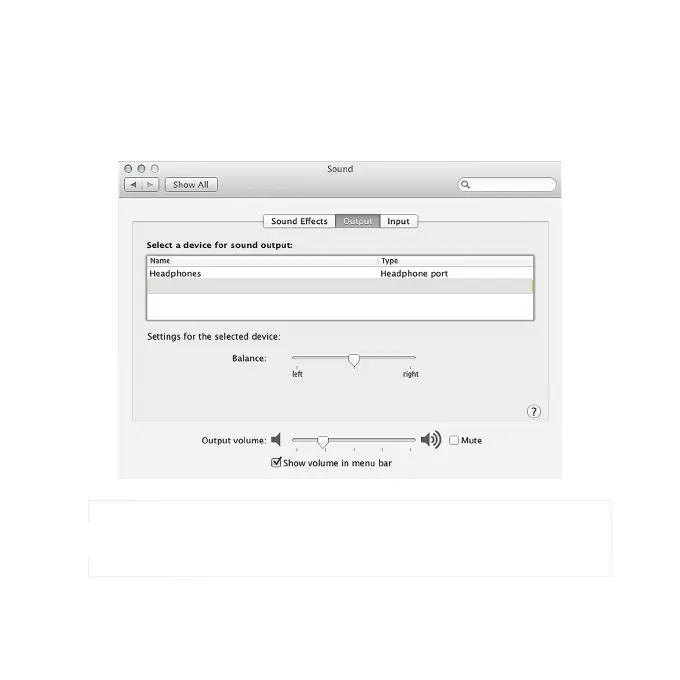

  - Mac: From System Preferences, choose Sound, select Output tab and turn up Output volume.

Limited Warranty:

Superlux Enterprise provides a one-year warranty from the purchase date for material and manufacturing quality. The warranty period may vary by country/area. Contact a local distributor for more information. The warranty covers repair or replacement of parts for material, manufacturing, or functional defects. The warranty is valid only for products sold by authorized Superlux distributors or agents.

Exclusions from Warranty:

Damage caused by accident, abuse, improper instructions, self-modification, repair, or transportation.
Non-compliance with manual instructions.
Repairs by unauthorized companies or distributors.
Unidentified, modified, or removed serial number stickers.

All repairs must be performed by authorized Superlux repair centers, distributors, or agents. To claim warranty service, provide the selling receipt from an authorized distributor or agent. For warranty inquiries, contact an authorized distributor, agent, or email support@superlux.com.tw.

Safety Warnings:

Do not expose the unit to rain or liquids to prevent fire or electric shock.
Do not attempt to modify the product to avoid personal injury or product failure.
Do not subject the cable to extreme force or pull on it to prevent product failure.
Keep the product and associated equipment dry, and avoid exposure to extreme high temperatures and humidity.
