USING THE AIR CLEANER ON A BENCH OR FLOOR SURFACE

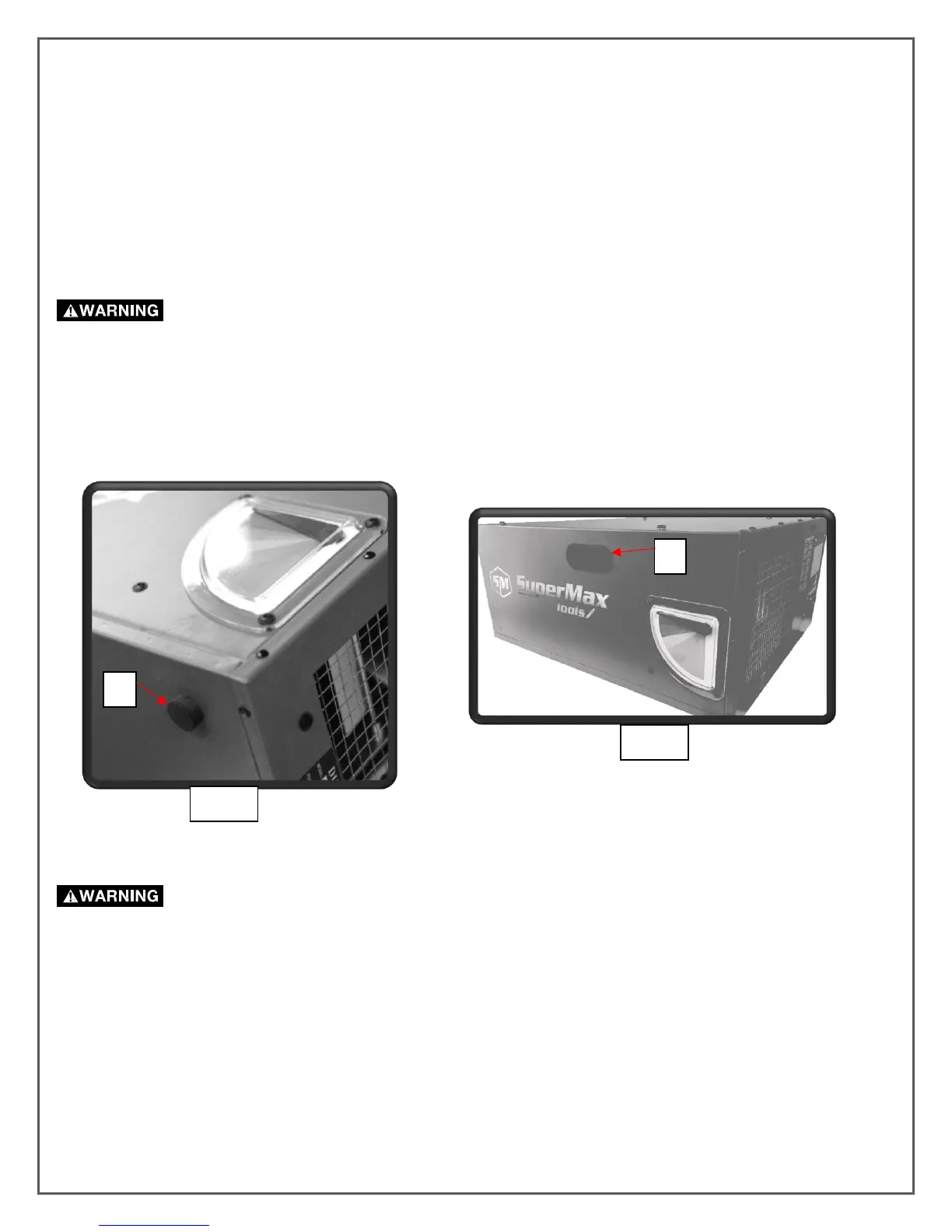

Locate (4) self-adhesive rubber feet (A) Fig. 3 supplied with the unit. Carefully place the
Air Cleaner on a firm supporting surface with access to the bottom of the cabinet. Apply
a self-adhesive rubber foot (A) Fig. 3 to the bottom at each corner of the air cleaner
cabinet. The rubber feet will help eliminate vibration and will prevent the possibility of
the air cleaner “walking” across the floor or work surface.
For operator safety, clamp the unit to a work bench or position it securely
on sawhorses.
The air cleaner cabinet has convenient lifting handles located on either side (one of
which is shown at (A) Fig. 4). To avoid damage to the air filters, carry the air cleaner with
the filters positioned away from your body.
MOUNTING AIR CLEANER TO THE CEILING OR OVERHEAD SUPPORT
This unit weighs approximately 60 pounds. When mounting overhead, be
certain that the unit is securely fastened and supported.
1. Locate the four 1" eye bolts and the four 5/16" Flange nuts supplied with the unit.
2. Use a flat blade screwdriver (not supplied) to remove the four screws (C) Fig. 5 from
the top of air cleaner (D).
3. Thread one flange nut on each bolt approximately 5/16".
4. Thread the eye-bolts (F) Fig. 6 into the four holes where the screws were removed in
STEP 2.
