Super AOC-STG-b4S Add-on Card User's Guide
NC-SI Header
A Network-Controller Sideband Interface (NC-SI) header is located at JNCSI on
the add-on card. Connect an appropriate cable from this header to a motherboard
to provide the out-of-band (sideband) connection between the onboard Baseboard
Management Controller (BMC) and a Network Interface Controller (NIC) for remote
management. For the network sideband interface to work properly, you will need
to use a motherboard that supports NC-SI with a special cable. Please contact
Supermicro at www.supermicro.com to purchase the cable for this header. See the
layout below for the location.

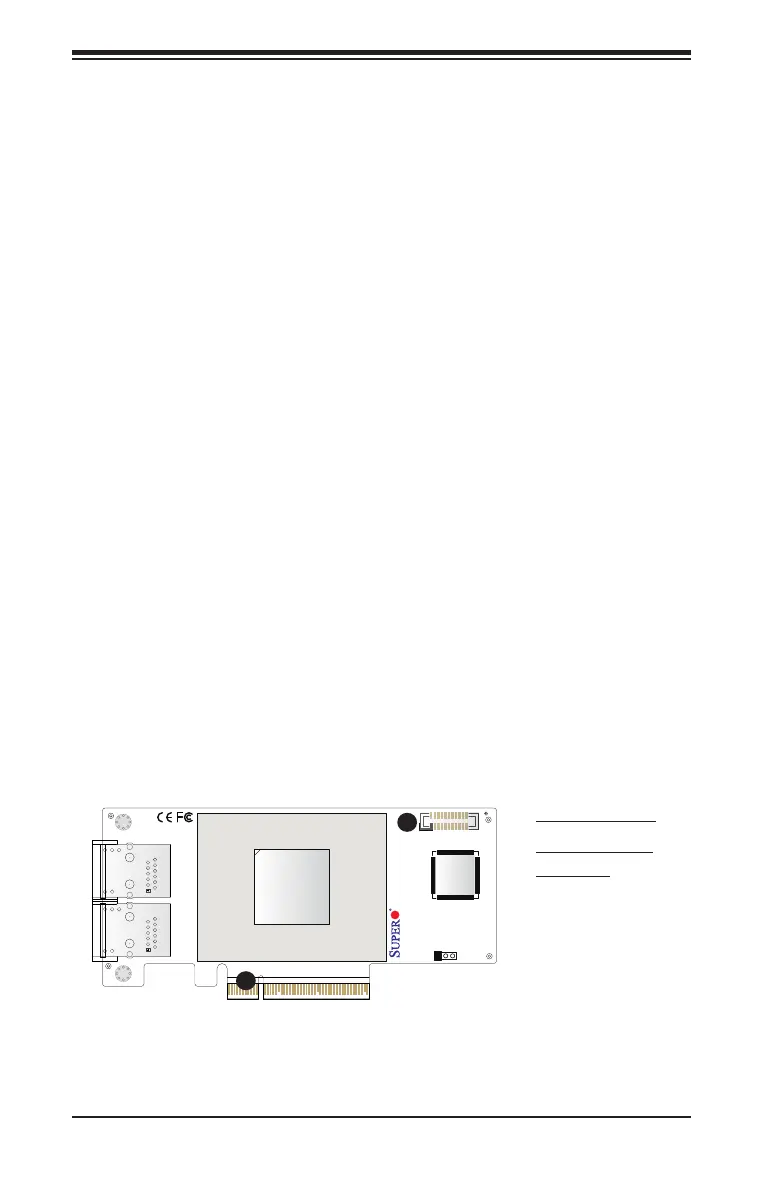

2-4 NC-SI Header & PCI-E 3.0 x8 Connector
PCI-E 3.0 x8 Connector
A PCI-E 3.0 x8 connector is located at JGF1 on the add-on card. Insert this con-
nector into a PCI-E 3.0 x8 slot on a motherboard to use the AOC-STG-i4T add-on
card. See the layout below for the location.
Broadcom
BCM 57416
JLAN1
JP1
JLAN2
JNCSI1
LAN Port 1LAN Port 2
AOC-STG-b2T REV:1.00 DESIGNED IN USA
2
I
1. NC-SI Header
2. PCI-E 3.0 x8
Connector
