Chapter 2: Installation
CPU1
BIOS LICENSE
MAC CODE
BAR CODE
JTPM1
JPCIE3
JPCIE1
JPCIE6
JPCIE4
JPCIE2
JPCIE5
JRK1
JPWR3
JPI2C1
JPWR2JPWR1
JF1
JL1
JSTBY1
BT1
T-SGPIO3
JWD1
JPME2
JPL1
JIPMB1
LE1
LEDM1
JBT1
FAN4 FAN3
FAN1FAN2
FAN5
FANA
FANB
VGA
LE2
P1-DIMMA2
P1-DIMMA1
P1-DIMMB1 P1-DIMMC1
P1-DIMMF1
P1-DIMME1
P1-DIMMD1
P1-DIMMD2
P2-DIMMB1
P2-DIMMA1
P2-DIMMA2
P2-DIMMD2 P2-DIMMD1 P2-DIMME1 P2-DIMMF1
BMC
LAN CTRL
FAN6
BIOS
JP4
JM2_1
JP2
LE3
A
JD1
M.2-PCH
A
C
JPG1
JNVI2C2
S-SATA5
S-SATA4
(3.0)
USB 7/8
(3.0)
USB 6
USB 2/3
COM2
CPU1 SLOT1 PCI-E 3.0 X8
CPU1 SLOT2 PCI-E 3.0 X16
CPU1 SLOT3 PCI-E 3.0 X8
CPU2 SLOT4 PCI-E 3.0 X16 CPU2 SLOT5 PCI-E 3.0 X16
CPU2 SLOT6 PCI-E 3.0 X16
UID
LAN2 LAN1
USB0/1
(2.0)
USB4/5 (3.0)
IPMI_LAN
COM1
S-SATA 0~3
I-SATA 4~7
I-SATA 0~3
CPU2
(2.0)
Rev. 1.21
PCH
P2-DIMMC1
X11DPi-N(T)
JNVME1
JNVME2
JNVI2C1
Power Button
UID LED
NIC1 Active LED
Reset Button
HDD LED
PWR LED
Reset
PWR
3.3V Stby
3.3V Stby
Ground
19
X
Ground
X
3.3V Stby
20
12
Ground
Power Fail LED
NIC2 Active LED
NMI
3.3V
3.3V
OH/Fan Fail LED

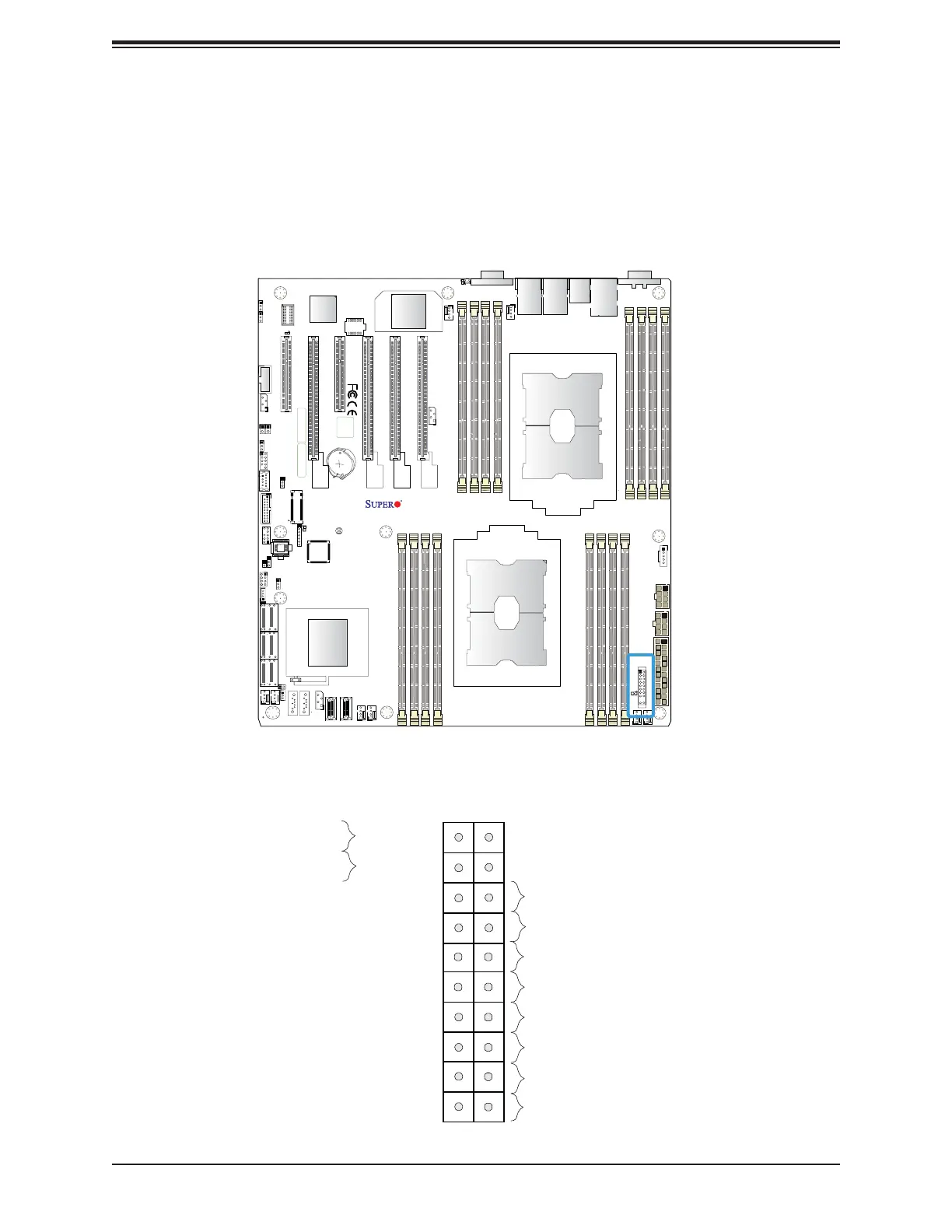

Figure 2-3. JF1 Header Pins
2.6 Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally located on a
control panel at the front of the chassis. These connectors are designed specifi cally for use
with Supermicro chassis. See the fi gure below for the descriptions of the front control panel
buttons and LED indicators.
