2.5 Rear I/O Ports

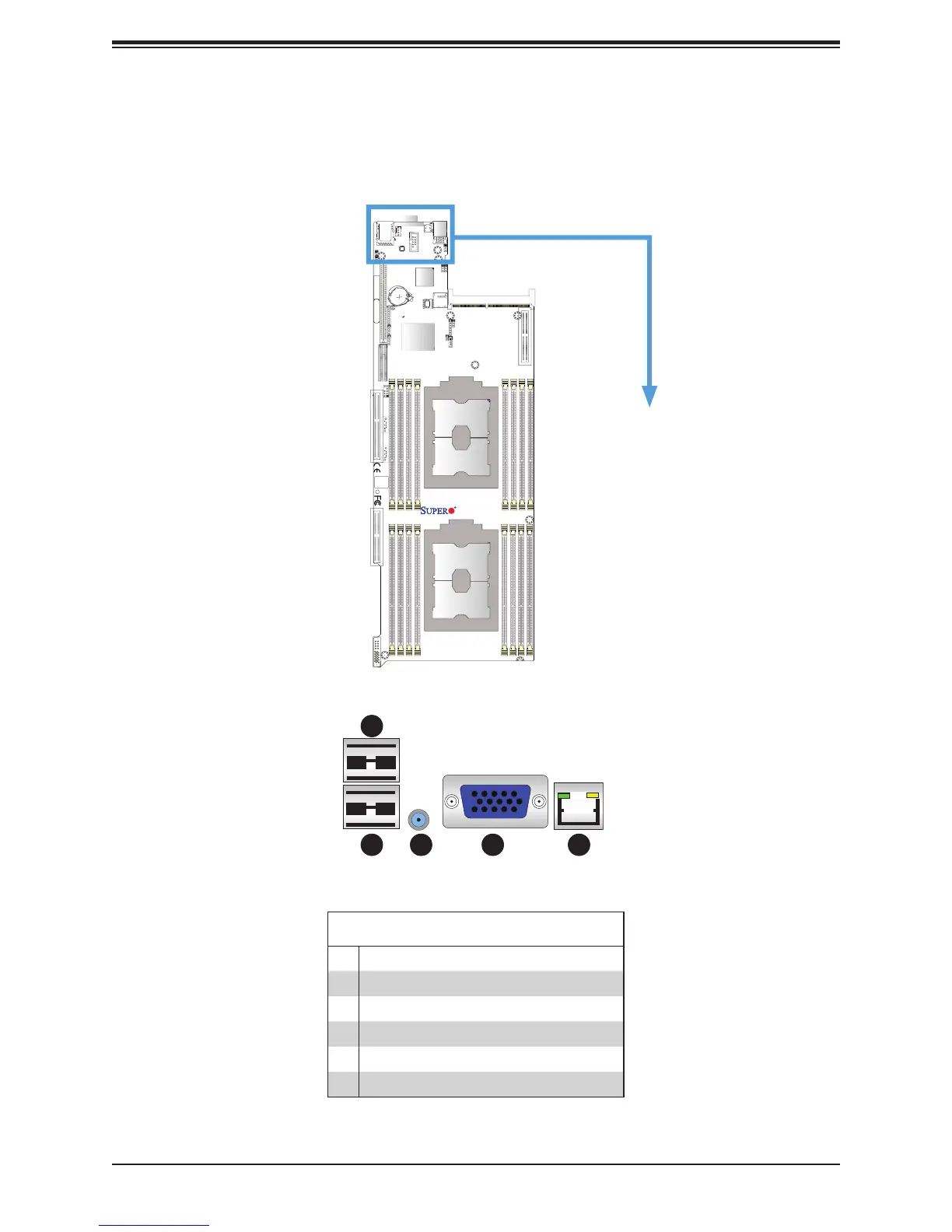

See the layout below for the locations and descriptions of the various I/O ports on the rear
of the motherboard.
I/O Port Locations and Defi nitions
Rear I/O Ports
# Description
1. USB 0 (3.0)
2. USB 1 (3.0)
3. Unit Identifi er (UID) Switch (JUIDB1)
4. VGA
5. IPMI_LAN
1 543
2
