Onboard Fan Header
One 4-pin fan headers (FAN3) are located on the motherboard to provide CPU/system
cooling. These fan headers support both 3-pin fans and 4-pin fans; however, onboard fan
speed control is available only when all 4-pin fans are used in the motherboard. Fan speed
control is supported by a thermal management setting in the BMC (Baseboard Management
Controller). See the table below for pin defi nitions.
Headers
Fan Header
Pin Defi nitions
Pin# Defi nition
1 Ground (Black)
2 +12V (Red)
3 Tachometer
4 PWM Control

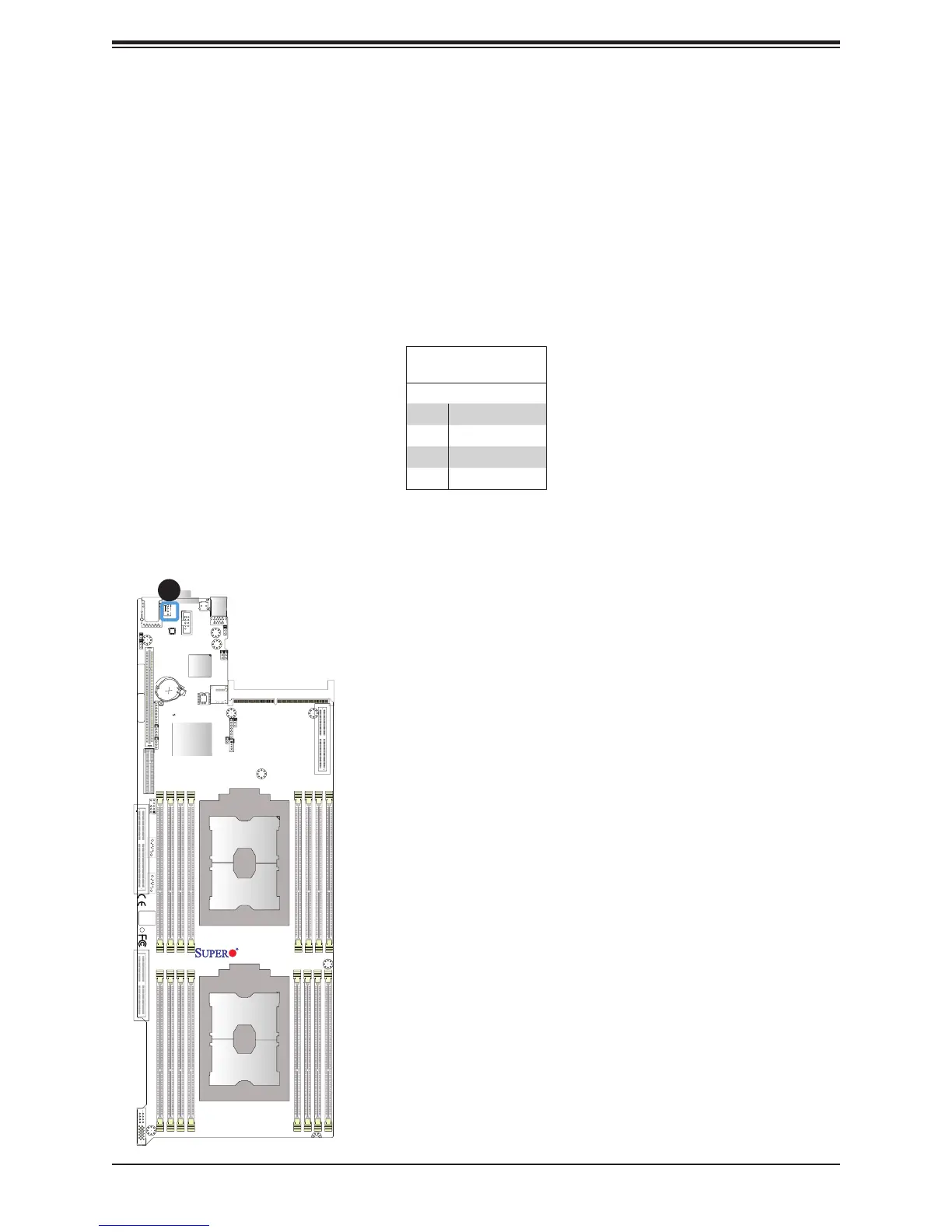

1. FAN3
1
