Chapter 2: Installation
P5 S20
S1
BIOS
LICENSE
MAC CODE
BAR CODE
P1-DIMMF1
P1-DIMME1
P1-DIMMD1
P1-DIMMD2
P2-DIMMC1
P2-DIMMB1
P2-DIMMA1
P2-DIMMA2
P2-DIMMD2
P2-DIMMD1
P2-DIMME1
P2-DIMMF1
P4
JHS1
JPME1
JBT1
FAN3
SXB4
SXB1
UID_LED1
JUIDB1
JSIOM1
SXB3_1
SXB2
SXB3_2
I-SATA5
JCPLD1
JRK1
BT1
JTPM1
JSDCARD1
PHY
I-SATA4
HDD_LED
I-SATA0~3
S-SATA0~5
IPMI_LAN
CPU1 PCI-E 3.0 X16
CPU2 PCI-E 3.0 X8
CPU1 PCI-E 3.0 X8
CPU2 PCI-E 3.0 X16
BMC_HB_LED
BATTERY
COM1
BIOS
BMC
BMC SD CARD
SIOM:CPU1 PCI-E 3.0 X16
CPU1
CPU2 PCI-E 3.0 X16
P1-DIMMA2
P1-DIMMA1
P1-DIMMB1
P1-DIMMC1
CPU2
X11DPT-PS
Rev. 1.10
JVRM1/JVRM2
PCH
JWD1
VGA
USB 0/1 (3.0)
CMOS Clear

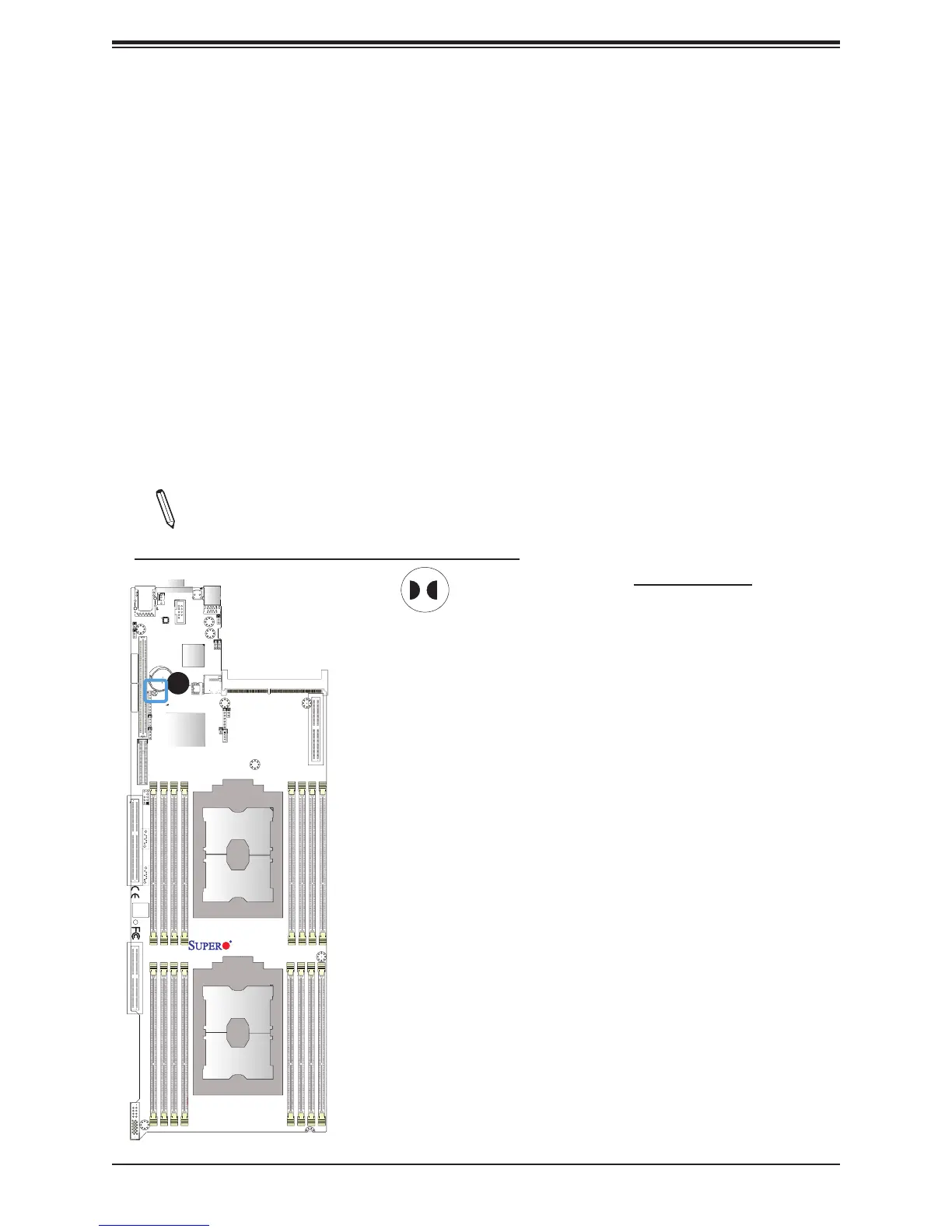

JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper
consists of contact pads to prevent accidentally clearing the contents of CMOS.
To Clear CMOS
1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four
seconds.
5. Remove the screwdriver (or shorting device).
6. Replace the cover, reconnect the power cord(s), and power on the system.
Note: Clearing CMOS will also clear all passwords.
Do not use the PW_ON connector to clear CMOS.
JBT1 contact pads
1
1. Clear CMOS
