30
X11SSH-F/-LN4F User Manual

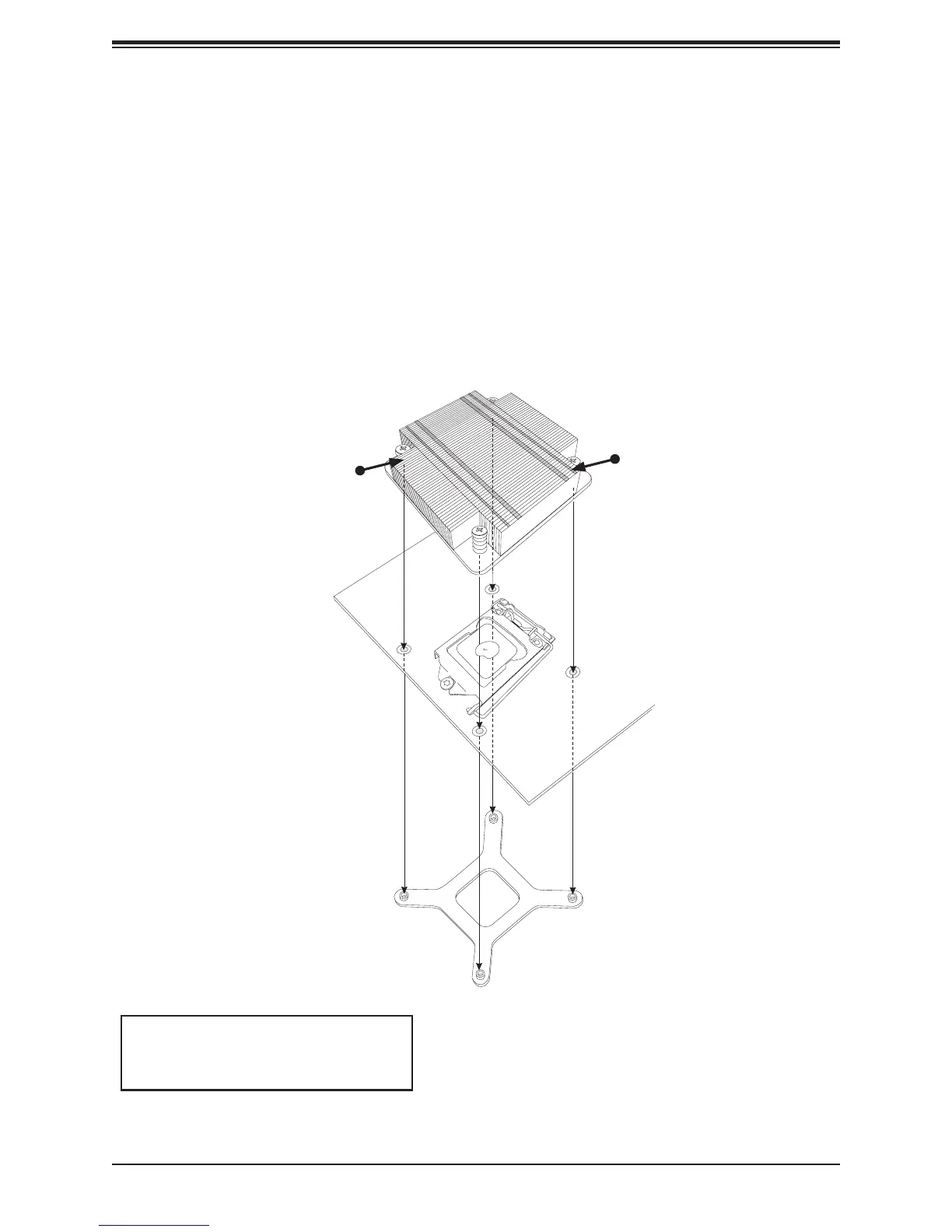

Installing a Passive CPU Heatsink
1. Do not apply thermal grease to the heatsink or the CPU die; the required amount has
already been applied.
2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with
those on the motherboard and the underlying heatsink bracket.
3. Screw in two diagonal screws (the #1 and #2 screws in the gure below) until just snug.
To avoid possible damage to the CPU, do not over tighten the screws.
4. Finish the installation by fully tightening all four screws.
Mounting Holes
Screw#1
Heatsink Bracket
Screw#2
Motherboard
Recommended Supermicro heatsink:
SNK-P0046P passive heatsink
(1U chassis)
