X11SSH-F/-LN4F User Manual

J7 J8

FAN4

JPWR2

JPWR1

JPL1

JPL3

I-SATA3

I-SATA2

JSD2

JSD1

JL1

LAN 1/3

LAN 2/4

USB 6/7

(3.0)

COM 1

JOH1

JUIDB1

DIMMB2

DIMMB1

DIMMA2

DIMMA1

J23

SP1

USB 2/3

JI2C2

JI2C1

JPB1

JPME2

JPG1

BAR CODE

MAC CODE

IPMI CODE

I-SGPIO2

I-SGPIO1

Intel PCH

USB 0/1

IPMI_LAN

VGA

LED BMC

COM2

JPL2

JPL4

JPI2C1

FAN1

FAN2

LED PWR

JSTBY1

JWD1

FAN3

FANA

JF1

USB 8/9

(3.0)

USB 10

(3.0)

USB 4/5

JTPM1

JBT1

JIPMB1

JD1

JBR1

PCH SLOT4 PCI-E 3.0 x4in x8

CPU SLOT5 PCI-E 3.0 x8

CPU SLOT6 PCI-E 3.0 x8in x16

BIOS

LICENSE

BMC

LE1

I-SATA7

I-SATA6

I-SATA5

I-SATA4

I-SATA1

I-SATA0

LE3

X11SSH-F/-LN4F

REV:1.01

Designed in the USA

JVRM2

BT1

CPU

Trusted Platform Module Header

Pin Denitions

Pin# Denition Pin# Denition

1 LCLK 2 GND

3 LFRAME# 4 <(KEY)>

5 LRESET# 6 +5V

7 LAD3 8 LAD2

9 +3.3V 10 LAD1

11 LAD0 12 GND

13 SMB_CLK 14 SMB_DAT

15 +3V Stdby 16 SERIRQ

17 GND 18 CLKRUN#

19 LPCPD# 20 LDRQ#

TPM/Port 80 Header

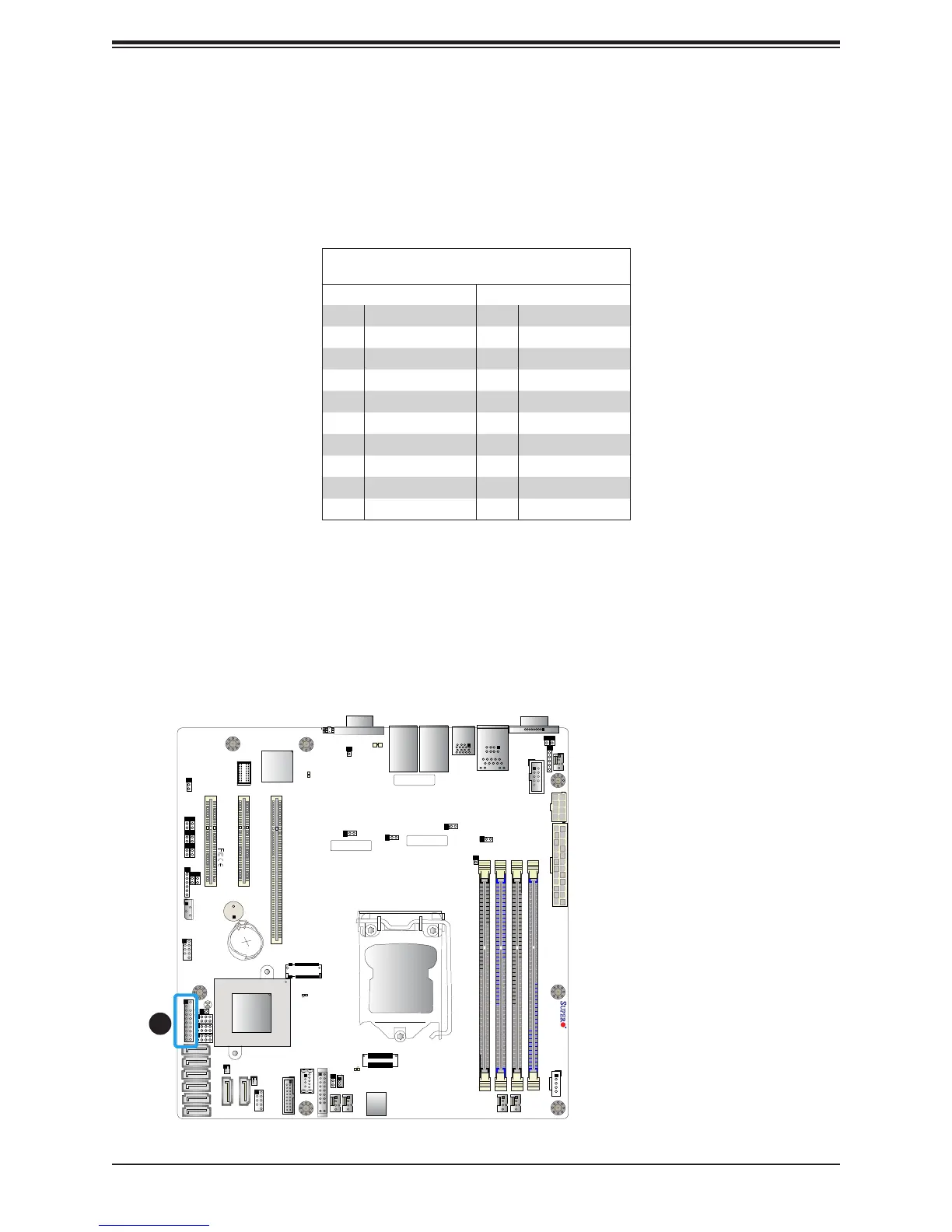

A Trusted Platform Module (TPM)/Port 80 header is located at JTPM1 to provide TPM support

and Port 80 connection. Use this header to enhance system performance and data security.

Refer to the table below for pin denitions.

1. TPM Header
