Chapter 2: Installation

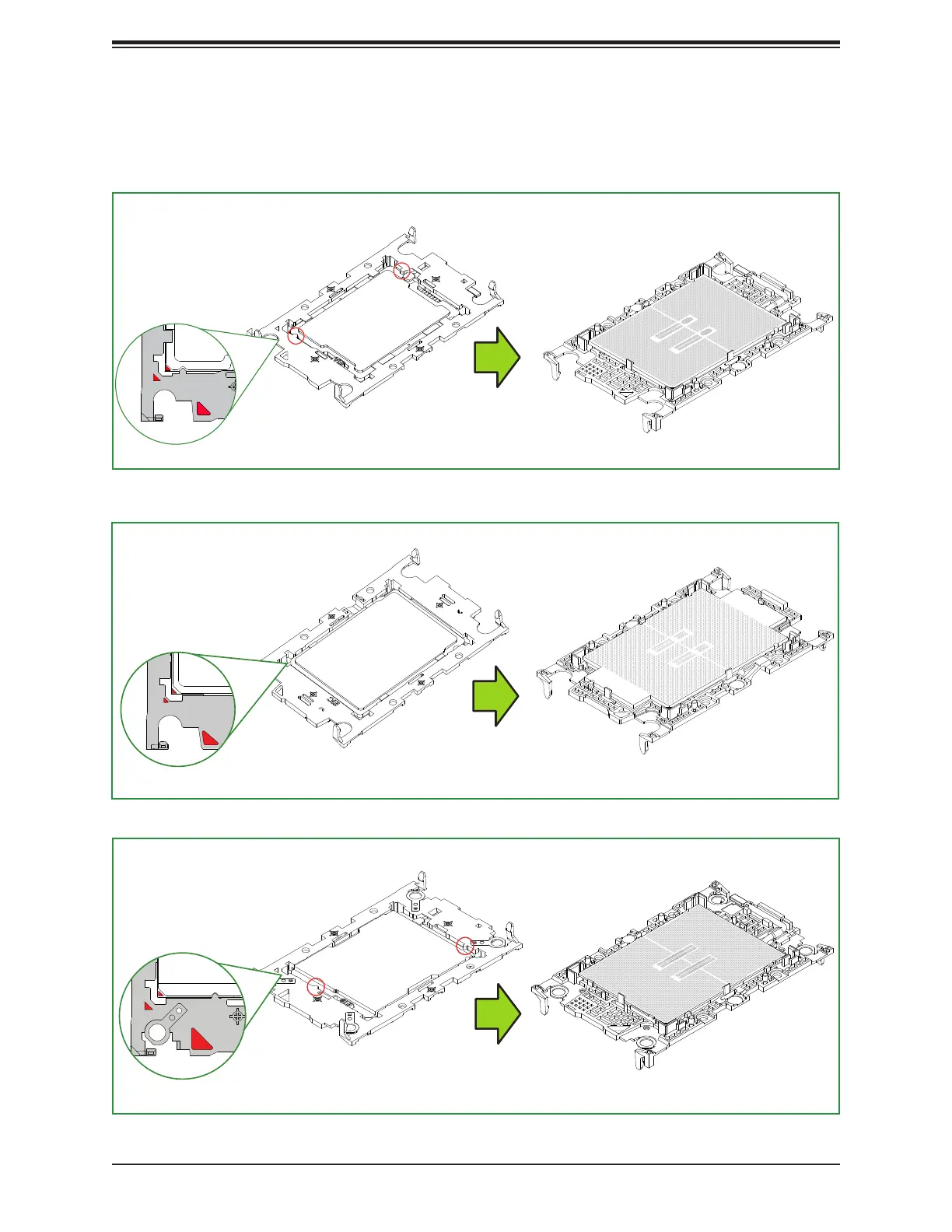

6. After the processor is placed inside the carrier, examine the four sides of the processor,
making sure that the processor is properly seated on the carrier.
CPU Carrier Assembly
(Top View)
(Component View)
CPU Carrier Assembly
(Top View)
(Component View)
CPU Carrier Assembly
(Top View)
(Component View)
SP XCC
SP MCC
Max Series (HBM)
