ENGLISH
10

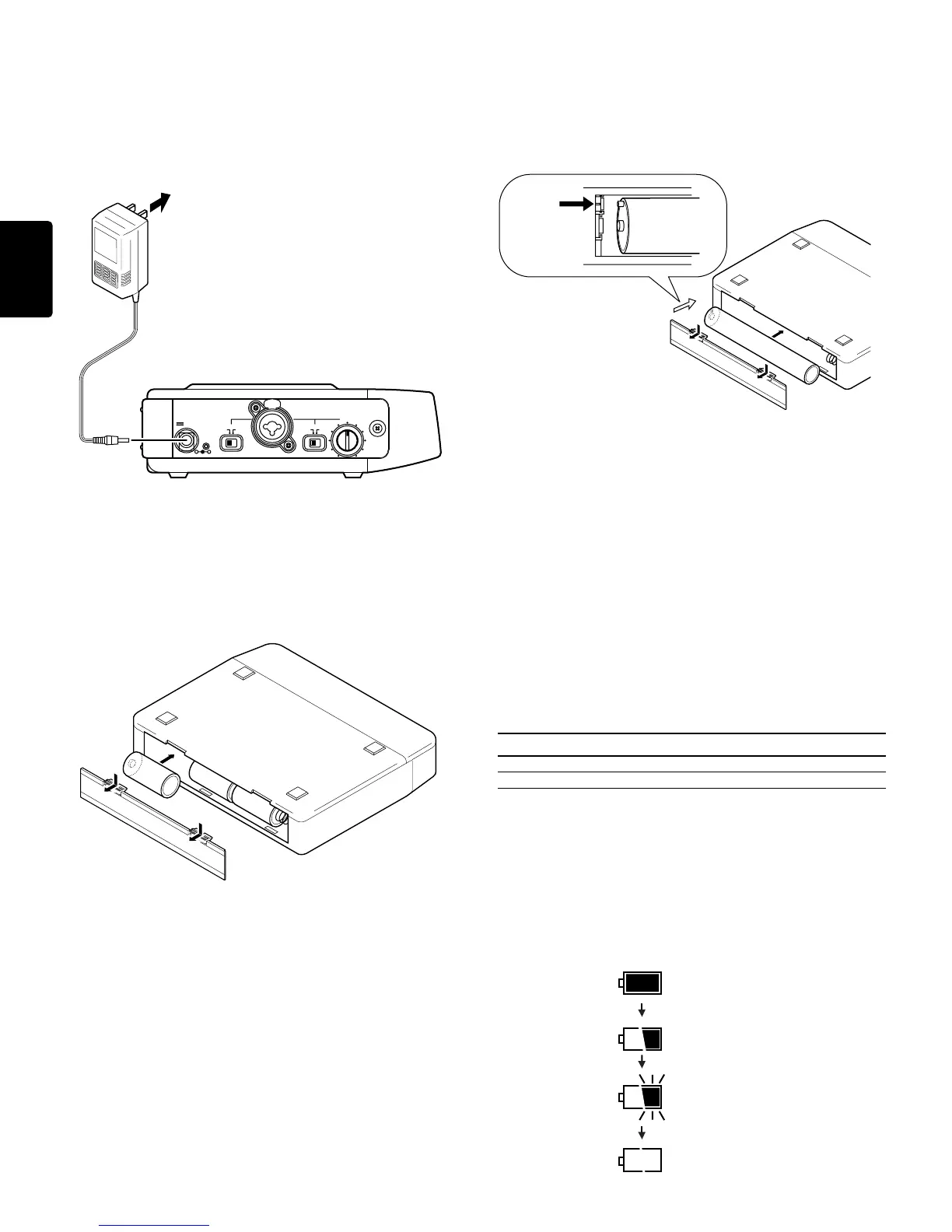

Rechargeable Ni-Cad Battery Pack (optional)
The PSD220/230 can operate using an optional Ni-Cad rechargeable
battery pack (model RB430).
Refer to the following illustration to install the battery pack.
Be sure the battery pack is fully charged before use.
To charge the battery pack
1. Make sure the Ni-Cad battery pack is loaded as shown above.
2. Connect the AC adapter to a wall power outlet (see AC Adapter
Operation section on this page).
3. Turn the power on using the POWER switch.
4. Press the STOP button twice so that the "CHARGE" message is
displayed and the CHARGE LED on the side panel flashes.
5. When the CHARGE LED becomes steadily lit, the battery is fully
charged.
Notes
¡ A full charge takes approximately 6 hours.
Battery Life
Battery type Playback
Alkaline batteries about 2.0 hours
Optional Ni-Cad battery about 3.0 hours
Notes
¡ Battery life will vary depending on the conditions under which the unit
is operated (environmental temperature, humidity, speaker usage,
etc.).
Battery Life Indicator
POWER SUPPLY
AC Adapter Operation
Connect the supplied AC adapter (model AD200) to the DC IN of the
PSD220/230. Then connect the other end of the AC adapter to a wall
power outlet.
Battery Operation
Open the battery case and insert three alkaline batteries (SIZE “D”),
making sure to observe the correct polarity (+ and –) indications.
The battery power condition is shown on the top right corner of the
display. See the Battery Life Indicator section on this page for more
details.
Notes
¡ Remove the batteries when the PSD220/230 is not going to be used
for a long period of time.
CAUTION
Discard used batteries according to the battery manufacturer’s in-
structions.
ª
·
MIC/LINE IN
LEVEL
DC IN
LINE MIC
CHARGE
SPLITMIX
-
+
4.5V
PUSH
To AC outlet
Battery is full
Half of the battery
disappears:
Half of the battery
flashes:
Empty:
Battery is at full capacity
Battery is at 50% capacity
Batteries are weak
Batteries are exhausted
ª
·
