REPLACEMENT
PARTS LIST
Reference
Number Description Part Number Qty
EPi SERIES WINCH
ASSEMBLY
14
15
1 12 VDC Motor EP/EPi6.0 90-30500 1
24 VDC Motor EP/EPi6.0 90-30501 1
12 VDC Motor EP/EPi9.0 90-30502 1
24 VDC Motor EP/EPi9.0 90-30503 1
2 Motor Support Rack 90-40500 1
3 Gear Support Rack 90-40501 1
4 Drum Bushing 90-14500 1
5 Drum (3" diameter on 09332 and 09334 only) 90-30519 1
Drum 90-30517 1
6 Gear Box 90-30504 1
7 Connecting Socket 90-20500 1
8 1st Shaft 90-20501 1
9 1st Pinion 90-20502 1
10 1st Stage Carrier 90-30505 1
11 1st & 2nd Ring Gear 90-30506 1
12 2nd Stage Carrier 90-30507 1
13 3rd Stage Carrier 90-30508 1
14 3rd Ring Gear 90-30509 1
15 3rd Washer 90-20503 1
Freespool Assembly 90-20504
16 Clutch Sleeve
17 Clutch Lever
18 Pressed Spring
19 Clutch Knob
38 Spring Pin
Brake Assembly 90-30510
20 Brake Clutch Base
21 Brake Cam
23 Cone Brake Disc
24 Spiral Spring
25 Brake Cover
27 Bearing
35 C-Ring
Hardware Kit 90-14501
29 Hex. Bolt
30 Hex. Bolt
31 Hex. Bolt
32 Hex. Bolt
33 Hex. Bolt
26 Bearing 90-20513 1
36 C-Ring (2 included) 90-14502 1
37 Anit-leak Seal (2 included) 90-20505 1
40 Wire Rope - 21/64” x 125’ (non CE) 90-20515 1
41 Roller Fairlead 90-30511 1
42 Mounting Hardware 90-14503 1
43 Clevis Hook 90-20507 1
44 Remote Switch Assembly 90-33450-01 1
45 Handsaver Strap 87-31120 1
46 Pulley Block 90-20508 1
47 Control Box Left Cover 90-30512 1
48 Control Box Right Cover 90-30513 1
49 Electric Box 90-30516 1
50 Rubber Clamp 90-20510 1
51 Hex. Bolt 90-14506 1
52 Hex. Bolt 90-14507 1
53 Spring Washer 90-14508 1
54 Solenoid 12V 90-14453 1
Solenoid 24V 90-14455 1
55 Motor Lead Wire Set 90-20512 1
56 Remote Switch Socket 90-25058 1
57 Bolt 90-23032-22 1
58 Nut 90-23149-06 1
59 Rubber Cover 90-25046 1
55
11
10
46
50
12
14
37
1
55
36
9
26
15
13
37
27
17
38
21
24
18
16
19
23
35
20
48
49
3
4
5
32
4
7
2
53
52
54
47
51
29
6
33
57
40
42
43
53
52
8
51
59
41
56
58
25

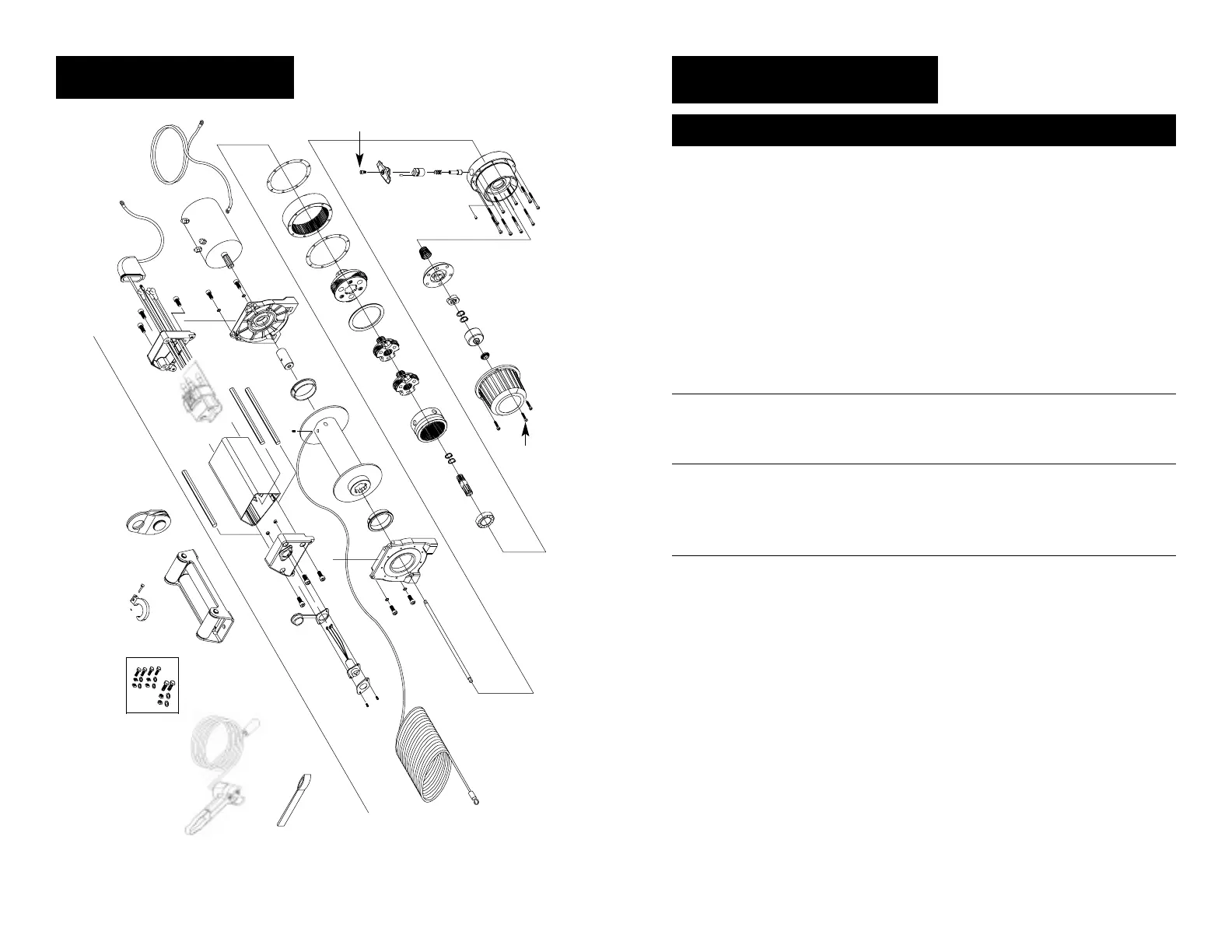

Figure 14
30
31
Freespool
Assembly
Brake
Assembly
45
44
