Superwinch SI Series - User Manual

Other manuals for Superwinch SI Series

Manual20 pages

Questions and Answers

G
Gavin RichardAug 3, 2025
How to fix a Superwinch SI system that operates slowly?
- W
  William PriceAug 3, 2025
  If the Superwinch Other system operates slowly, check the relief valves and adjust them according to the pump manual. Also, tighten all fittings. If the oil viscosity is too high or the oil is cold, use the recommended oil, fill the reservoir, clean the oil, and replace the filter. If these steps don't resolve the issue, repair or replace components as necessary and check the system pressure. Remember to return the control valve to neutral when not in use to allow it to cool down.
N
Nancy SmithAug 9, 2025
What to do if Superwinch SI Other system operates erratically?
- S
  Sandra WardAug 9, 2025
  If the Superwinch Other system operates erratically, several issues could be the cause. First, if there's air in the system, refer to the manufacturer's specifications for the hydraulic pump. Also, drain the oil and replace the filter, checking for leaks. Replace any damaged hoses and change the oil. Ensure all components, especially the relief valve, are set correctly. Check the suction side of the system for leaks and repair them. Allow the system a warm-up period. Clean or repair components as necessary, and clean or replace elements or lines. Allow the oil to warm up before operating, or change the oil to a proper viscosity. Increase engine speed, referring to the pump owner’s manual. Finally, check the reservoir and add oil as necessary.
J
John MartinezAug 15, 2025
Why is the oil foaming in my Superwinch SI?
- S
  Scott BatesAug 15, 2025
  If the oil in your Superwinch Other system is foaming, it could be due to incorrect, dirty, or low oil levels. Clean any dirt and mud from the oil cooler and other components. Replace, clean, or add oil as needed. Also, tighten all fittings and check them.
D
Daniel FordAug 21, 2025
What to do if the load moves with control valve in neutral on Superwinch Other?
- J
  Jacqueline PattersonAug 22, 2025
  If the load moves with the control valve in neutral on your Superwinch Other, check for spool binding and repair it, as the control valve may not be centering when released.
A
Aaron PayneAug 27, 2025
Why is the control valve binding on my Superwinch SI Other?
- J
  jeremiah89Aug 27, 2025
  If the control valve on your Superwinch Other is binding, it could be due to several reasons. The valve linkage may be misaligned, requiring repair, or the valve may be damaged and need replacement. Check the mounting, referring to the winch mounting page. Also, check the shuttle valve operation, inspect the hose for leakage, and check the port for blockage. Disassemble and inspect the brake. Verify the flow rate, consulting the hydraulic systems flow spec page. Finally, ensure the pressures are high enough to release the brake.

Summary

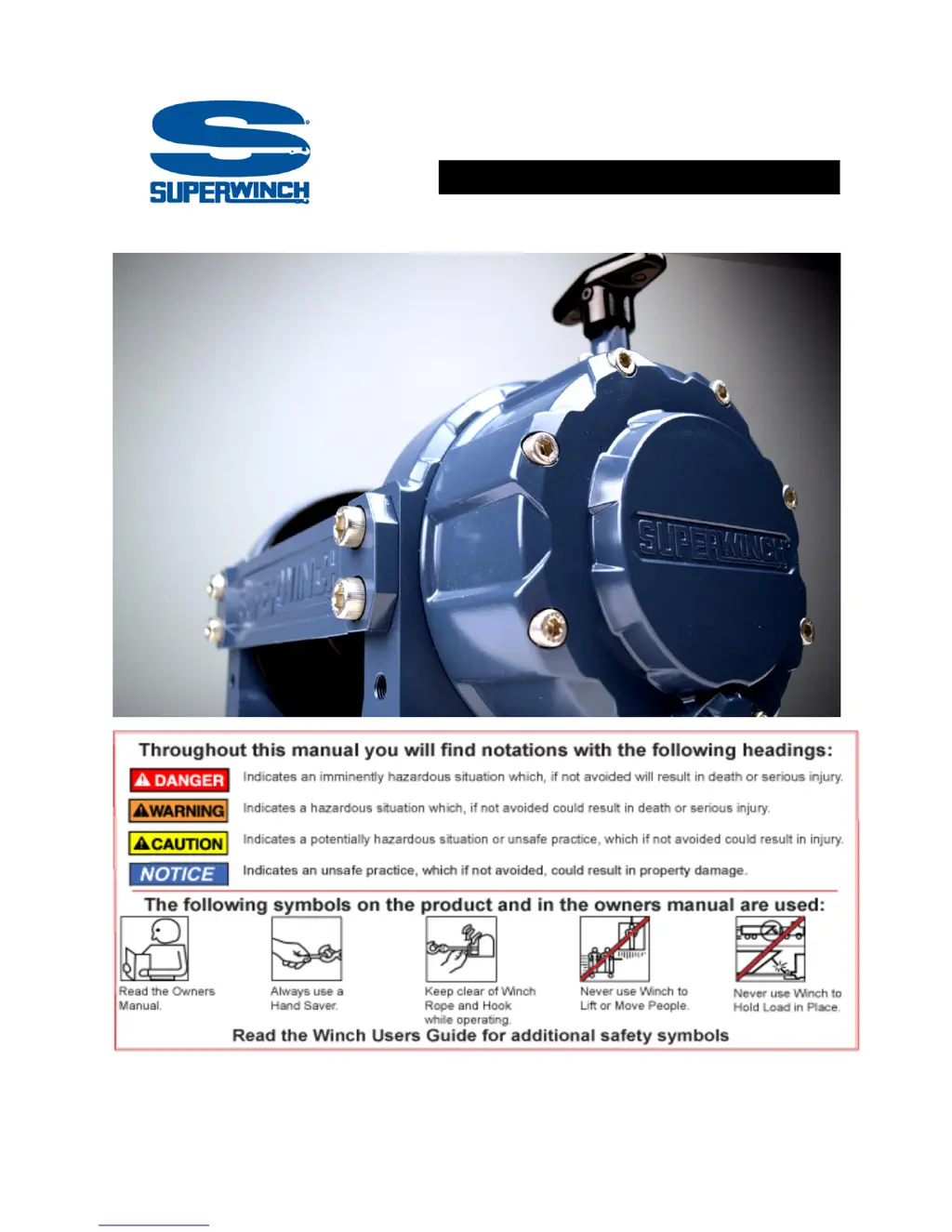

Safety Precautions and Warnings

Understanding Safety Headings

Explains the meaning of DANGER, WARNING, CAUTION, and NOTICE headings used in the manual.

Understanding Safety Symbols

Details the purpose of common safety symbols found on the product and in the manual.

Key Safety Warnings and Notes

Reinforces DANGER, WARNING, CAUTION, NOTICE headings and common safety symbols.

Usage Limitations and Disclaimers

Clarifies winch limitations, such as not being designed for hoisting applications.

Health and Environmental Precautions

Hazardous Substances and Materials

Provides warnings regarding poisonous substances like hydraulic oil and handling synthetic rubber.

Environmental Responsibility for Oil Disposal

Outlines legal requirements and safe practices for disposing of used oil.

General Specification Data

Standard Drum Model Specifications

Lists part numbers, weight, rope capacity, and performance specs for standard drum models.

Long Drum Model Specifications

Lists part numbers, weight, rope capacity, and performance specs for long drum models.

Short Drum Model Specifications

Lists part numbers, weight, rope capacity, and performance specs for short drum models.

Hydraulic System

Hydraulic System Recommendations

Recommends components like pump, reservoir, hoses, and control valve for optimal performance.

Hydraulic System Installation

Provides guidance on installation, emphasizing hose length and system cleanliness.

Winch Installation

Winch Mounting Guidelines

Details mounting dimensions and secure mounting advice for SI Series winches.

Winch Mounting Dimensions and Checks

Covers mounting dimensions, foot down precautions, and post-mounting checks.

Operation and Maintenance

Rope Installation Procedures

Step-by-step instructions for correctly installing wire and synthetic winch rope.

Freespool Operation

Explains how to engage and disengage the freespool and provides usage cautions.

Tips for Extending Winch Life

Offers advice on rope winding, heavy load handling, and pulling techniques.

Maintenance and Servicing

Covers lubrication requirements and essential maintenance checks.

Troubleshooting

Hydraulic System Troubleshooting

Diagnoses common hydraulic system issues like inoperability, erratic, or slow operation.

Advanced Hydraulic Troubleshooting

Addresses overheating, foaming oil, control valve binding, and slow winch operation.

Accessories and Warranty

Available Accessories

Lists accessories such as Pulley Block, Roller Fairlead, Cable Tensioner, and Clutches.

Warranty Information

Details warranty coverage, performance procedures, exclusions, and legal rights.

Warranty Details and Exclusions

Provides comprehensive warranty terms, limitations, and buyer recourse.

Superwinch SI Series Specifications

General

Type	Electric Winch
Series	SI Series
Voltage	12V DC
Gear Type	3-Stage Planetary
Control	Remote Switch
Rope Type	Steel Cable or Synthetic Rope (depending on model)
Warranty	Limited Lifetime Warranty
