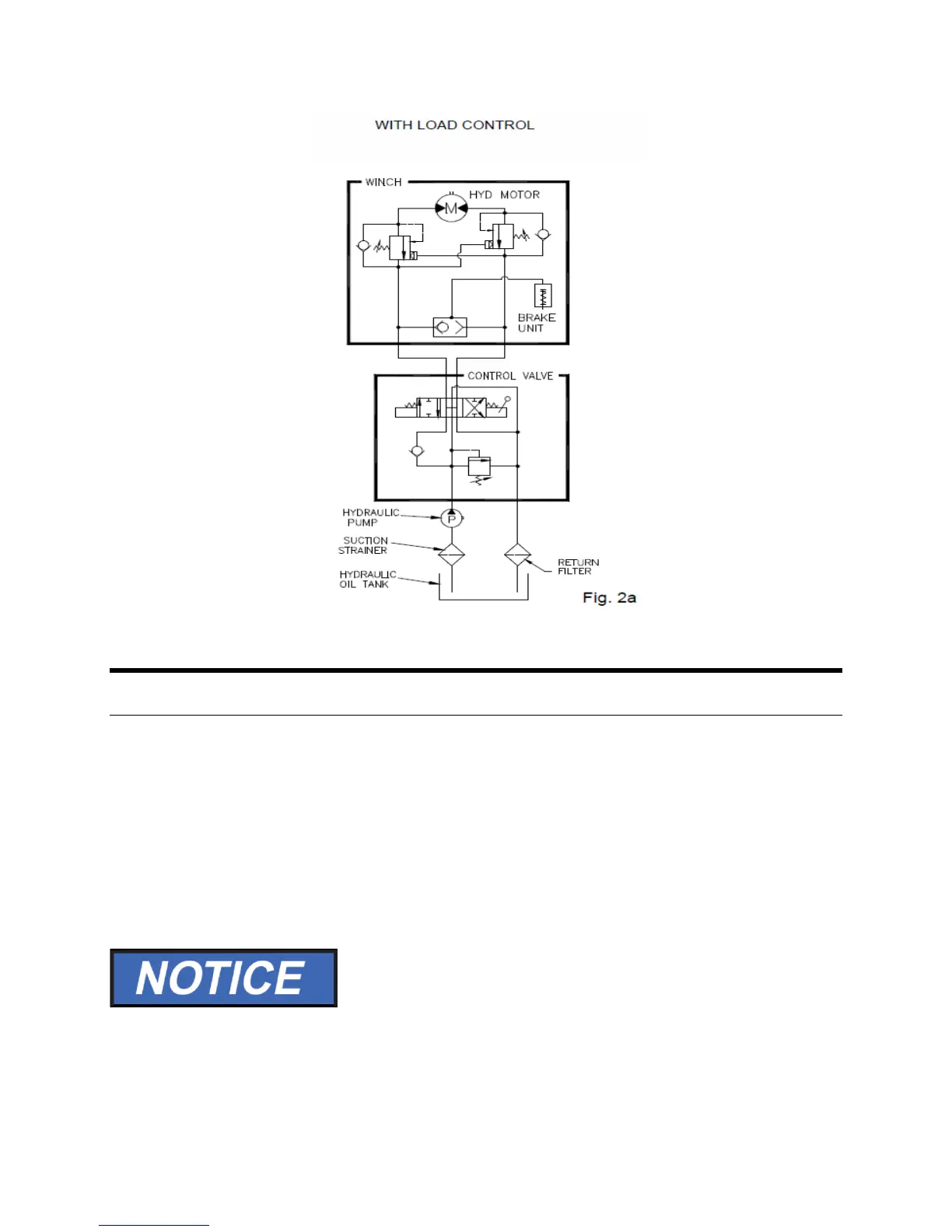

S101622 Rev. 1 superwinch.com | info@superwinch.com 8
4. WINCH INSTALLATION
MOUNTING
The figures below show the mounting dimensions for the Hydraulic Superwinch SI 8,000
& 10,000. The Superwinch SI Series can be mounted foot down (see below) or in a traditional
foot-forward stance.
Due to the rating of these winches:
Insure mountings are secure.
Use only included hardware: M12 X 1.25 Grade 8 high tensile steel bolts
Remember that the winch is only as strong as the plate and hardware it is mounted to.
Important: All eight mount holes should be used. Use only the
threaded holes provided, DO NOT drill and tap new holes in the
winch. DO NOT weld the winch or any parts of the winch to the
mounting plate.
