1 12 VDC Motor EP/EPi6.0 90-30500 1
24 VDC Motor EP/EPi6.0 90-30501 1
12 VDC Motor EP/EPi9.0 90-30502 1
24 VDC Motor EP/EPi9.0 90-30503 1
2 Motor Support Rack 90-40500 1
3 Gear Support Rack 90-40501 1
4 Drum Bushing 90-14500 1
5 Drum (3" diameter on 09332 and 09334 only) 90-30519 1
Drum 90-30517 1
6 Gear Box 90-30504 1
7 Connecting Socket 90-20500 1
8 1st Shaft 90-20501 1
9 1st Pinion 90-20502 1
10 1st Stage Carrier 90-30505 1
11 1st & 2nd Ring Gear 90-30506 1
12 2nd Stage Carrier 90-30507 1
13 3rd Stage Carrier 90-30508 1
14 3rd Ring Gear 90-30509 1
15 3rd Washer 90-20503 1
Freespool Assembly 90-20504
16 Clutch Sleeve
17 Clutch Lever
18 Pressed Spring
19 Clutch Knob
38 Spring Pin
Brake Assembly 90-30510
20 Brake Clutch Base
21 Brake Cam
23 Cone Brake Disc
24 Spiral Spring
25 Brake Cover
27 Bearing
35 C-Rings (2 per assembly)
Hardware Kit 90-14501
29 Hex. Bolt (6 per kit)
30 Hex. Bolt (3 per kit)
31 Hex. Bolt
32 Hex. Bolt
33 Hex. Bolt
26 Bearing 90-20513 1
36 C-Ring (2 included) 90-14502 1
37 Anit-leak Seal (2 included) 90-20505 1
40 Wire Rope - 21/64” x 100’ (non CE) 90-20506 1
41 Roller Fairlead 90-30511 1
43 Clevis Hook (non-CE versions only) 90-20507 1
44 Remote Switch Assembly 90-33450-01 1
45 Handsaver Strap 87-31120 1
46 Snatch Block 90-20508 1
47 Remote Switch Socket 90-25048-01 1
48 Upper Solenoid Box 90-41144 1
49 Solenoid 12V 90-14452 1
Solenoid 24V 90-14454 1
50 Solenoid Mounting Plate 90-24051 1
51 Lower Solenoid Box 90-41145 1
53 Motor Lead Wire and Buss Bar Set 90-00000 1
55 Tie Bar 90-20509 1
56 Tie Bar Screw 90-14504 1
57 Spring Washer 90-14505 1
∆ Mounting Hardware 90-14503 1
∆ Not Shown
REPLACEMENT
PARTS LIST
Reference
Number Description Part Number Qty

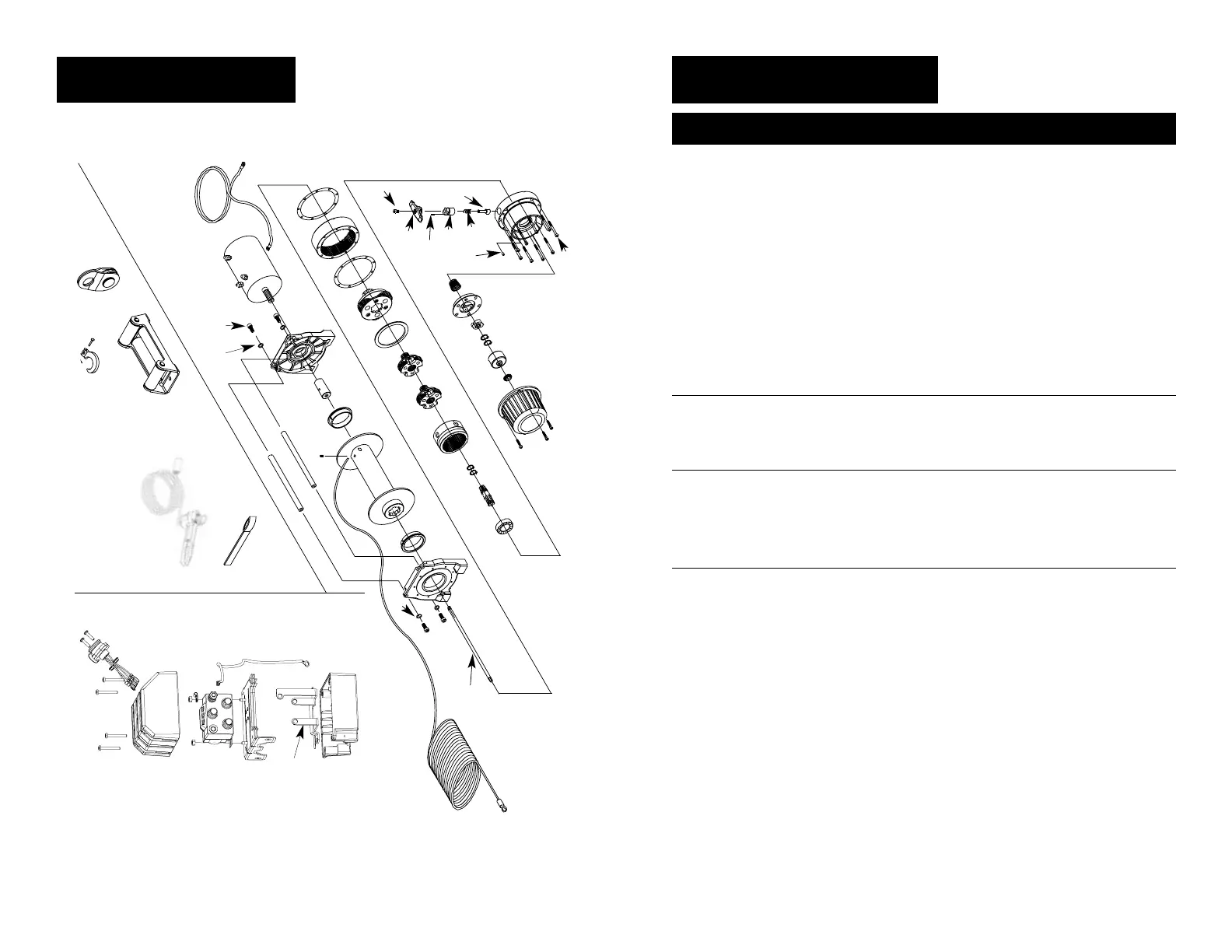

EP SERIES WINCH
ASSEMBLY
Figure 13
12
13
8
3
4
5
4
2
57
1
53
46
43
41
45
55
13
12
10
11
36
27
20
35
21
23
24
19
16
18
14
38
40
44
56
7
57
9
26
15
37
37
31
17
33
29
47
48
49
50
51
53
6
25
