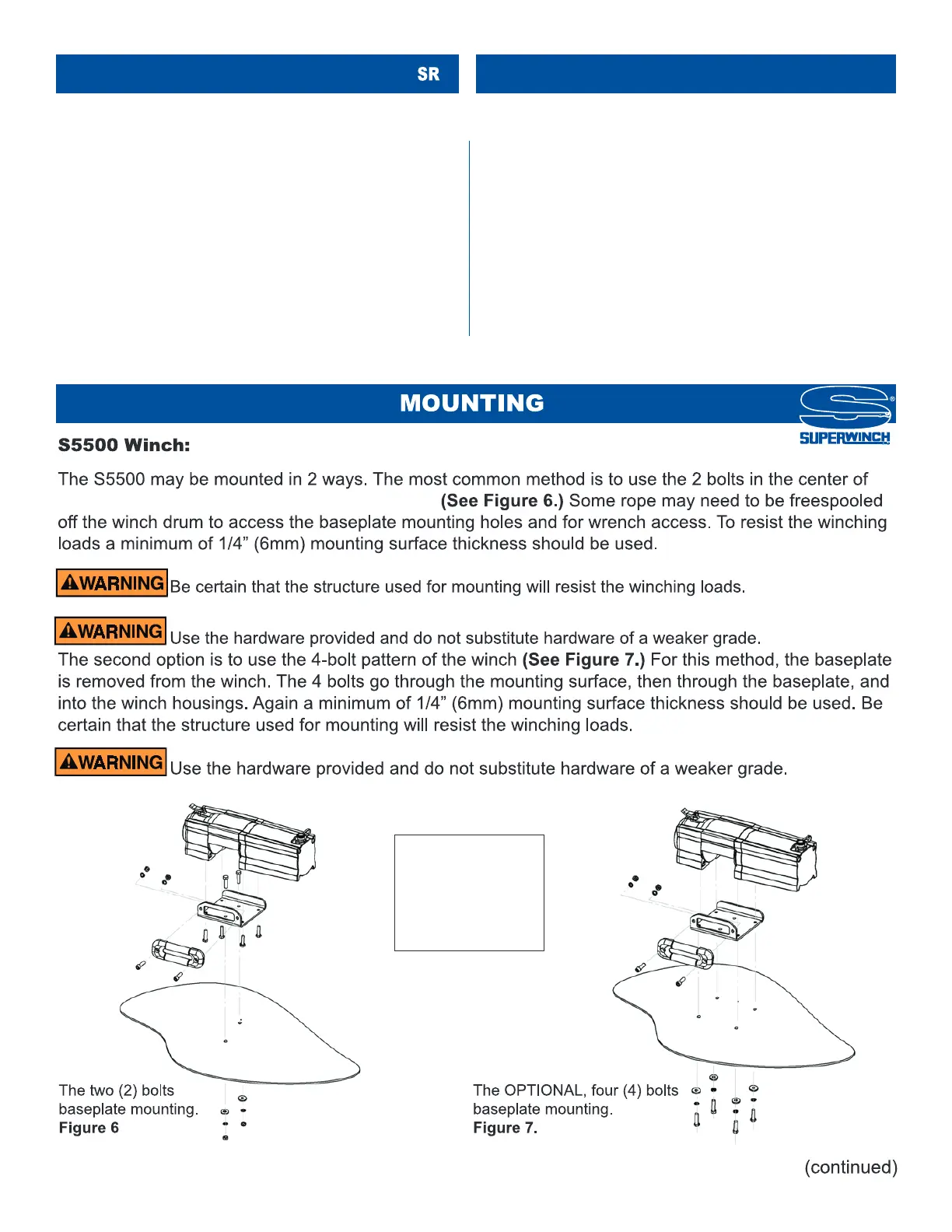

Superwinch S5500 - Winch Mounting Procedures; S5500 Winch Mounting

the baseplate to mount the unit to a Àat surface.
.
SpeciÀcations 12 V and 24 V S5500, S5500
Working Load: 5,500 lbs (2495 kg)
Motor: 3.6 hp (2.7 kW)
Gear Ratio: 185:1
Freespool Clutch: Lever Action
Drum Barrel Diameter: 2.5” (63.5 mm)
Drum Length: 4.87” (123.7 mm)
Wire Rope: 9/32” X 60’ (7.1 mm X 18.3 m)
Synthetic Rope: ¼” X 60’ (6.4 mm X 18.3 m)
Installed Weight with Wire Rope: 51 lbs. (23.1 kg)
Installed Weight with Synthetic Rope: 42 lbs. (19.0 kg)
Switching Method: Sealed Handheld Rocker Switch
Fairlead: Roller Hawse™
Working Load: 7,500 (3402 kg)
Motor: 3.6 hp (2.7 kW)
Gear Ratio: 249:1
Freespool Clutch: Lever Action
Drum Barrel Diameter: 2.5” (63.5 mm)
Drum Length: 4.87” (123.7 mm)
Wire Rope: 5/16” X 55’ (7.9 mm X 16.8 m)
Synthetic Rope: 5/16” X 55’ (7.9 mm X 16.8 m)
Installed Weight with Wire Rope: 55 lb (24.9 kg)
Installed Weight with Synthetic Rope: 46 lbs (20.9 k g)
Switching Method: Sealed Handheld Rocker Switch
Fairlead: Roller Hawse™
SpeciÀcations 12 V and 24 V S7500, S7500 SR
5
Using the supplied M10
mounting bolts, washers,
and nuts, tighten the
mounting and
Roller-Hawse fairlead
hardware
to 32 ft-lb (43 N-m).
